Control Module Outputs



Control Module Outputs

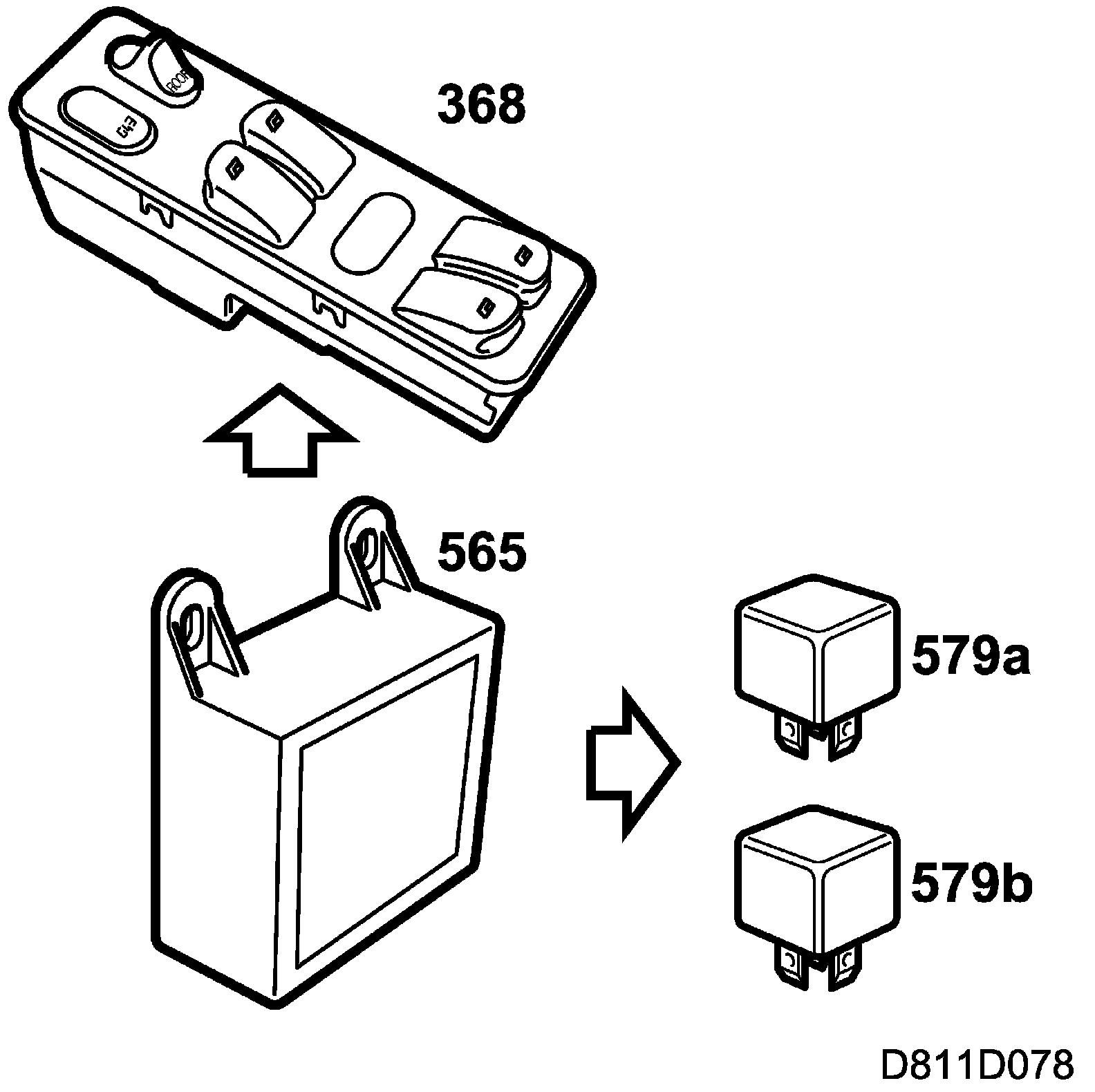

- Pump relay, push (579a).
- Pump relay, pull (579b).
- Power supply, switch panel (386).
