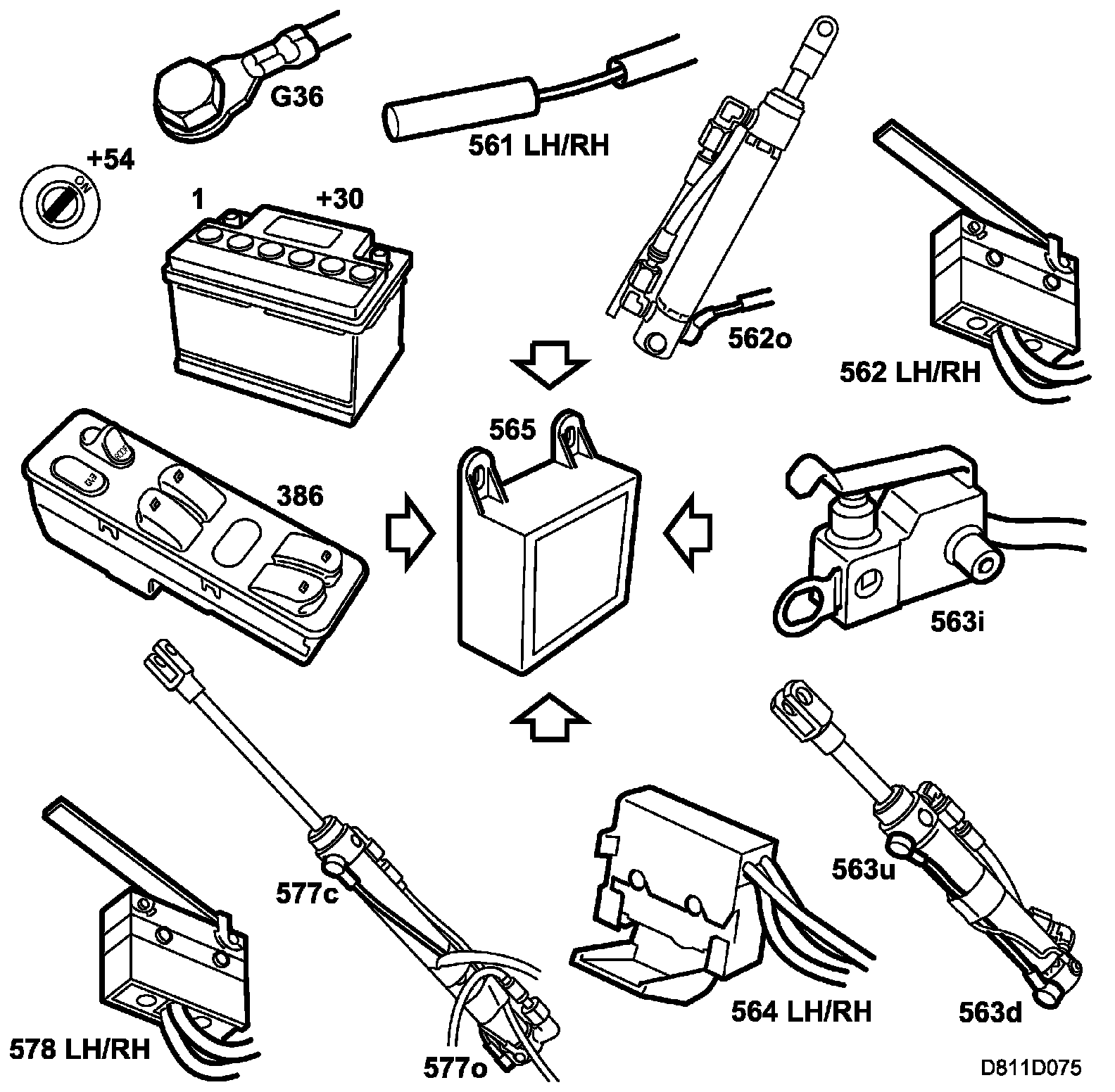

Control Module Inputs

Control Module Inputs







- Power supply +54 (20).
- Power supply +30 (1).
- Control module ground (G36).
- Switch in main sequence hydraulic cylinder (577c, 577o).
- Switch in fifth bow hydraulic cylinder (563i, 563u).
- Switch in soft top cover hydraulic cylinder (562o).
- Switch in windscreen frame (561LH, 561RH).
- Microswitch, fifth bow intermediate position (563d).
- Microswitch, soft top cover latch (562LH, 562RH).
- Microswitch, fifth bow latch (578LH, 578RH).
- Microswitch in soft top storage (564LH, 564RH).
- ROOF switch (317).
- Switch, all windows up/down (514b).
- Switch, front right window lift (386).
- Switch, front left window lift (386).
- Switch, rear left window lift (386).
- Switch, rear right window lift (386).
