Control Module Ground



Control Module Ground

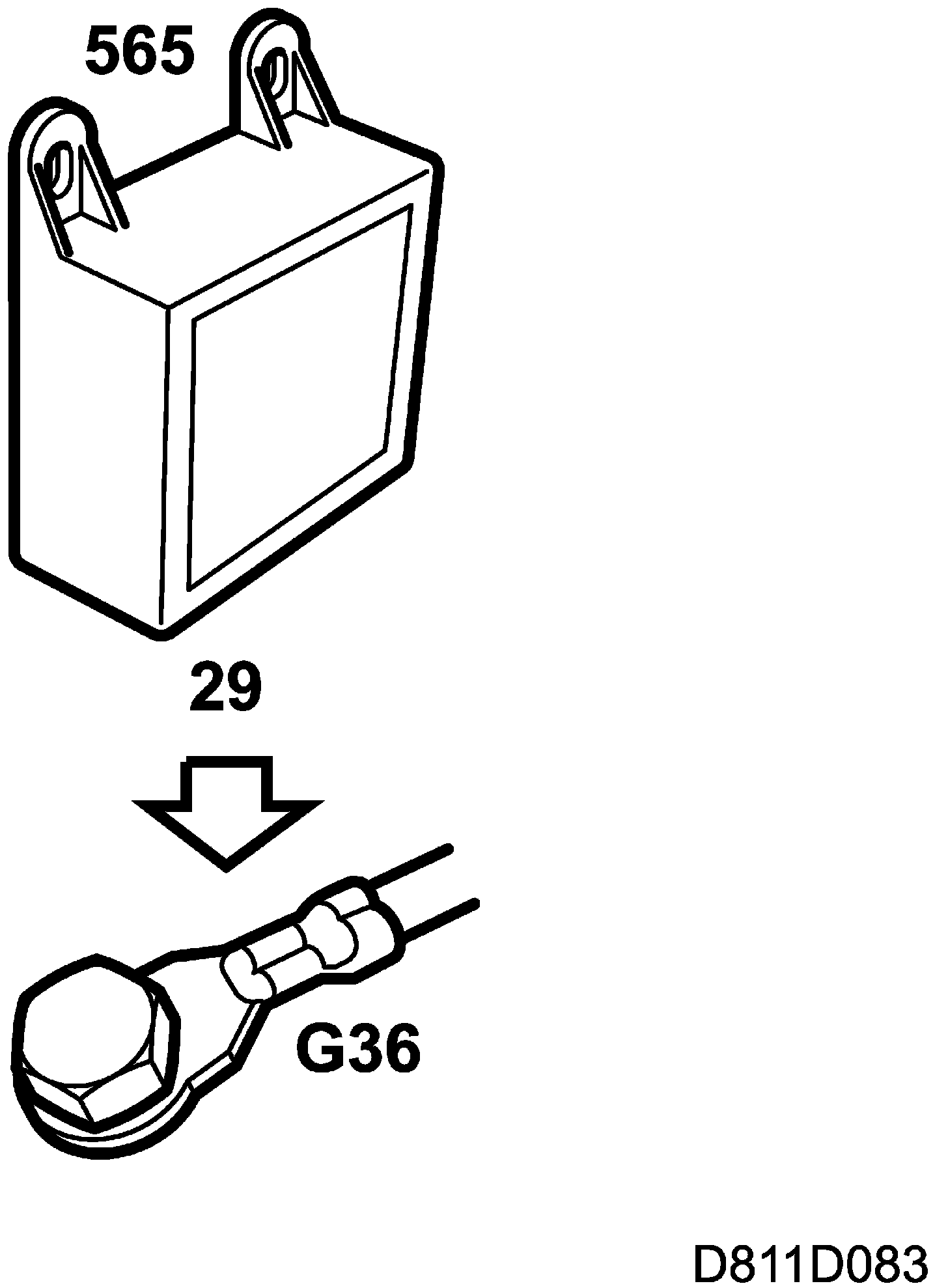

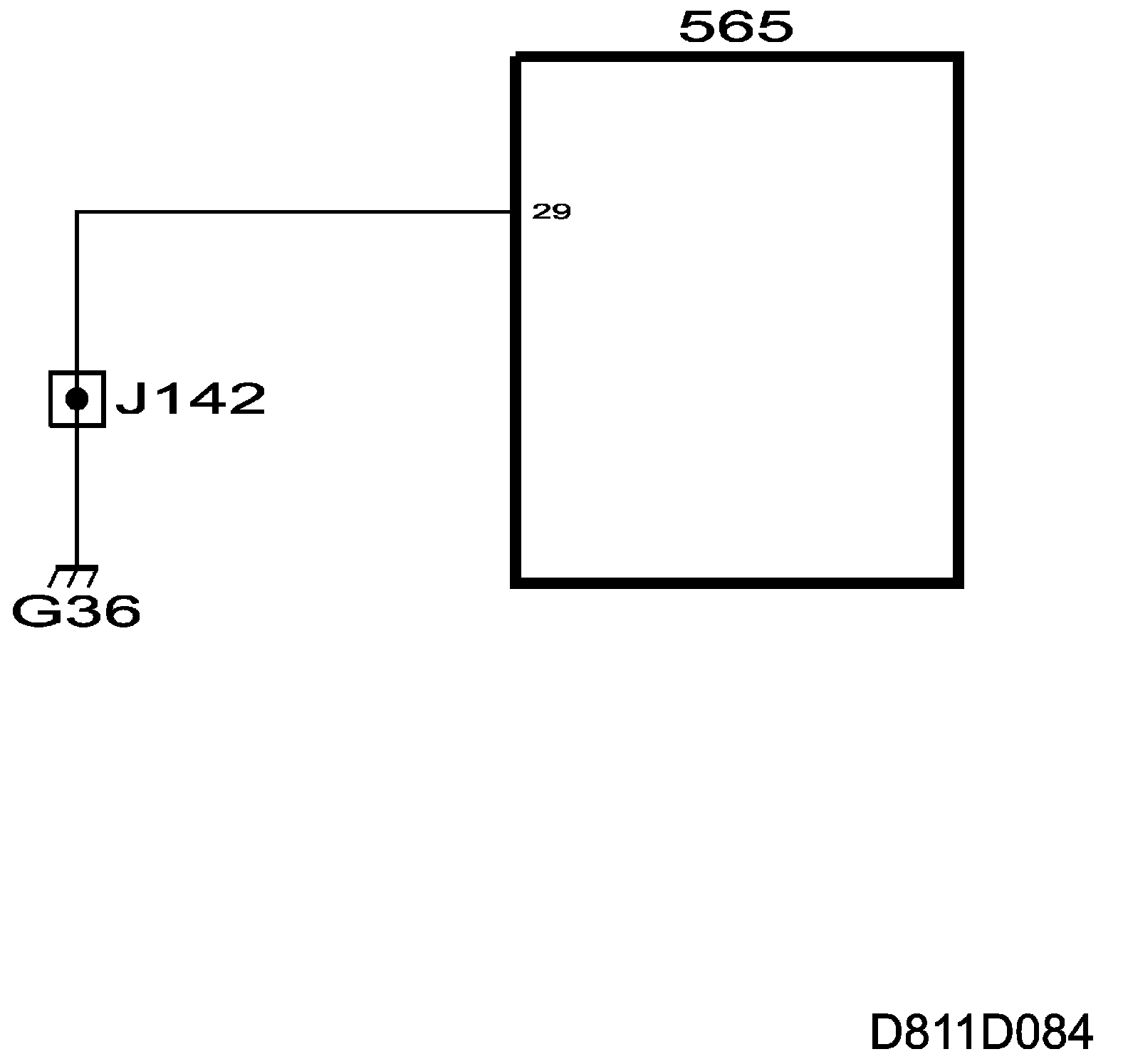

The control module is grounded through pin 29 in grounding point G36.This grounding point is common to, among other, microswitches, switches and hydraulic valves through crimp J142.










Diagnostics
If ground is missing for the control module, it is impossible to operate the soft top. Diagnostic trouble code B1605 is generated.
