Alarm Module: Service and Repair

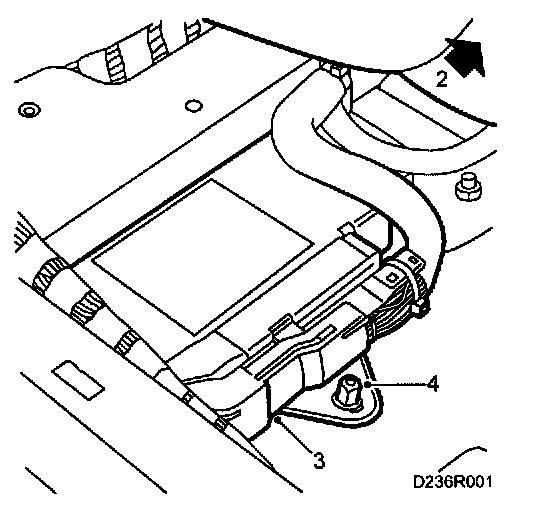

To remove

Control Module:

1 Undo and lift out the left-hand front seat.
2 Detach and fold away the carpet. (3D: the belt guide must be detached first.)
3 Unplug the connector to the electronic control module.
4 Unscrew 1 nut and lift away the control module.

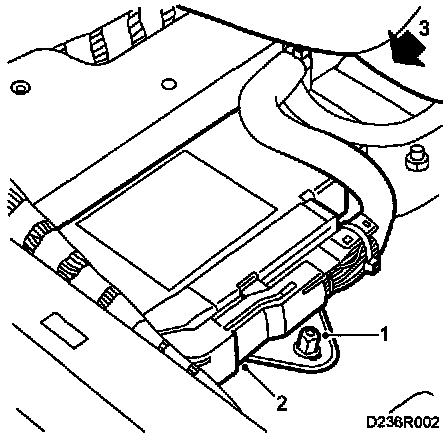

To fit






1 Fit the control module and screw it down.
2 Plug in the connector to the control module.
3 Replace the carpet. (3D: fit the belt guide.)
4 Refit the front seat.

After changing the TWICE control module, it must be programmed in the car. See "Spare Part Programming".
