Throttle Position Sensor - Trionic T5

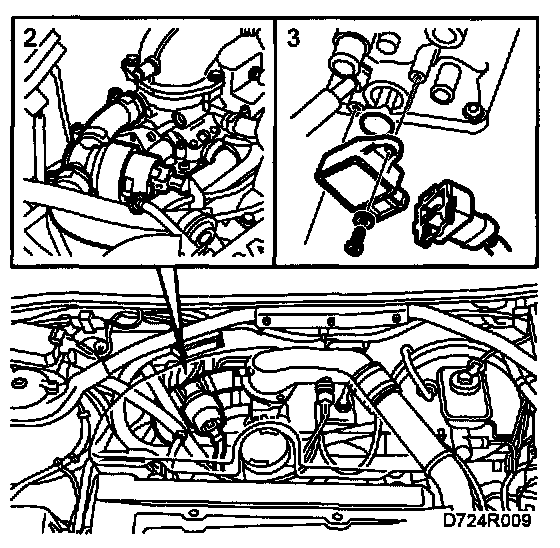

To remove







1 Remove the engine cover.
2 Detach the idle speed control valve with hoses.
3 Unplug the connector, remove both retaining bolts and remove the sensor. Note the O-ring.

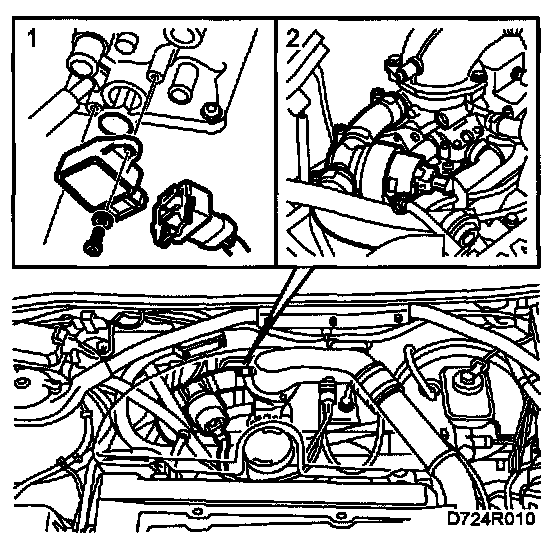

To fit







1 Make sure the O-ring is seated correctly and position the sensor on the throttle spindle. Tighten the retaining bolts.
2 Plug in the connector and fit the idle speed control valve.
3 Fit the cover.
