Manifold Absolute Pressure Sensor - Trionic T5 OBDII

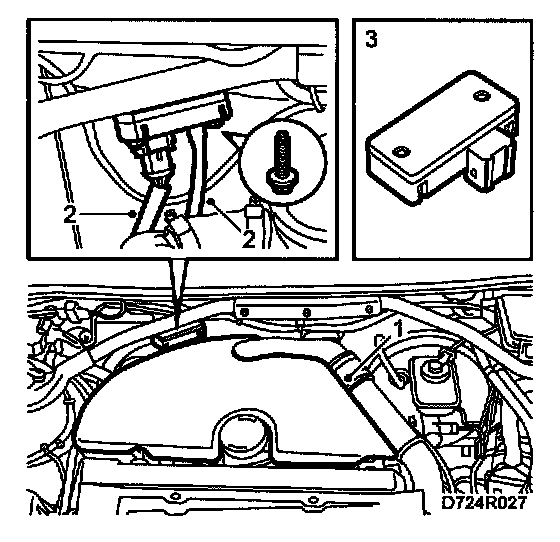

To remove







1 Remove the engine cover.
2 Unplug the connector and detach the hose from the sensor.
3 Remove the pressure sensor.

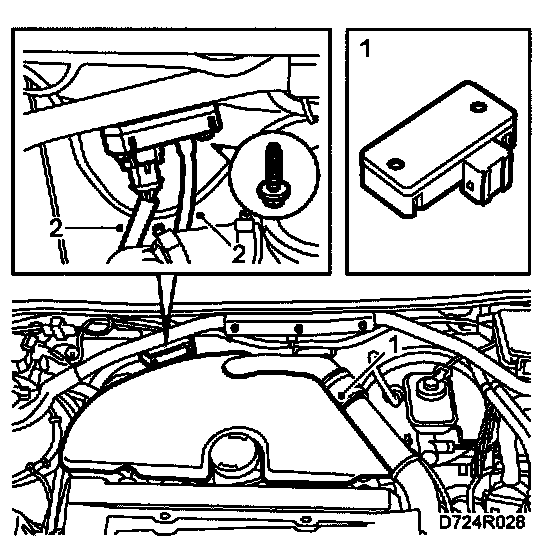

To fit







1 Fit the pressure sensor.
2 Plug in the connector and connect the hose to the pressure sensor
3 Fit the engine cover.
