Trionic T7, 4-Cyl

To remove







1 Unplug the 10-pin ignition discharge module connector.
2 Remove the 4 screws.
3 Lift up the module.

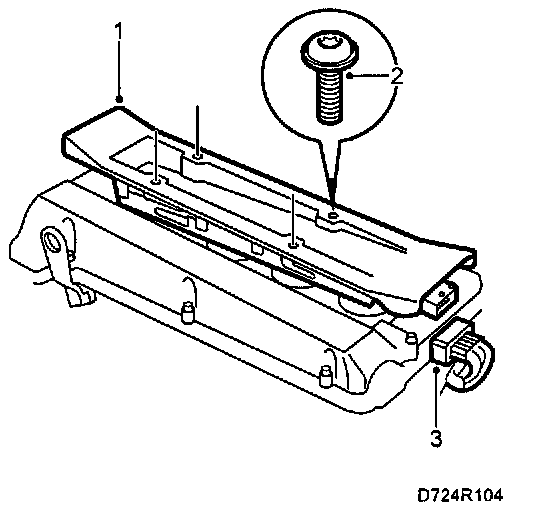

To fit







1 Apply Krytox (pan no.30 19 312) to the rubber seals and fit the ignition discharge module.
2 Fit the 4 screws.

Tightening torque 11 Nm (8.1 lbf ft)


3 Spray the 10-pin ignition discharge module connector with Kontakt 61 (part no.30 04 520). Plug in the connector.
