Ignition Discharge Module, Replace Spring - Trionic T5

To remove

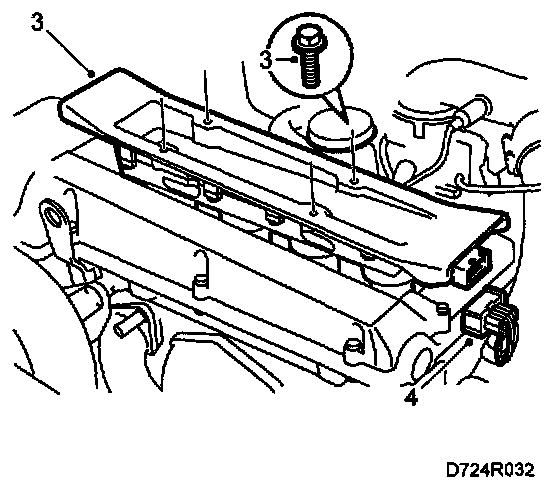

1 Unplug the connector.
2 Remove the 4 bolts.
3 Lift up the module.
4 Turn the ignition discharge module upside down and remove the 8 screws.







5 Lift off the black lower section of the ignition discharge module.
6 Change the spring by prising out the old one with a screwdriver.

To fit







1 Fit the spring.
2 Fit the black lower section of the ignition discharge module and tighten the screws.
3 Fit the module on the engine and tighten the screws.







Tightening torque: 11 Nm (8.1 lbf ft)
