Ignition, Basic Function

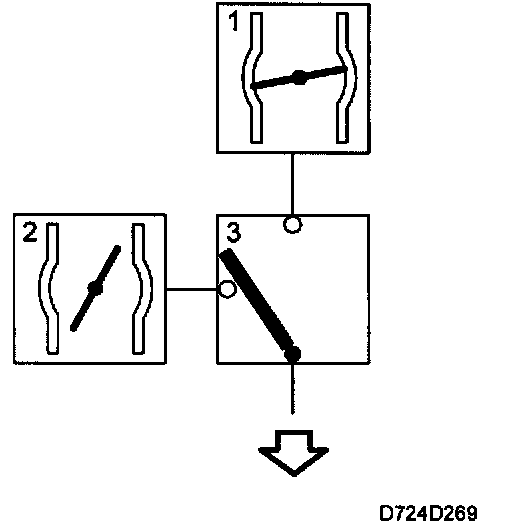

1 Idling speed ignition timing







With idle speed control active, the timing is adjusted to stabilize the idling speed. The value is sent to box 3.

2 Normal ignition timing
When idle speed control is inactive, the ignition timing is read from a load and engine speed dependent matrix. The value from the matrix is optimized for the lowest fuel consumption (best engine torque). The value is sent to box 3.

3 Selection of ignition timing
One of the ignition timing calculations is selected depending on which function is active. The value is sent to box 6.

4 Compensation







The ignition timing is corrected depending on the engine coolant temperature and intake air temperature. The value is sent to box 6.

5 Knock control
If knocking occurs, a timing retardation will be calculated. The value is sent to box 6.

6 Total
The compensation angle and knock retardation are totalled to give the current ignition timing. The value is sent to box 7.

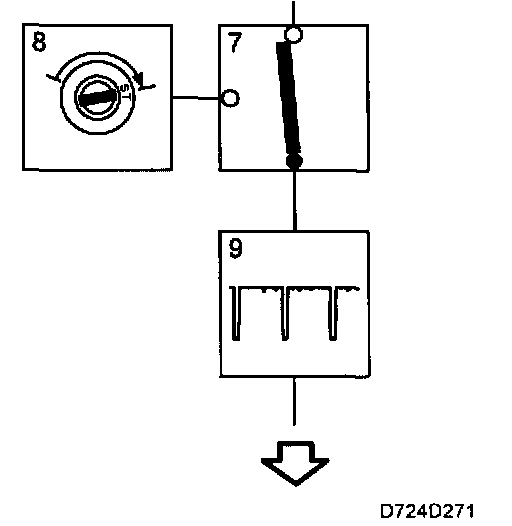

7 Selection of ignition timing







Starting ignition timing is selected when the engine has not yet been started. The value is sent to box 9.

8 Starting ignition timing
The starting ignition timing is calculated depending on the intake air temperature and the engine coolant temperature. The value is sent to box 9.

9 Activate relevant trigger
At the calculated crankshaft angle, the microprocessor controls the transistor for the trigger that is next in the firing order.
