Trionic T7 OBD II

To remove

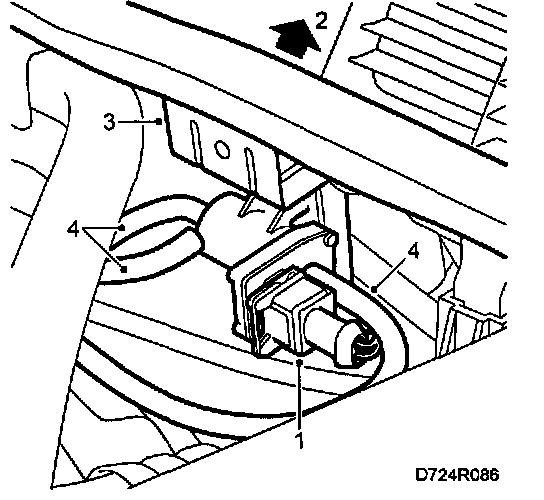

1 Unplug the two pin connector from the control valve.







2 Fold up the bonnet sealing strip by the control valve mounting plate.
3 Carefully pull out the mounting plate and unhook it from edge of the bulkhead. Lift up the unit.
4 Mark the vacuum hoses and detach them from the valve.

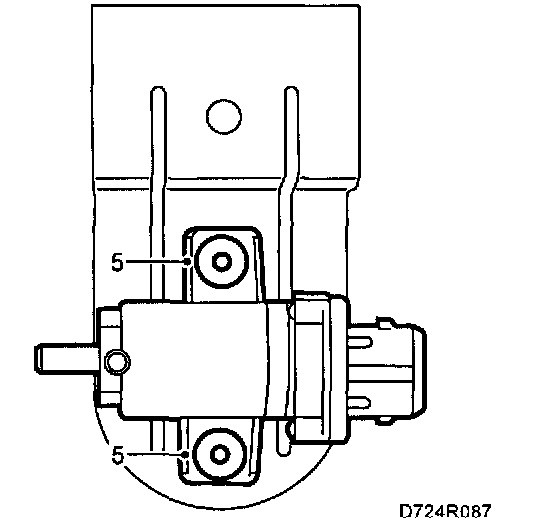

5 Drill out the pop rivets securing the control valve to the mounting plate.







To fit

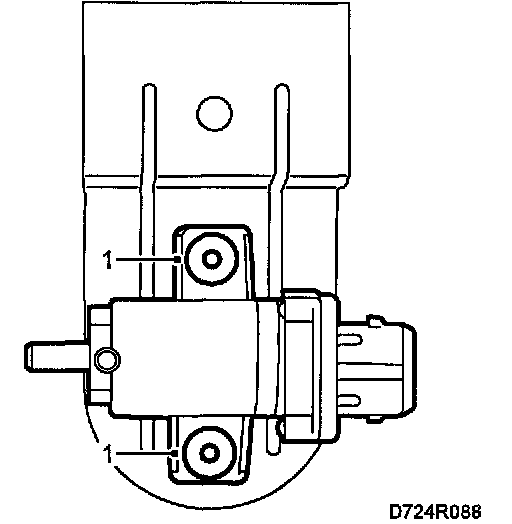

1 Fit a new valve to the mounting plate with pop rivets.

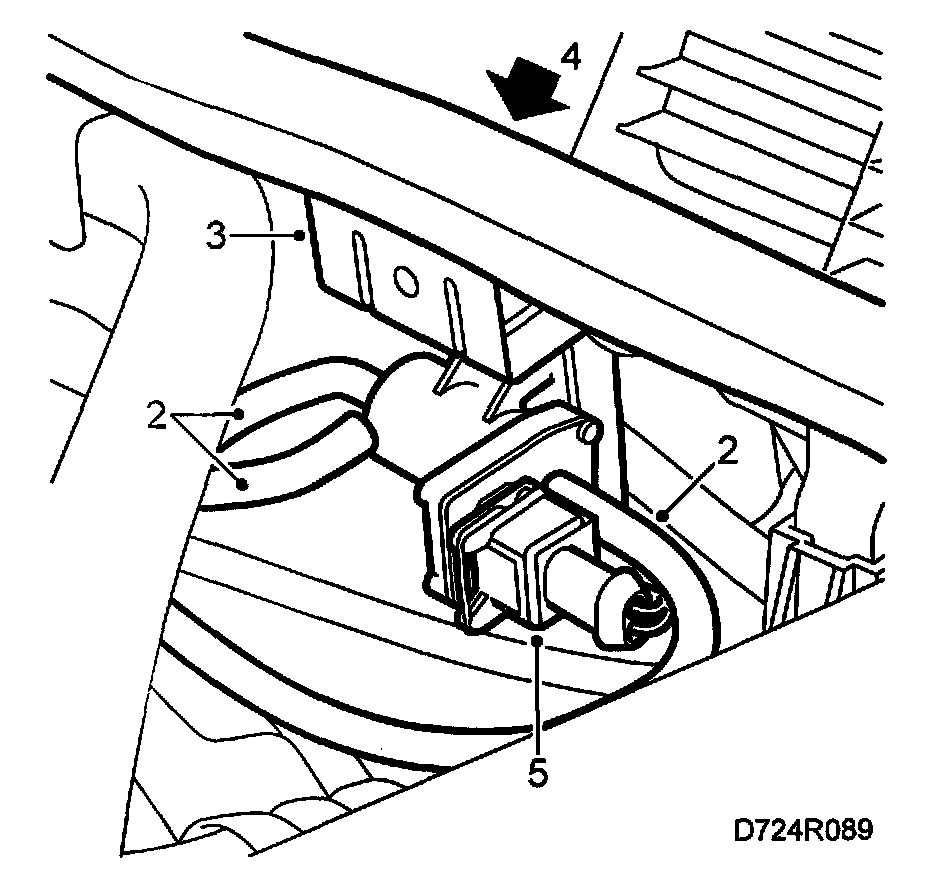

2 Connect the vacuum hoses to the valve.







3 Fit the mounting plate.
4 Fit the bonnet sealing strip.
5 Spray the two pin connector with Kontakt 61 (part no. 30 04 520) and plug it into the control valve.
