Temperature Sensor, Charge Air

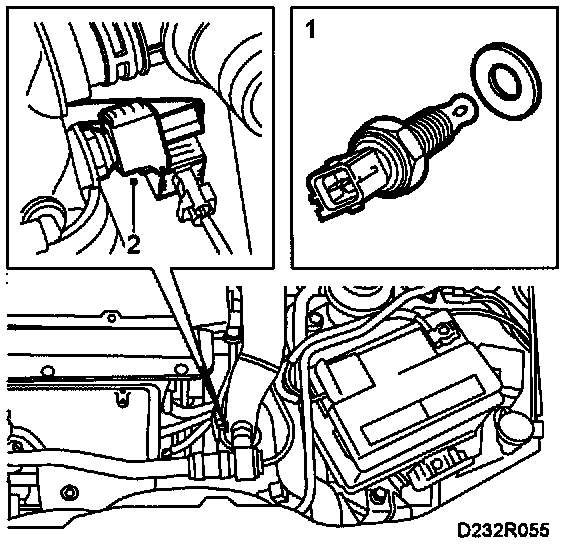

To remove







1 Unplug the connector from the temperature sensor on the turbo delivery pipe
2 Remove the temperature sensor.

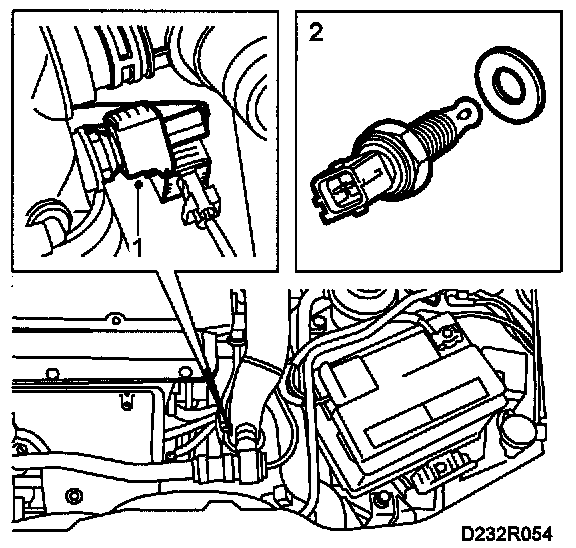

To fit







1 Fit the temperature sensor. If necessary, fit a new sealing washer
2 Spray the connector with Kontakt 61, part. no. 20 31 763, and plug it in.
