Trionic T7, 4-Cyl OBD II

To remove
1 Remove the cover on the knee protection.







2 Undo the screw securing the relay holder.
3 Tilt down the relay holder.

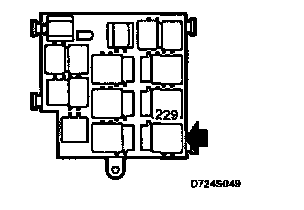

4 Remove the main relay.

To fit







1 Spray the connectors in the relay holder with Kontakt 61 (part no. 30 04 520) and fit the relay.
2 Tilt up the relay holder and fit the screw.
3 Fit the cover on the knee protection.
