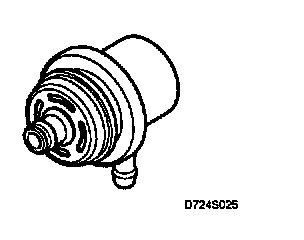

Pressure Regulator, Control Values

Fuel injection engine

Vacuum System pressure
0 bar 3.0 bar (43 psi)
- 0.2 bar (-2.9 psi) 2.8 bar (40 psi)
- 0.4 bar (-5.8 psi) 2.6 bar (37 psi)
- 0.6 bar (-8.6 psi) 2.4 bar (35 psi)

Turbo

Vacuum System pressure
0 bar 3.0 bar (43 psi)
- 0.2 bar (-2.9 psi) 2.8 bar (40 psi)
- 0.4 bar (-5.8 psi) 2.6 bar (37 psi)
- 0.6 bar (-8.6 psi) 2.4 bar (35 psi)

Pressure System pressure
0 bar 3.0 bar (43 psi)
+ 0.2 bar (-2.9 psi) 3.2 bar (46 psi)
+ 0.4 bar (-5.8 psi) 3.4 bar (49 psi)
+ 0.6 bar (-8.6 psi) 3.6 bar (52 psi)
