9-3 Convertible (9400) L4-2.0L Turbo (B204)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Locations
>>
Injector Cyl. 1/ Cyl. 2/ Cyl. 3/ Cyl. 4 - Trionic T5 OBDII
Injector Cyl. 1/ Cyl. 2/ Cyl. 3/ Cyl. 4 - Trionic T5 OBDII

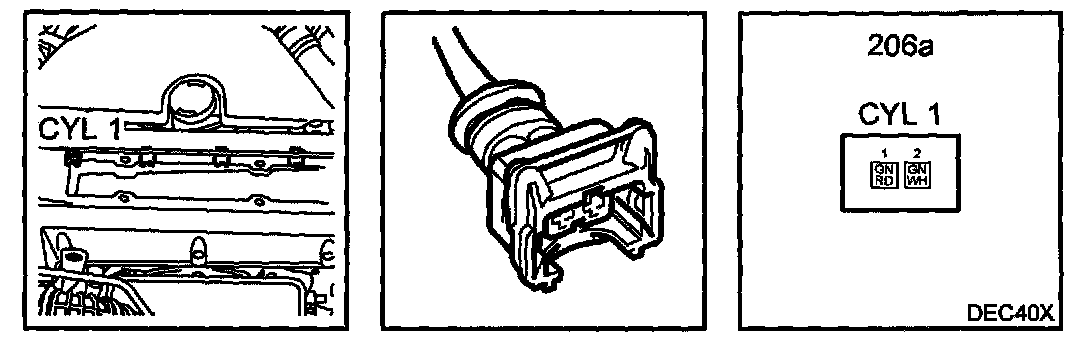

Injector Cyl. 1 (206a)

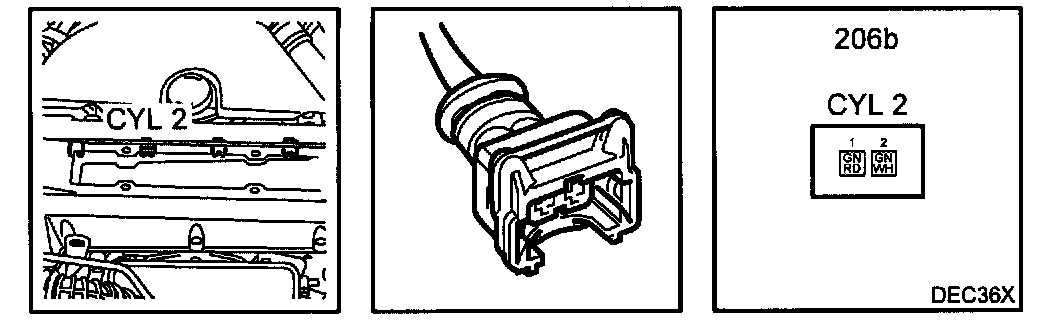

Injector Cyl. 1 (206b)

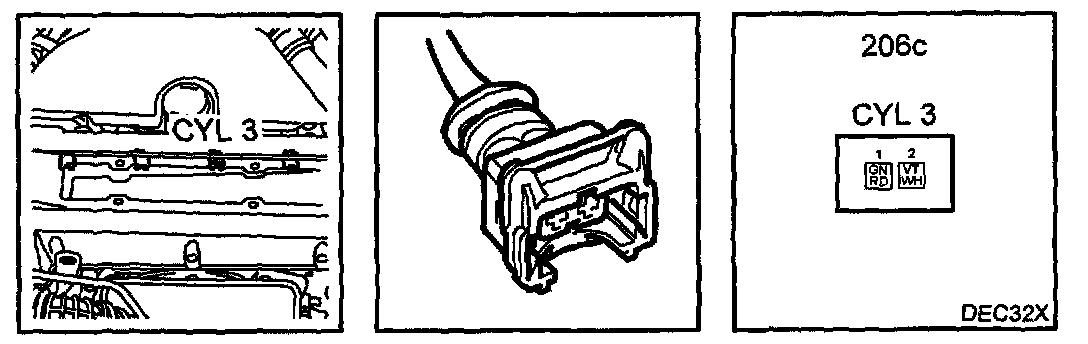

Injector Cyl. 1 (206c)

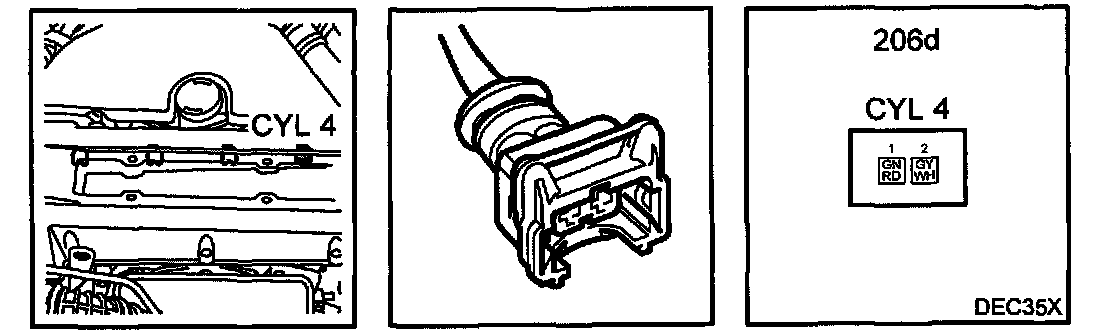

Injector Cyl. 1 (206d)
