Temperature Sensor, Charge Air

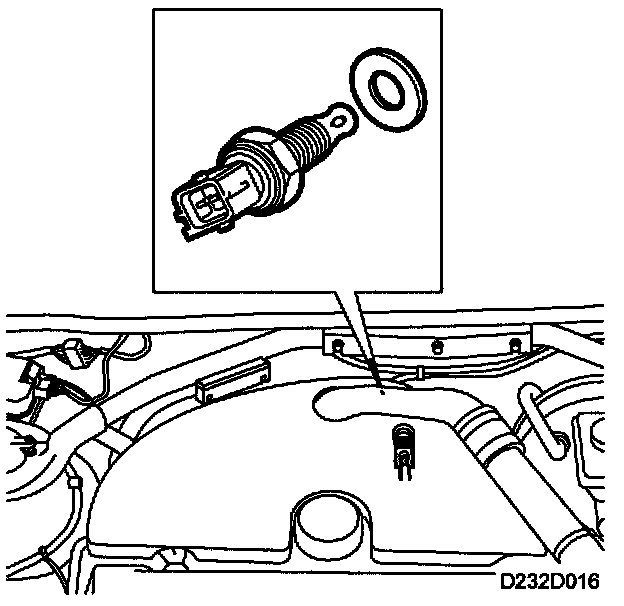

Temperature sensor, charge air (B204L/E/R)







Temperature sensor
The temperature sensor is mounted between the air cleaner and intake manifold. For further information on the temperature sensor, see "Computers and Control Systems".

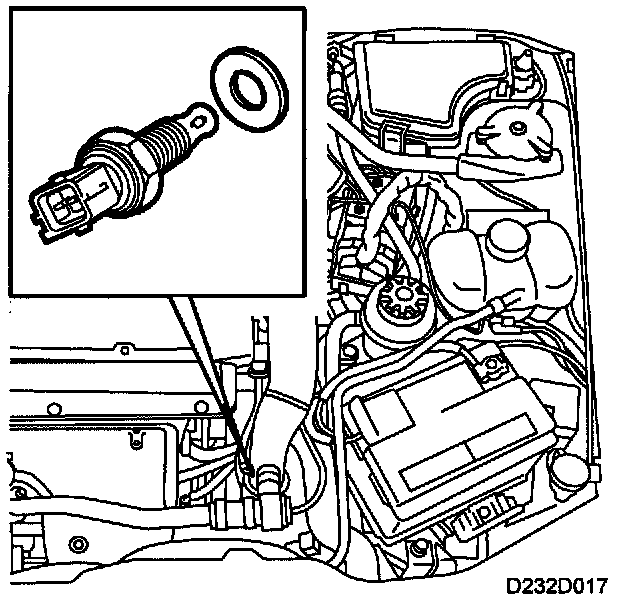

Temperature sensor, charge air (B235R)







Temperature sensor
The temperature sensor is mounted between the air Cleaner and intake manifold. For further information on the temperature sensor, see "Computers and Control Systems".
