Mass Air Flow Sensor

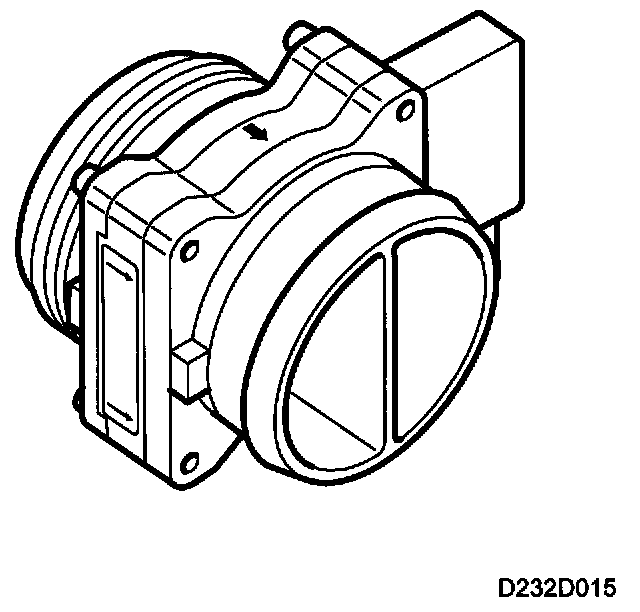

Mass air flow sensor (B204i)







Mass air flow sensor
The mass air flow sensor, which is of hot film type, is mounted between the air cleaner and the intake manifold. For further information on the mass air flow sensor, see "Computers and Control Systems".

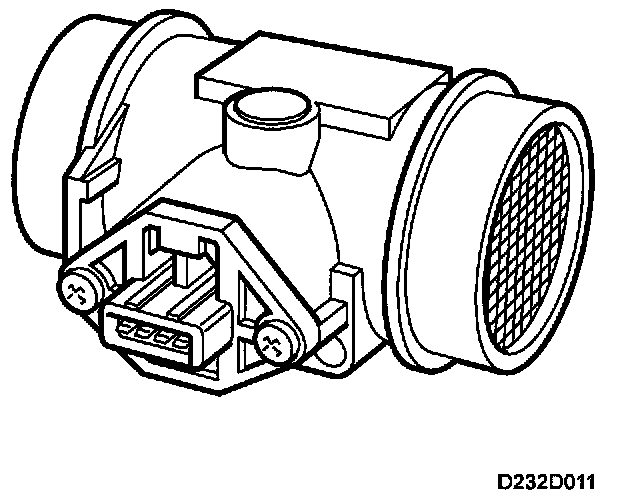

Mass air flow sensor (B235R)







Mass air flow sensor
The mass air flow sensor, which is of hot turn type, is mounted between the air cleaner and the intake manifold. For further information on the mass air flow sensor, see "Computers and Control Systems".
