EVAP Close Valve

To remove
1 Raise the car.

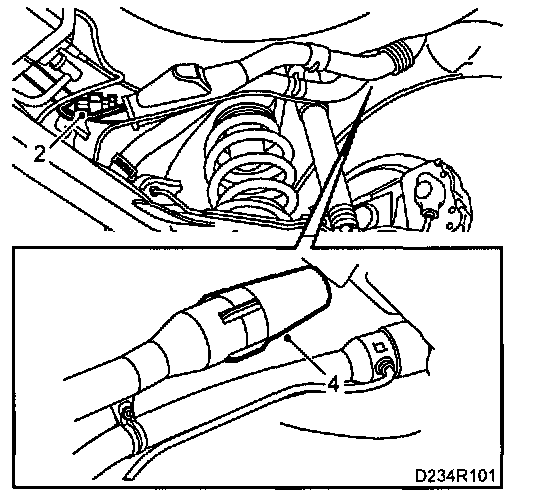

2 Detach the shut-off valve hose from the EVAP canister.
3 Lower the car slightly.
4 Blow clean and remove the white cap on the shut-off valve.
5 Unplug the connector and lift the valve upwards.







6 Detach the hose connection from the valve.
7 Remove the valve.

To fit

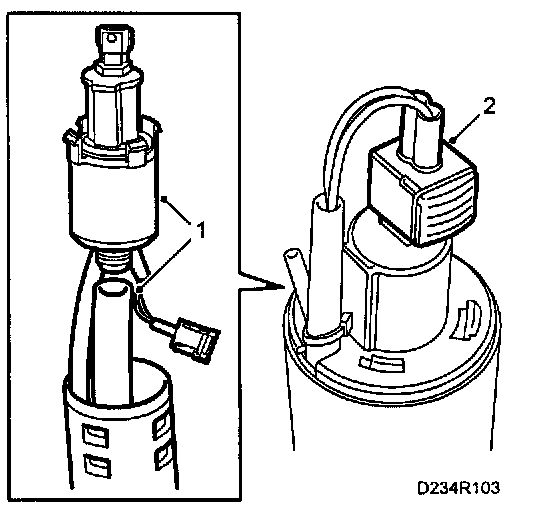

1 Connect the valve to the hose. Make sure that the opening for the cable is correctly positioned.
2 Spray with Kontakt 61 and plug in the connector.
3 Carefully insert the valve into the vent hose.


IMPORTANT
Be careful with the foam rubber filter so that it is not damaged or incorrectly positioned.

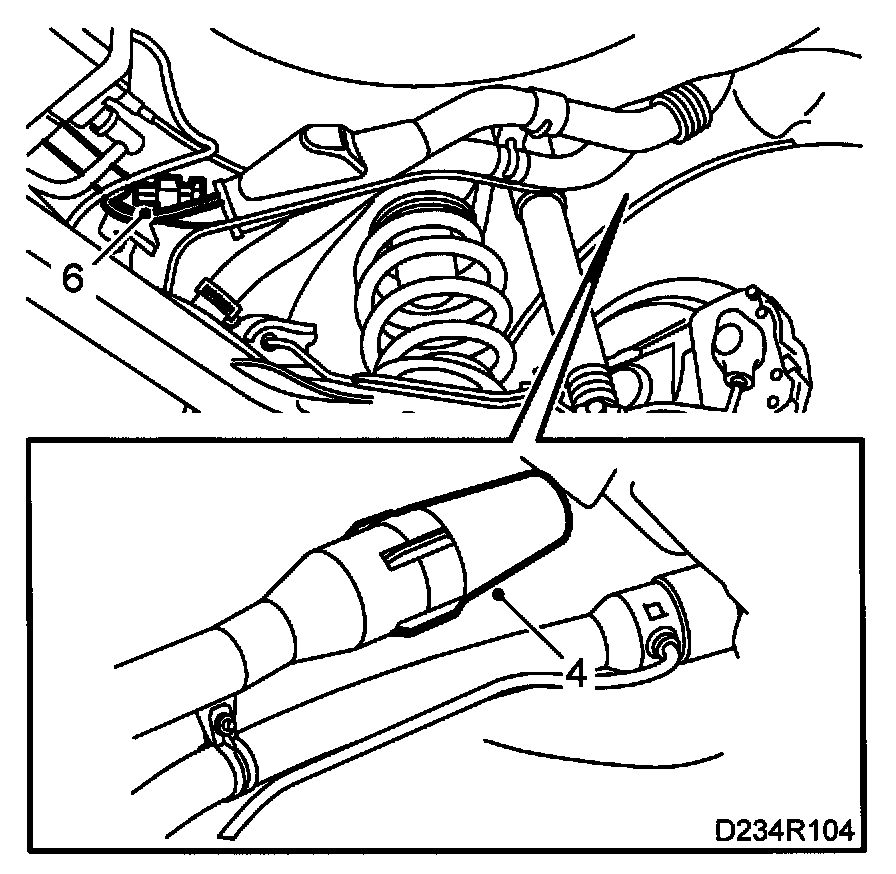

4 Fit the cap.







5 Raise the car.
6 Adjust and connect the shut-off valve hose to the EVAP canister.
7 Lower the car to the floor.
