Charge Air Bypass Valve - Trionic T5

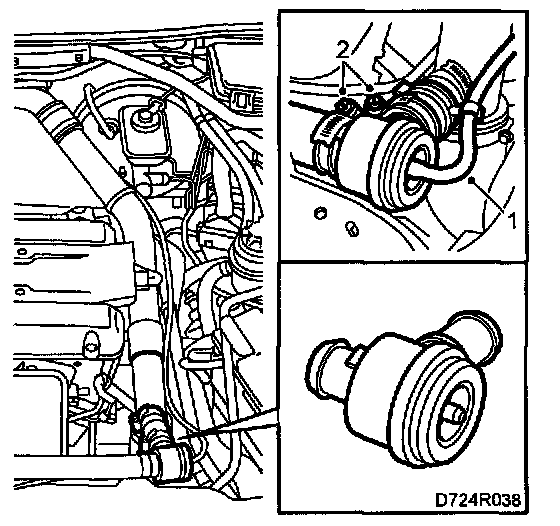

To remove







1 Detach the control hose from the valve.
2 Undo the two hose clips and remove the valve.

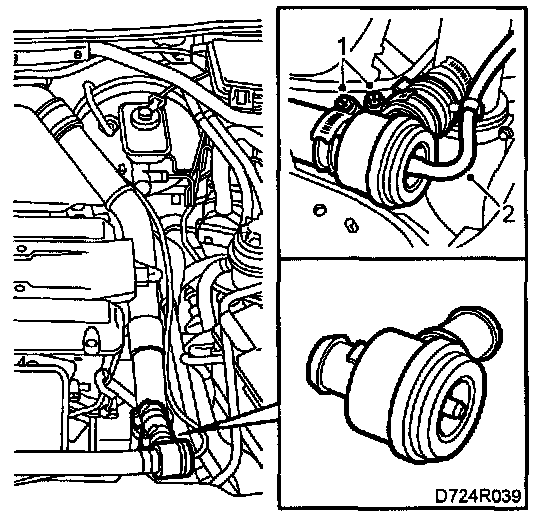

To fit







1 Fit the valve and tighten the hose clips.
2 Connect the control hose to the valve.
