Leak Detection Solenoid: Description and Operation

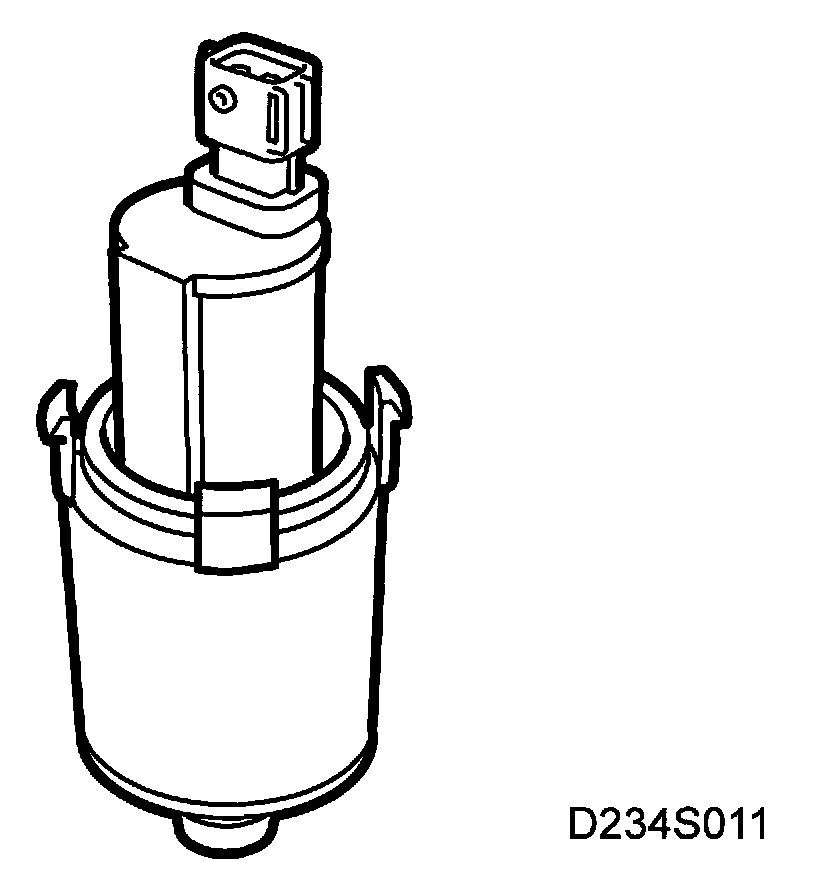

Solenoid Valve, EVAP Shut-off (588)

The shut-off valve is connected to the air supply connection on the EVAP canister and is powered from the main relay.

The valve is normally open.

When the engine is running, the valve is closed only during a tank integrity check.

The shut-off valve is used for OBD II diagnostics.
