Evaporative Emissions Hose: Service and Repair

Horse, EVAP Shut-off Valve







Dismantling

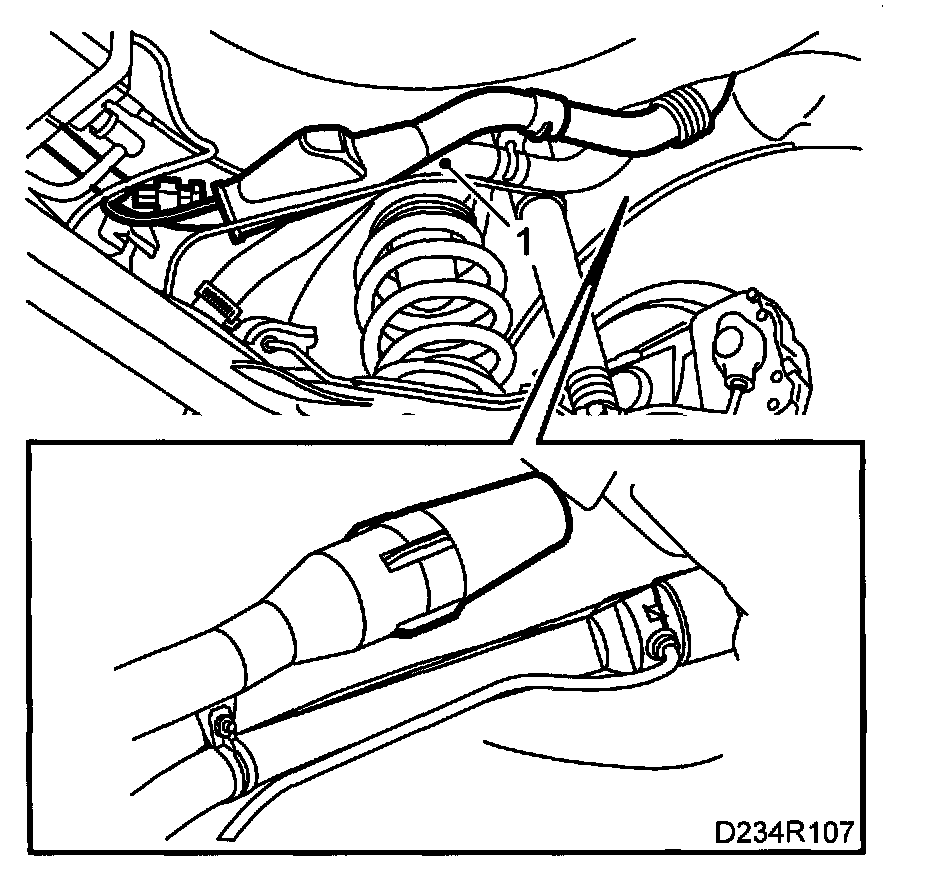

1 Remove the air vent pipe from the car.

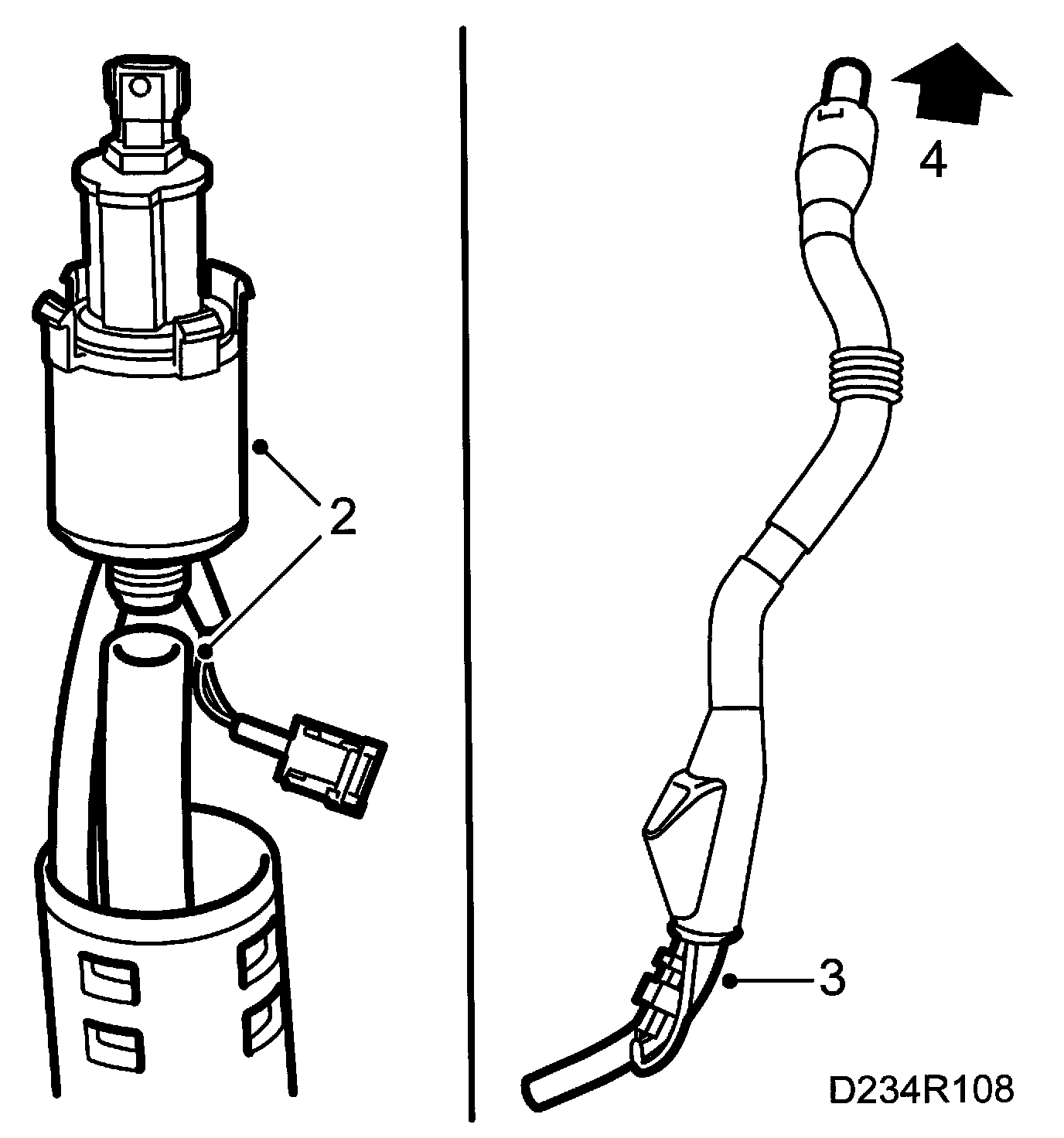

2 Remove the shut-off valve and hose clamp from the hose.
3 Remove the seal from the bottom end of the vent pipe.
4 Hold on to the cable while pulling out the hose from the end of the shut-off valve.


To fit







1 Apply a thin coat of petroleum jelly (vaseline) to the end of the hose.

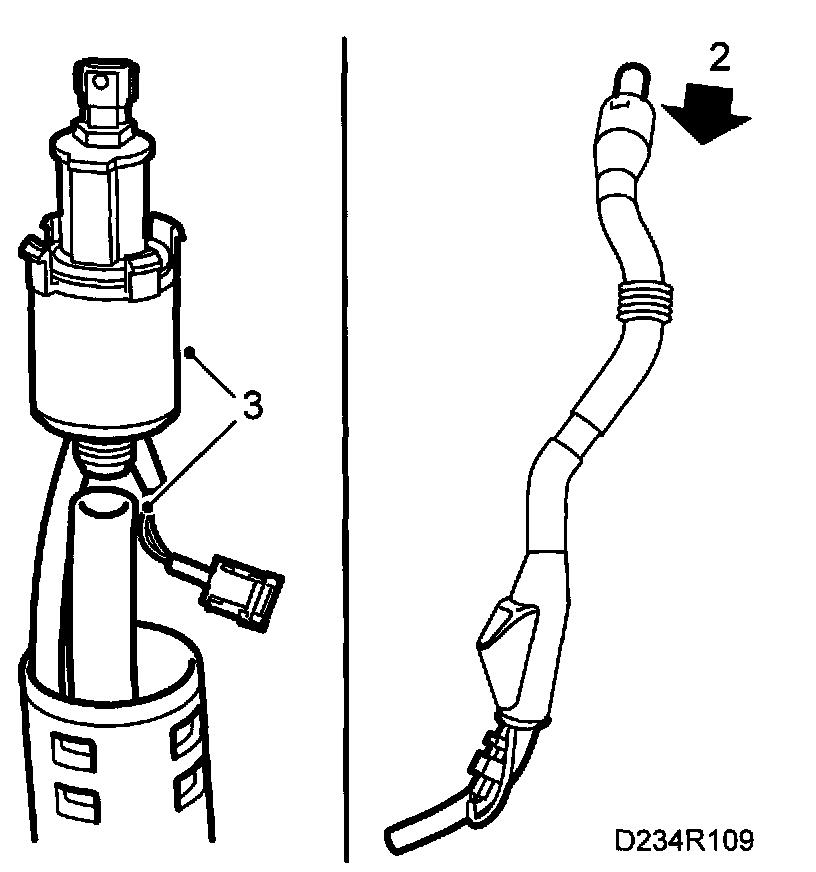

2 Insert the hose into the vent pipe until approx. 10 cm is remaining, making sure the cable does not follow.
3 Fit the shut-off valve with cable and insert the valve and hose the remaining distance.







4 Fit the white cover.

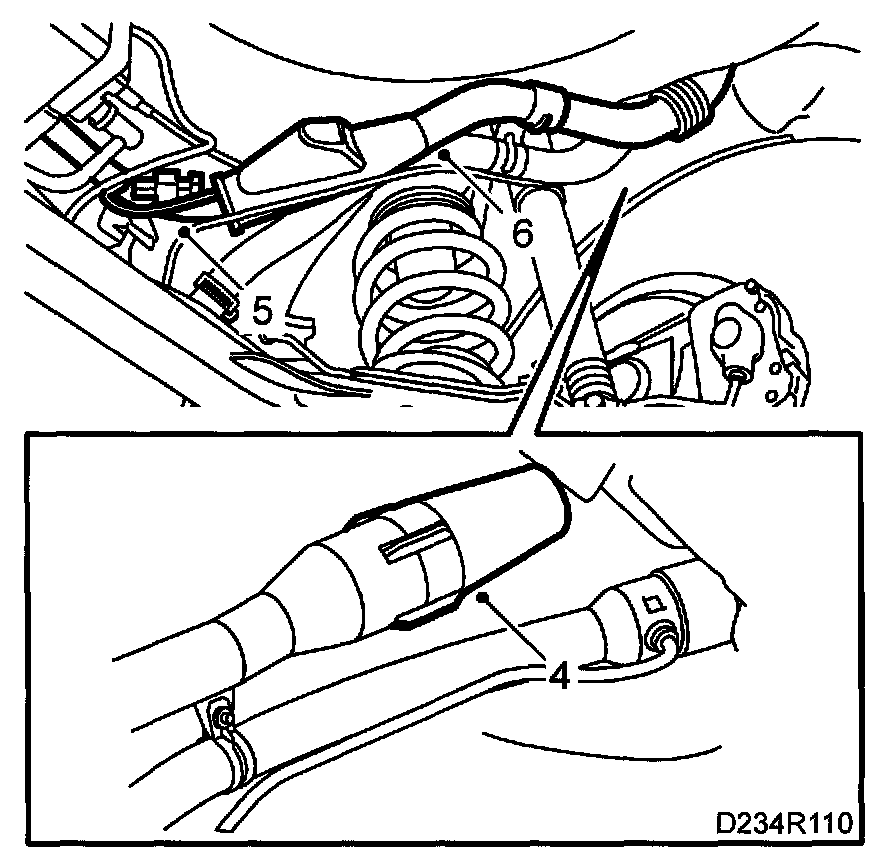

5 Adjust the cables and fit the vent pipe's bottom seal.
6 Fit the vent pipe on the car.
