Evaporative Emission Canister - II

Dismantling

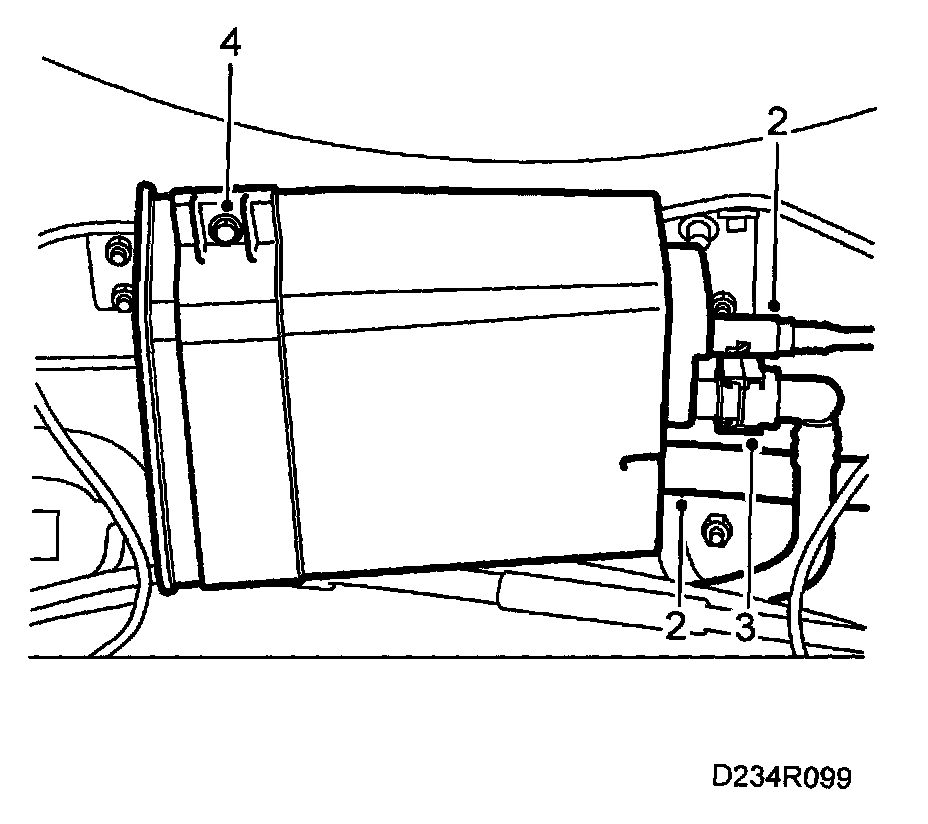

1 Raise the car.
2 Detach the purge line and the shut-off valve hose from the EVAP canister.
3 Detach the line from the fuel tank to the EVAP canister.

a Press the connection inwards towards the EVAP canister in the direction of the connection.
b Compress the ring so that the catches are bent upwards.
c Release the connection by detaching it from the connector pipe on the EVAP canister.

4 Undo the screw and remove the EVAP canister.

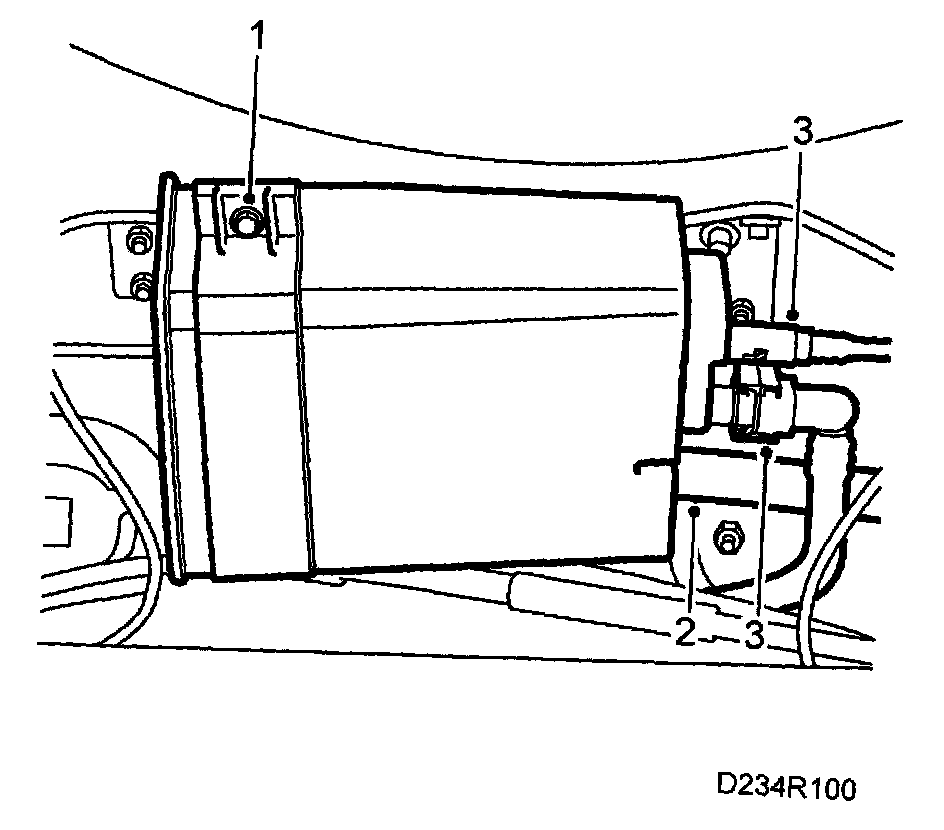

To fit
1 Position and fit the EVAP canister, making sure it hooks correctly on to the holder.
2 Connect the shut-off valve hose to the EVAP canister.
3 Connect the line from the fuel tank and then the line to the EVAP purge valve.
4 Lower the car to the floor.
