Evaporative Emission Canister - I

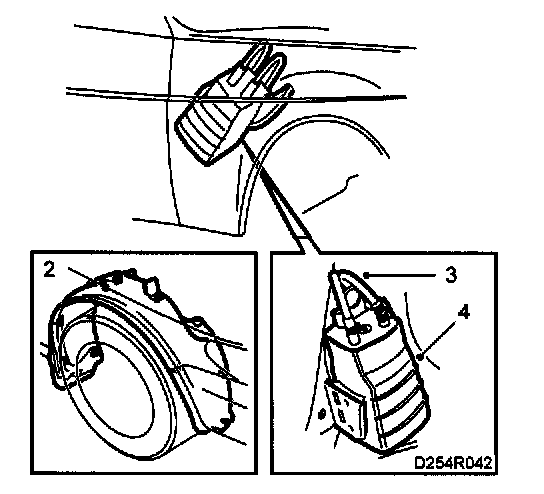

Dismantling







1 Raise the car and remove the front right wheel.
2 Remove the wing liner.
3 Detach the hoses and make a note of their positions.
4 Unhook the evaporative emission canister.

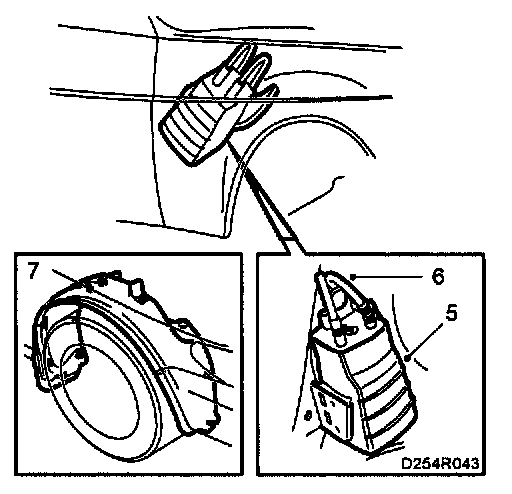

To fit







1 Hook the evaporative emission canister in place.
2 Refit the hoses in their correct positions.

IMPORTANT
Do not get them mixed up.

3 Fit the wing liner and wheel.

Tightening torques:
Wheel: 120 Nm (89 lbf ft)

4 Lower the car to the floor.
