Canister Purge Volume Control Valve: Service and Repair

To remove

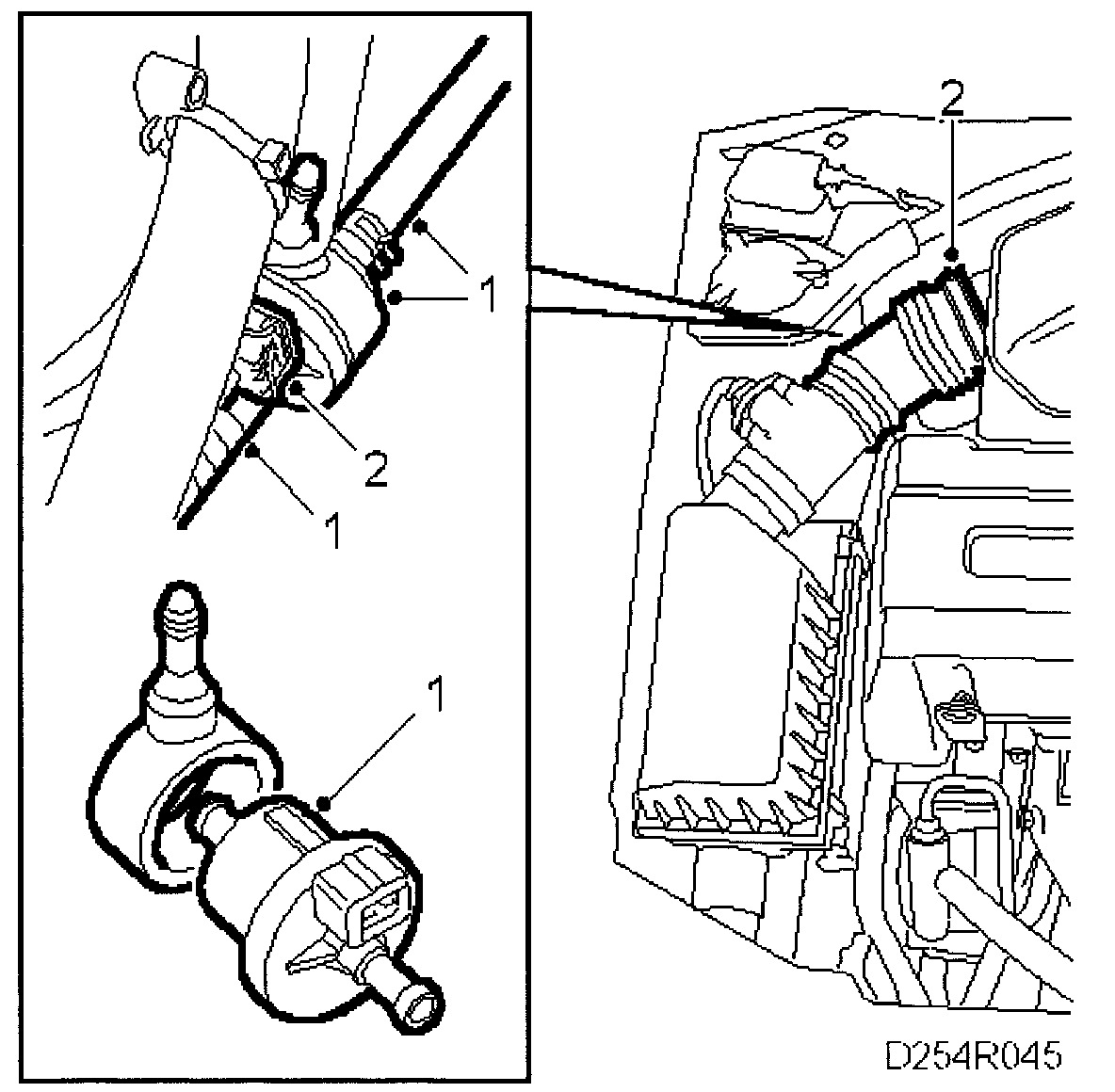

1 Unplug the connector from the EVAP purge valve. Make a note of the valve position.
2 Detach the hose and remove the valve from the holder.

To fit







1 Connect the hose and fit the valve to the holder


IMPORTANT
Note the arrow on the valve, it should be pointing forward.


2 Plug in the connector to the EVAP purge valve.
