Trionic T7 OBD II - EVAP Canister Purge Valve (321)

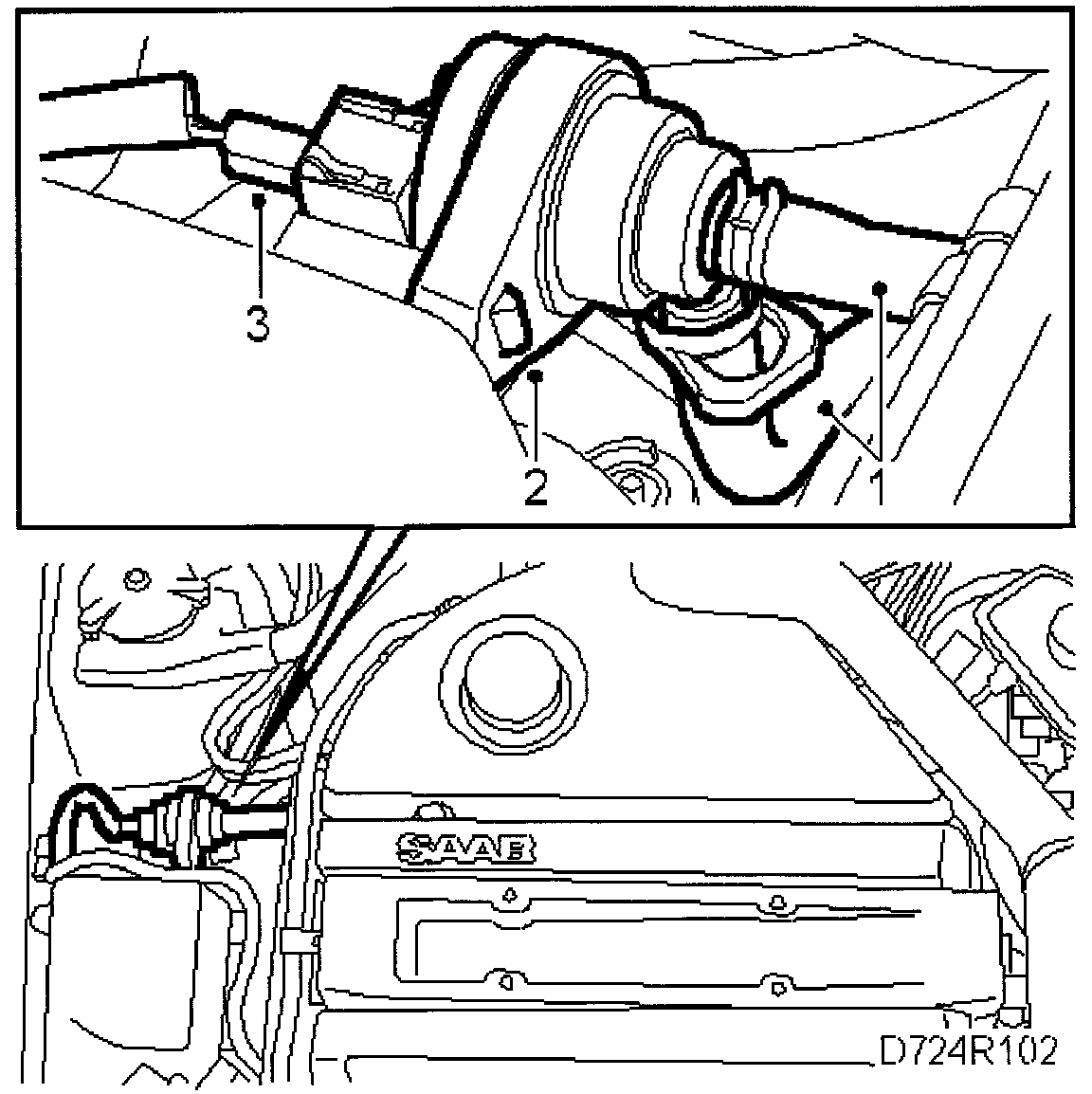

To remove
1 Unplug the connector from the EVAP canister purge valve. Make a note of the location of the vale.







2 Remove the valve from the holder.
3 Remove the hoses.

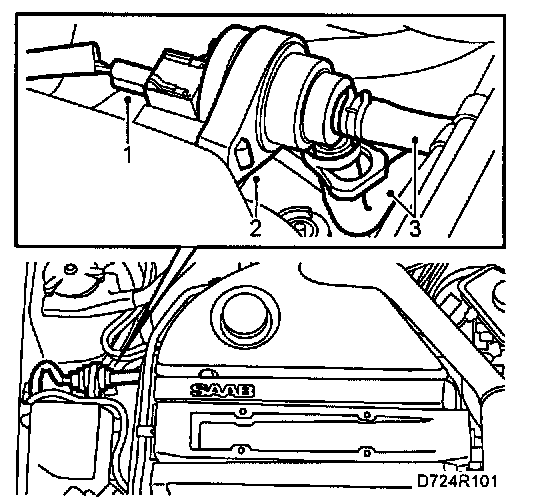

To fit







NOTE: Spray the connector with Kontakt 61 (part no. 30 04 520).


1 Fit the hoses.
2 Fit the valve to the holder.
3 Plug in the connector on the EVAP canister purge valve.
