Trionic T5 OBDII - EVAP Canister Purge Valve

To remove

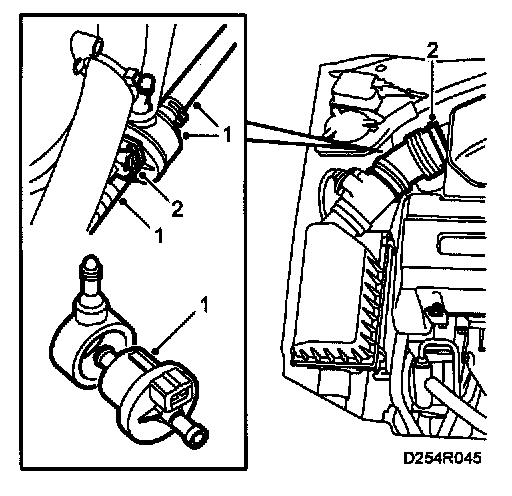

1 Unplug the connector from the EVAP purge valve. Make a note of the valve position.
2 Remove the valve from the holder

To fit

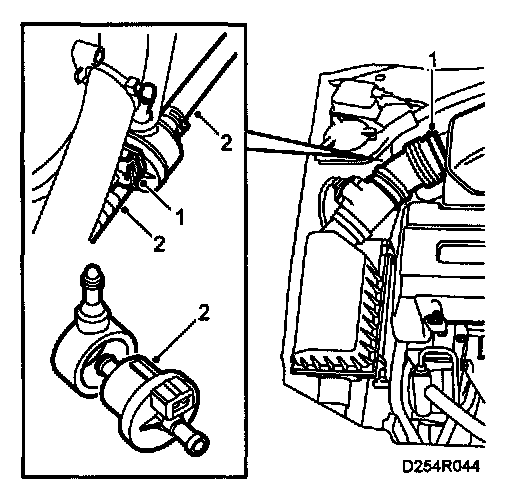

1 Fit the valve in the holder
2 Plug in the connector to the EVAP purge valve.


IMPORTANT
Note the arrow on the valve, it should be pointing forward.
