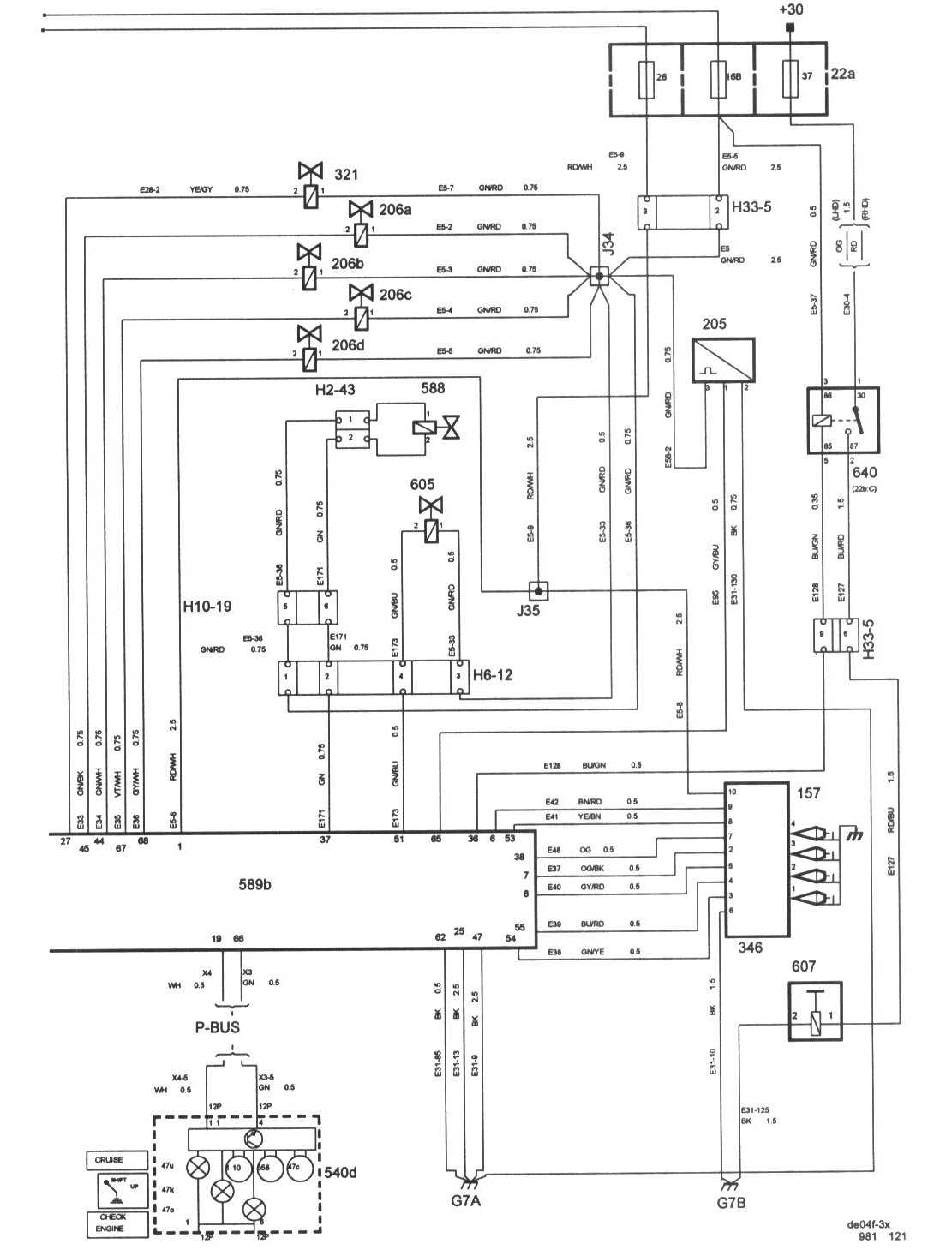

Engine Management System Trionic T7 4-Cyl. OBD II (Part 3)
Engine Management System Trionic T7 4-Cyl. OBD II (Part 3)
Engine Management System Trionic T7 4-Cyl. OBD II (Part 3)
Part 1:
Part 2:
