Engine Management System Trionic T7 4-Cyl. OBD II (Part 1)









Engine Management System Trionic T7 4-Cyl. OBD II (Part 1)

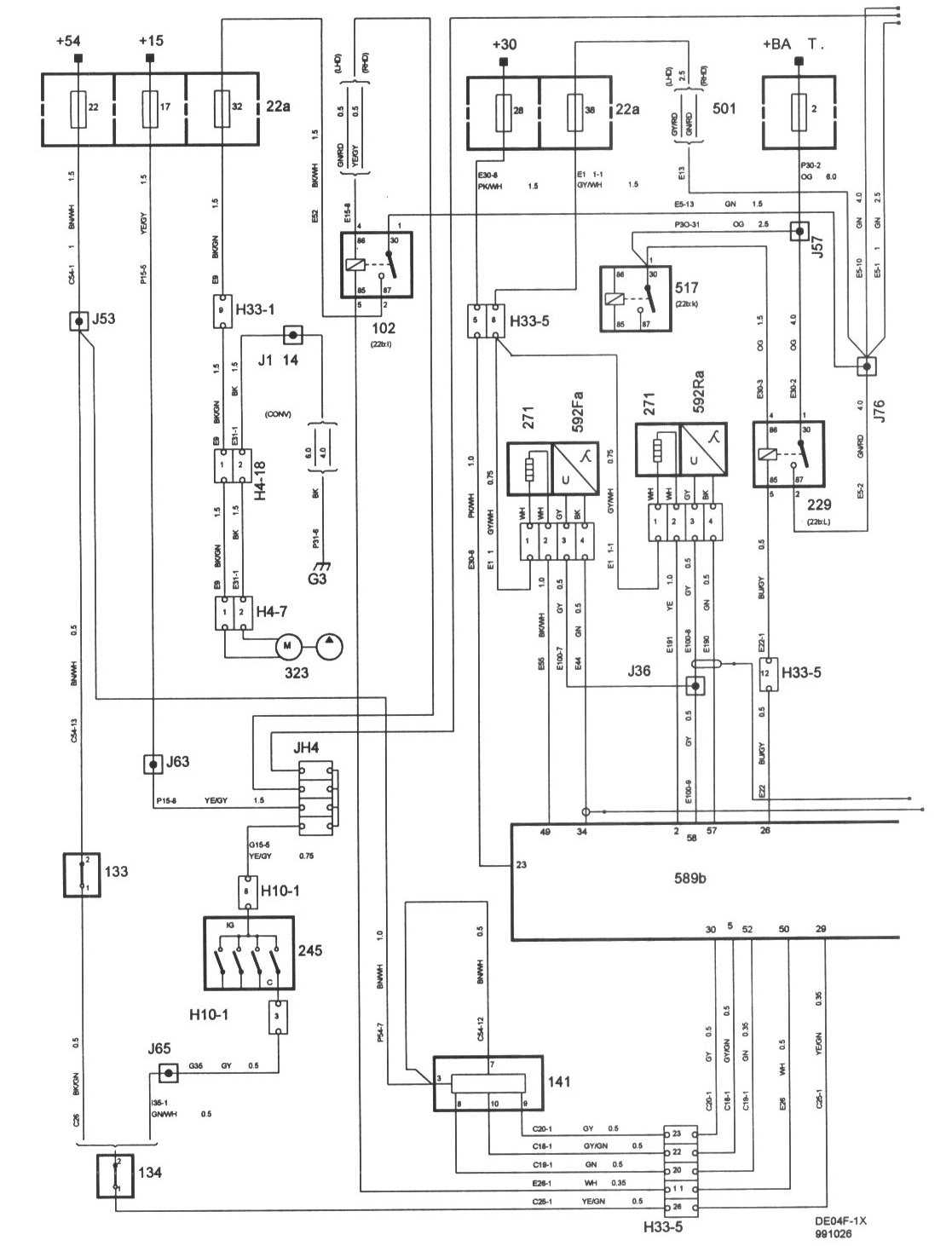

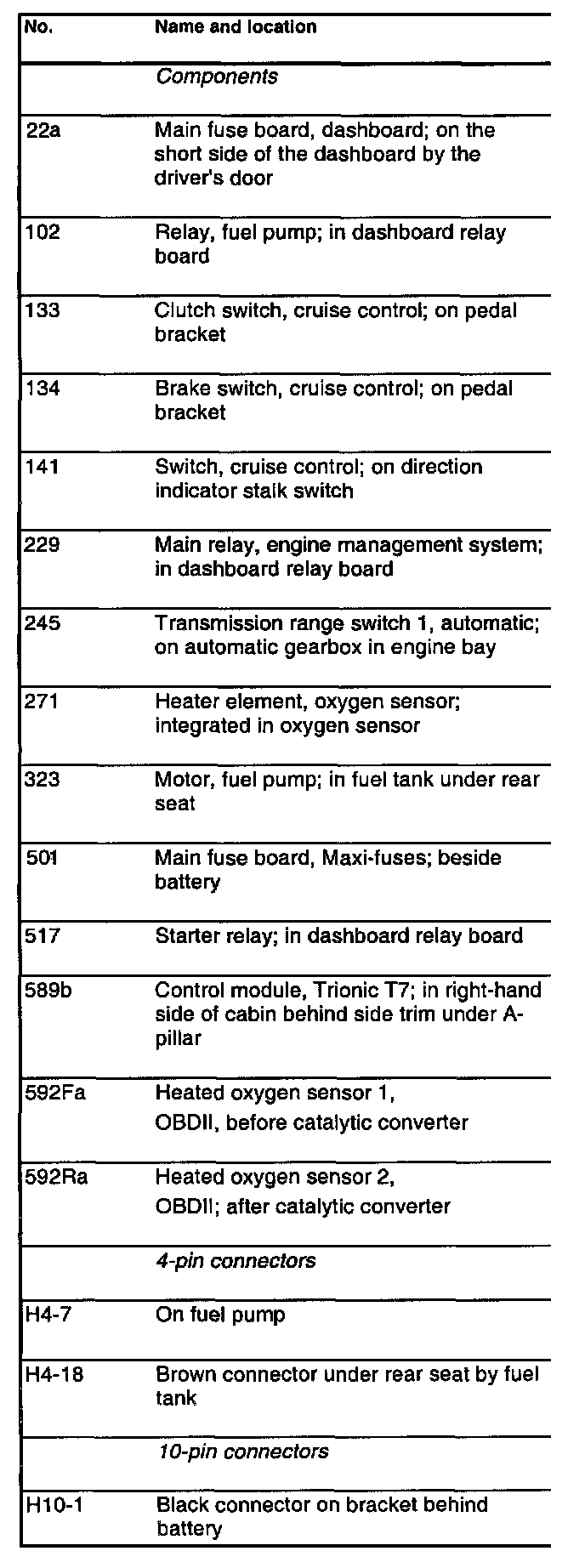

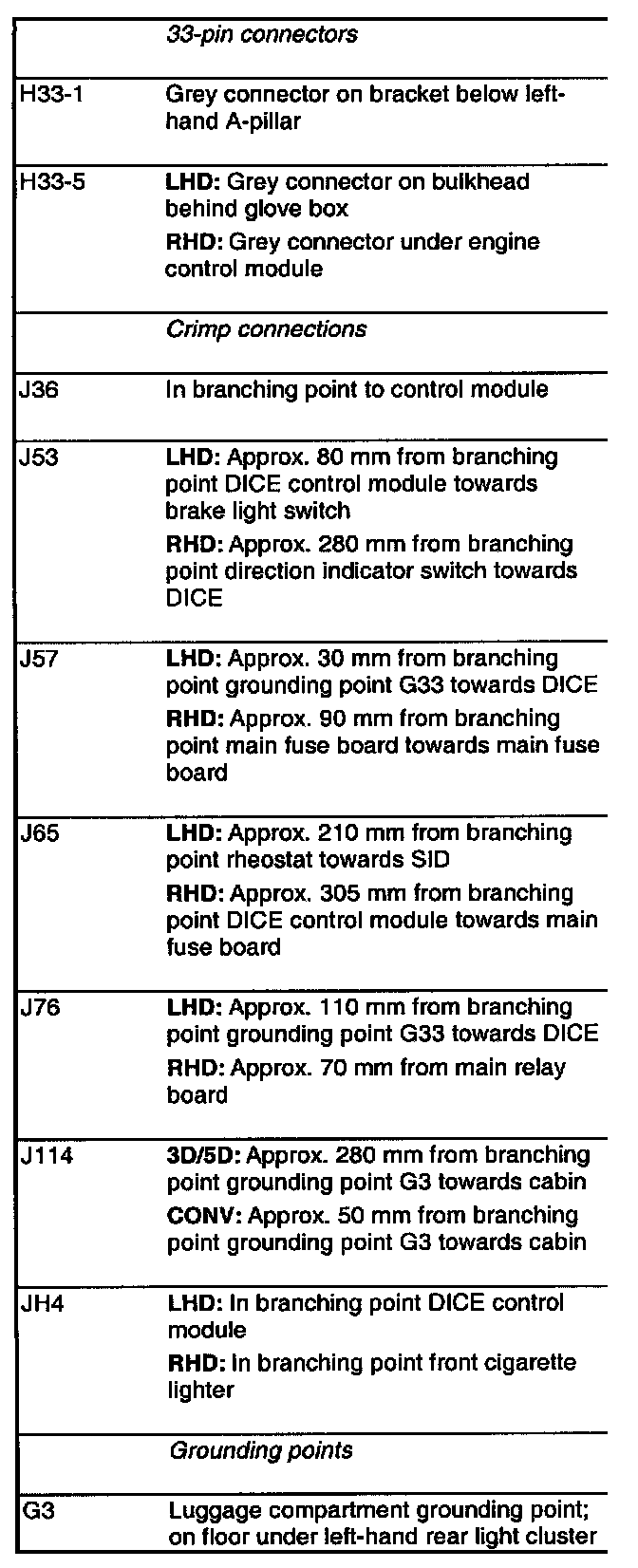

Part 1:






Part 2:
