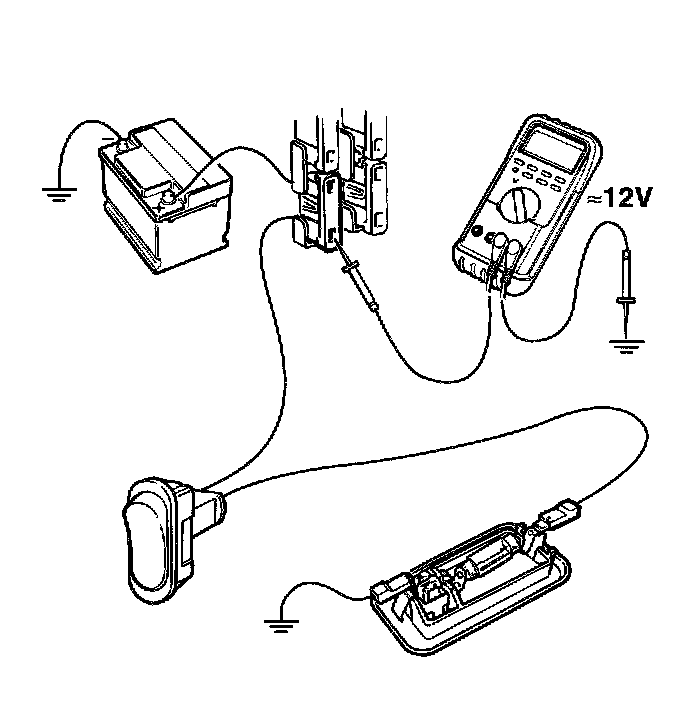

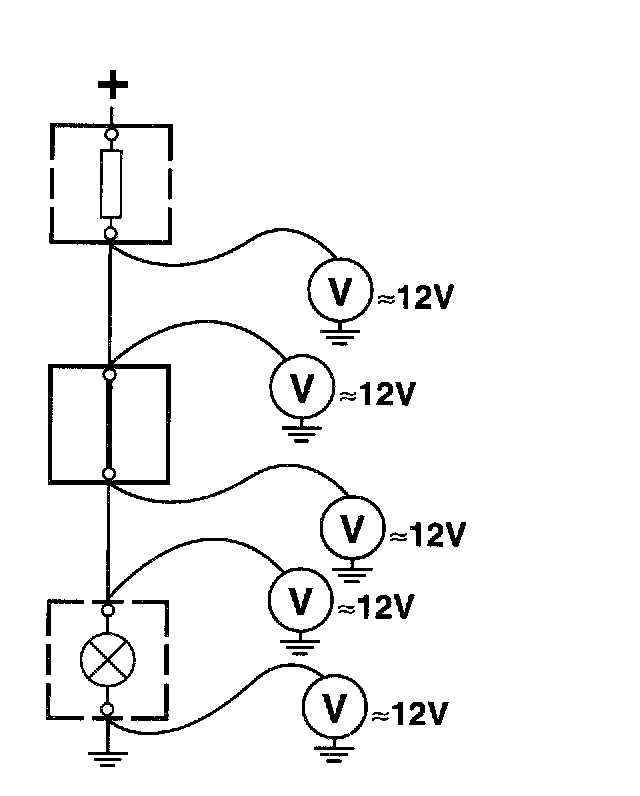

Checking the Voltage

1. Disconnect the load.
2. Connect the negative lead of the voltmeter to a good grounding point.
3. Connect the positive lead of the voltmeter to the connector pin that is to be checked.
4. The voltage should be equal.
