Car Will Not Start

Car Will Not Start.:

Fault symptoms
Car will not start.

Conditions
The following conditions apply for the current fault symptom:
- No diagnostic trouble codes in the car with the current symptom description.
- Petrol in the tank.
- Starter motor in order.

Diagnostic help
Most functions that can stop the engine from starting are monitored by self-diagnosis and therefore generate diagnostic trouble codes if they malfunction. This fault diagnosis therefore applies to faults that are not monitored but can prevent the engine from starting.
Make sure the fuel pump is in working order and delivering pressure first. Then, check the crankshaft position sensor, ignition discharge module and spark plugs.

Functions in the diagnostic tool related to the fault:
- Activate fuel pump relay.
- Activating ignition triggers.
See also the description of activations under "Fault diagnosis, general" for more information.

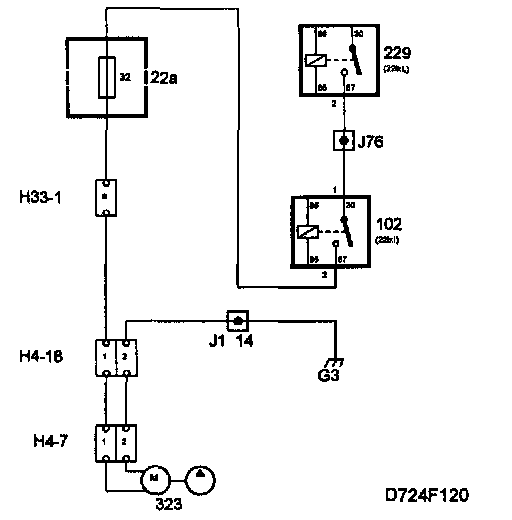

Trionic T7, 4-Cyl OBD II

Checking the wiring
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short circuits. Observe the multimeter, diagnostic tool or test lamp during the check.
