Checking the Valve's Control Module Output

Checking The Valve's Control Module Output

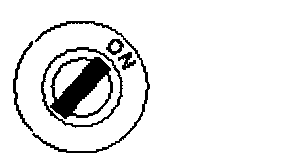

- Turn the ignition switch to the ON position.

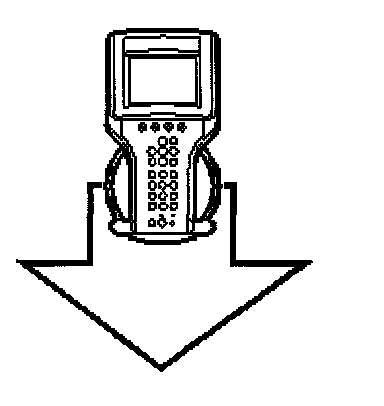

- Contact Trionic 5 OBDII.
- Activate:

Boost Pres. Valve
- A loud humming sound should be heard.

Is the function correct?

NO - Rectifying the Lead - I

YES - Changing Components - I
