Checking Basic Charging Pressure




Checking basic charging pressure












Should the control module initiate basic charging pressure, this could be for a variety of reasons.

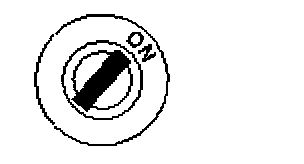

- Turn the ignition switch to the ON position.

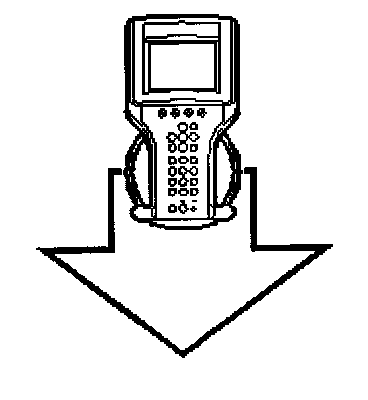

- Contact Trionic 5 OBDII.







- Test value:

Basic Charge Press

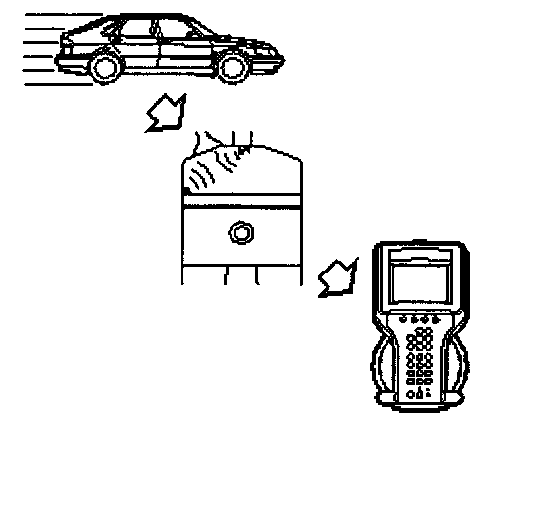

- The cause of the fault in question is shown when driving at wide open throttle.

The following readings should be shown:
BOOST PRESSURE

Is the function correct?

NO - Checking the Rectification of Faults

YES - Determining the Cause of A Fault
