No Contact With Any Bus System

No contact with any bus system:

Fault symptoms
The text on the diagnostic tool's display reads: "No contact with any bus system". "Cause: No communication with DICE".

Conditions
The following conditions are applicable:
- Ignition switch in ON position

Diagnostic help
First check the fuses for the DICE control module and that no slide-out of the data link connector pins for communication with the DICE has occurred.
Then check whether the DICE is awake and allows diagnostics communication. If this is the case, check whether the diagnostics tool works on another car.

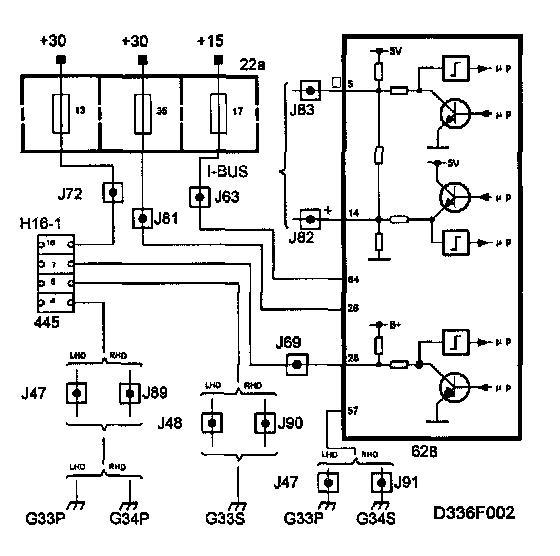

If no fault can be found, rectify the communication lead between the DICE and the data link connector.

Check wiring harness.
Jiggle the wiring harness at several points and in different directions to detect intermittent breaks and short-circuits in the leads.
Observe the multimeter, test lamp or diagnostic tool during the test.
