Trionic T5 OBD II

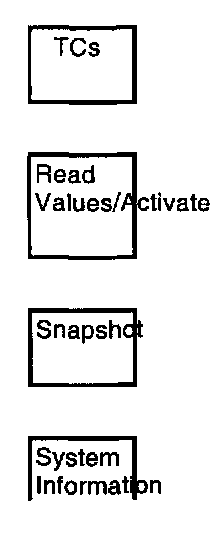

Tech 2 Menu Structure

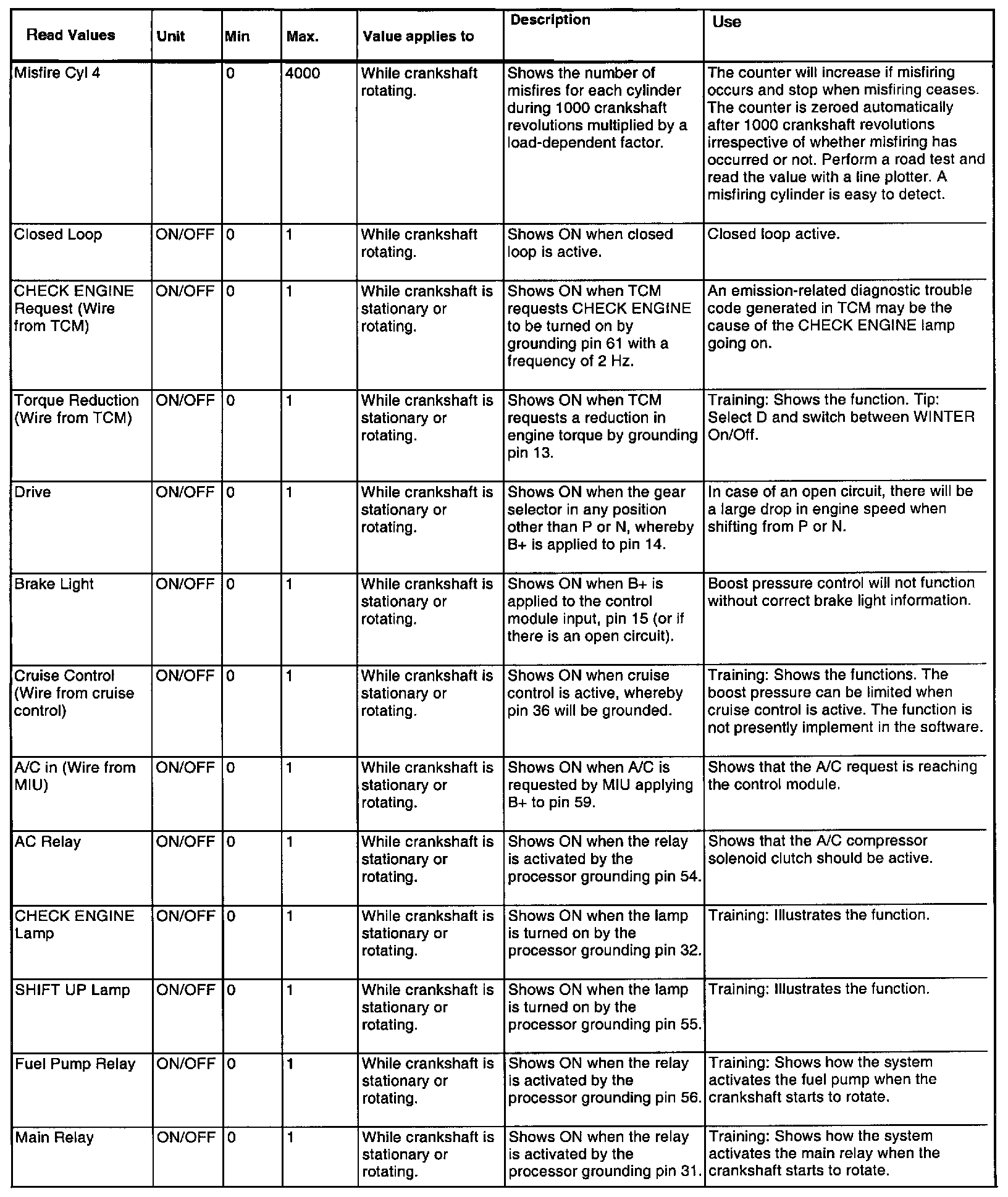

Menu Read Values

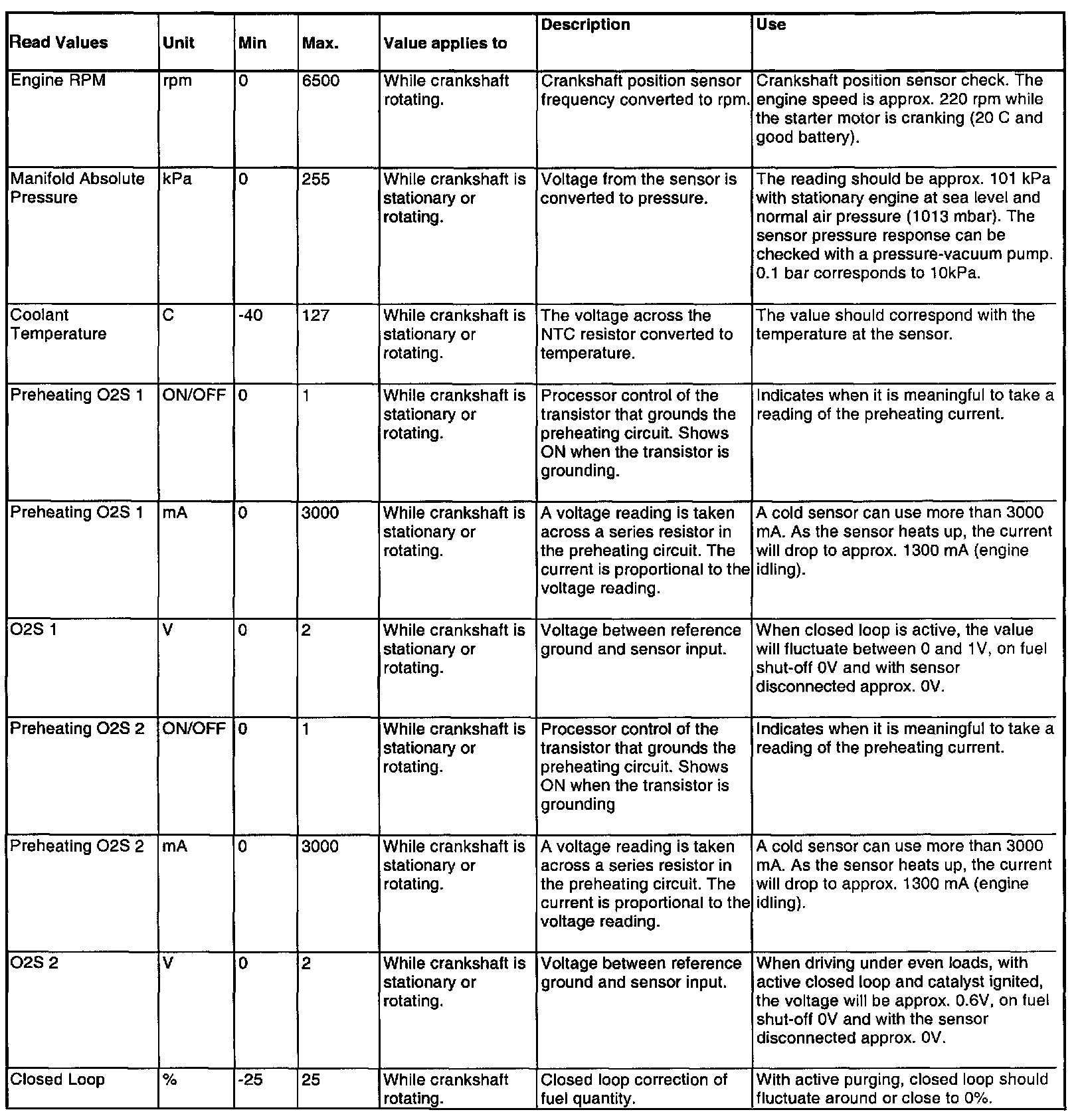

Tech 2 Menu Structure Part 1:

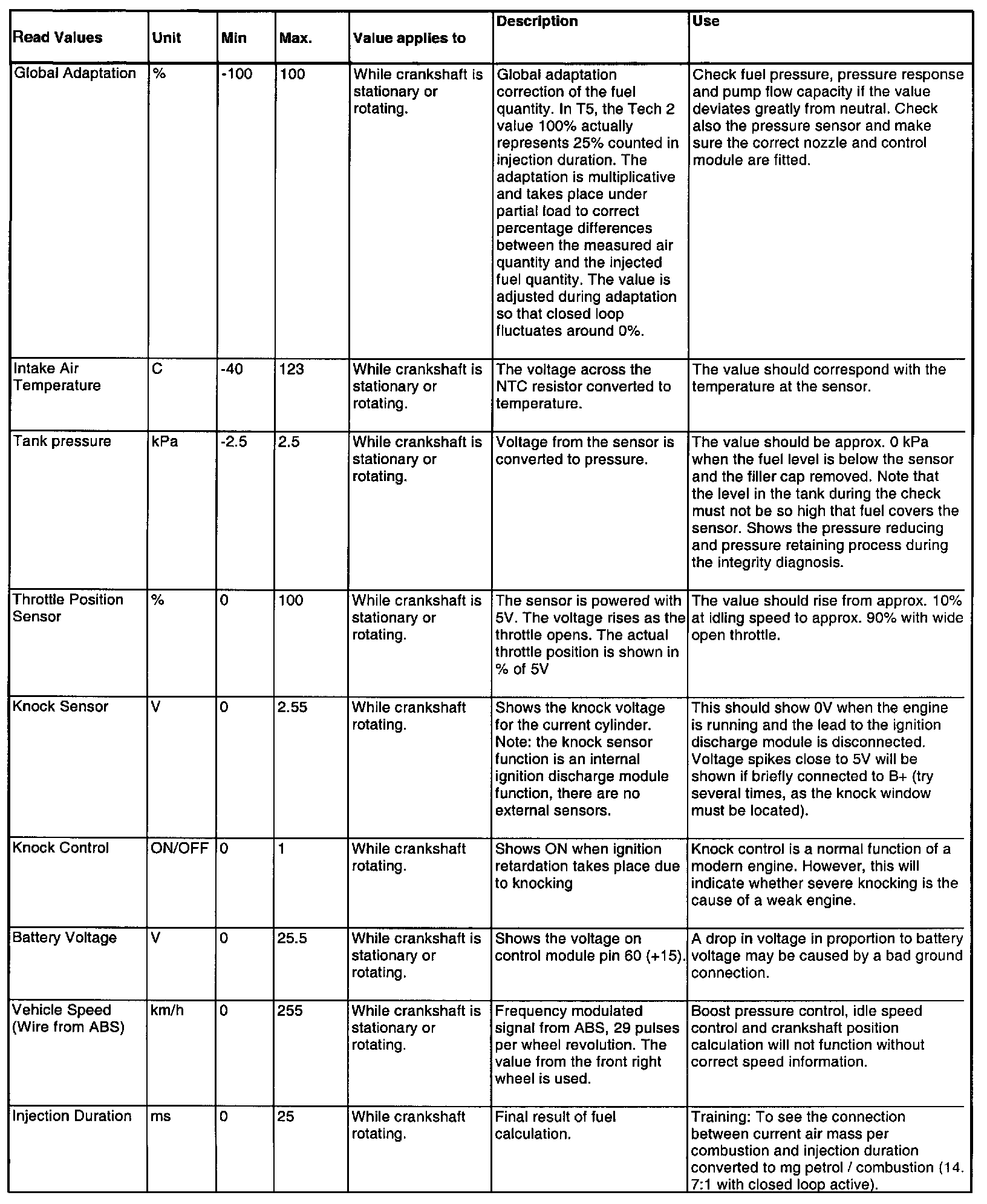

Part 2:

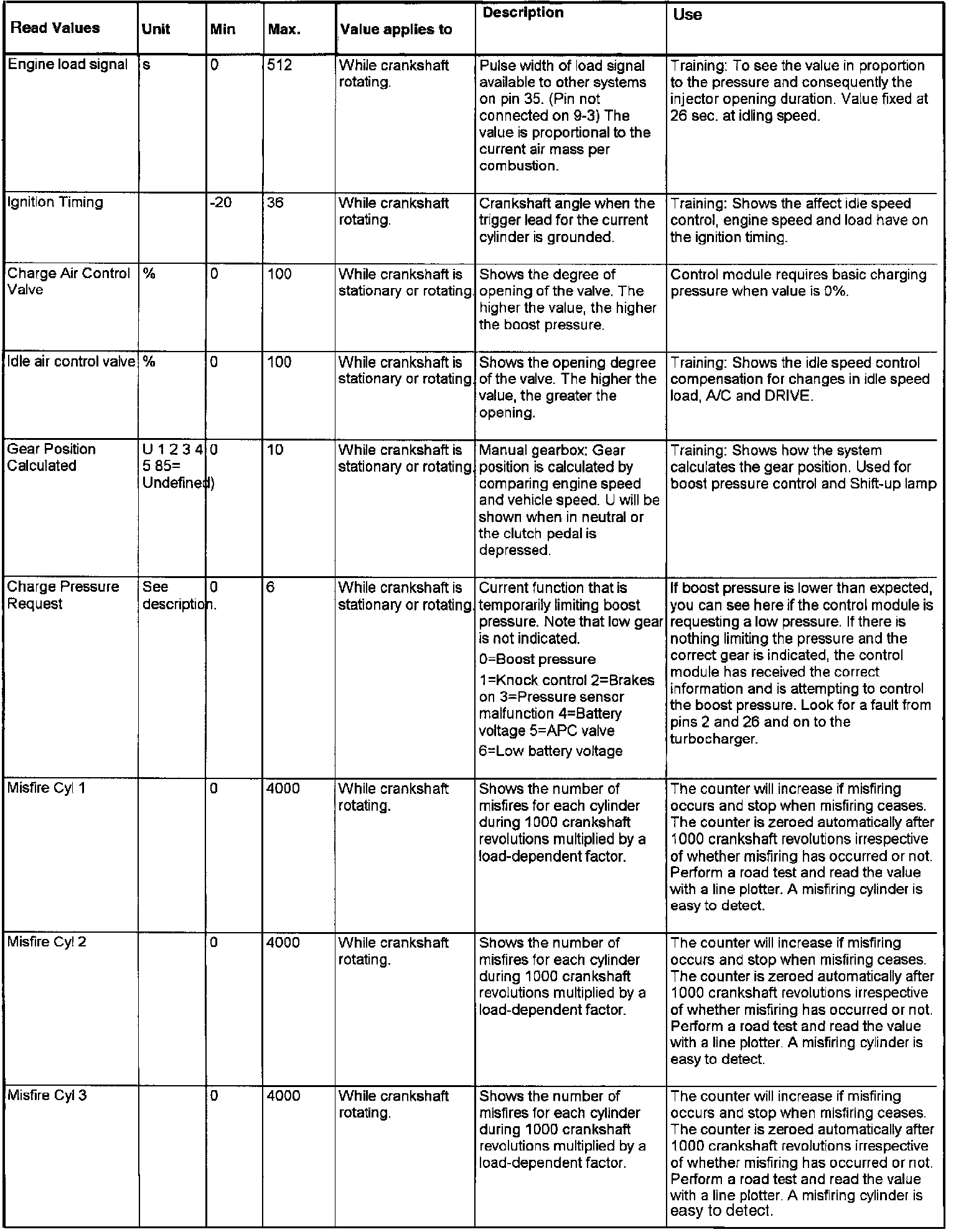

Part 3:






Part 4:

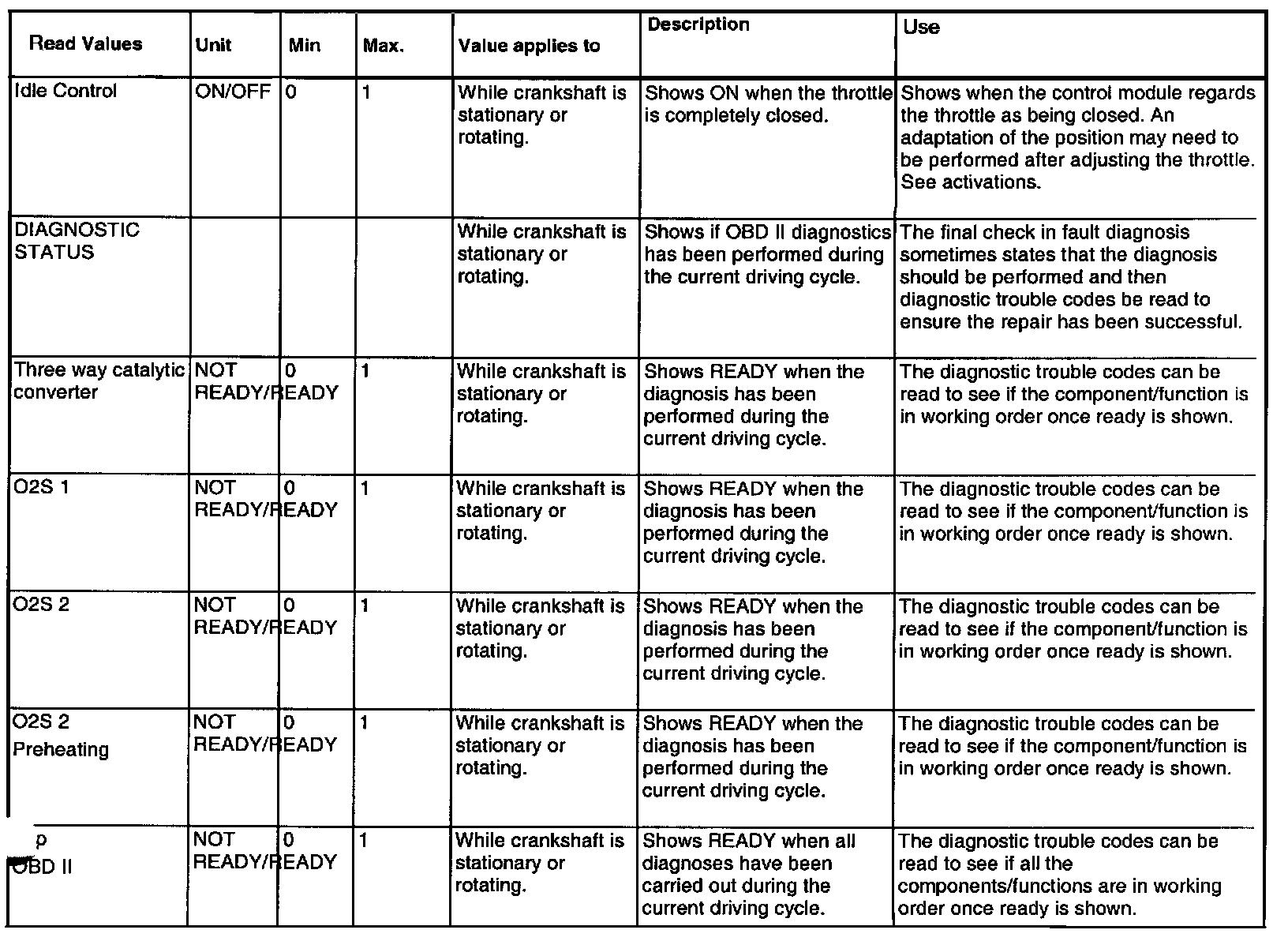

Part 5:






Menu Activate

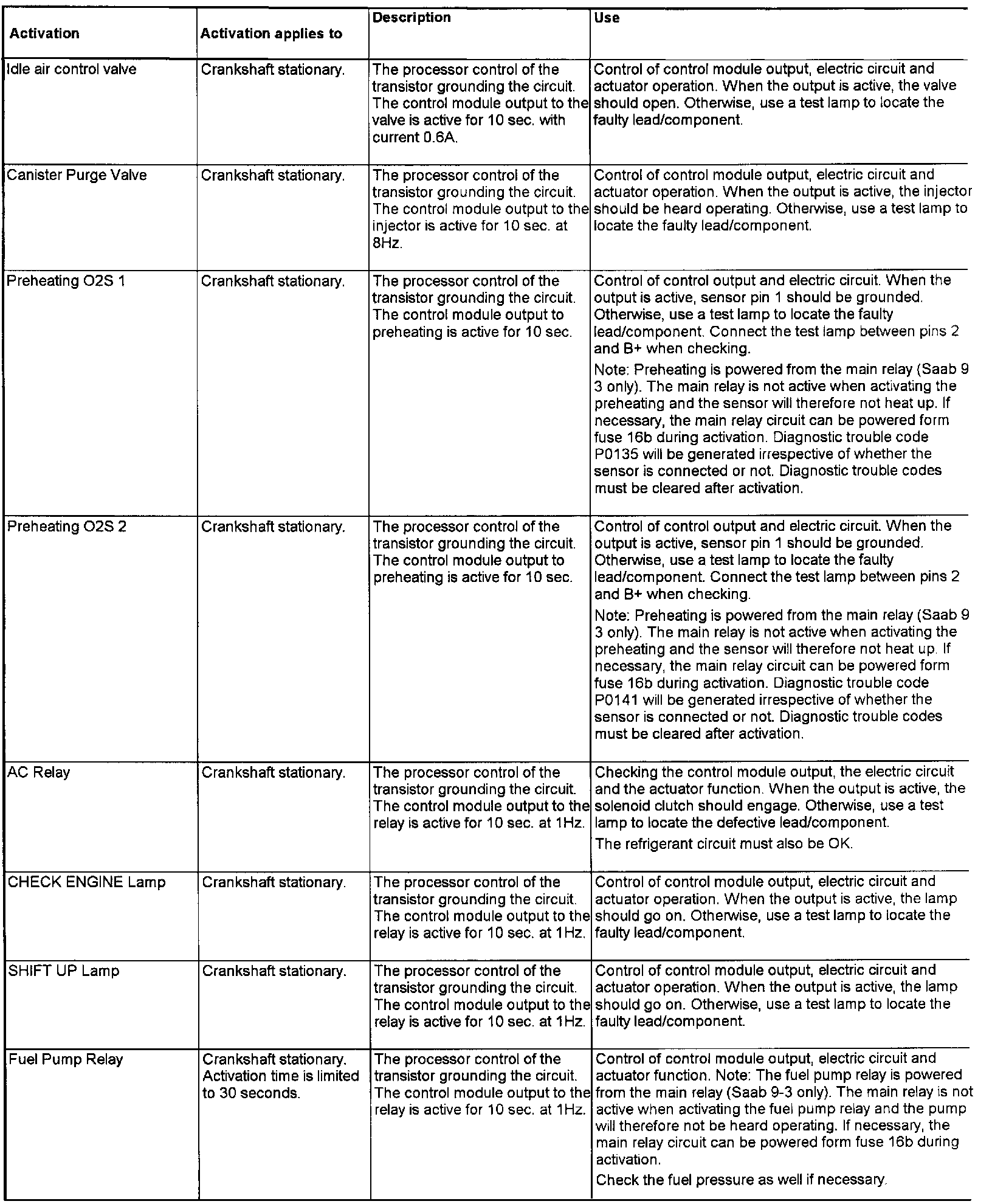

Part 1:

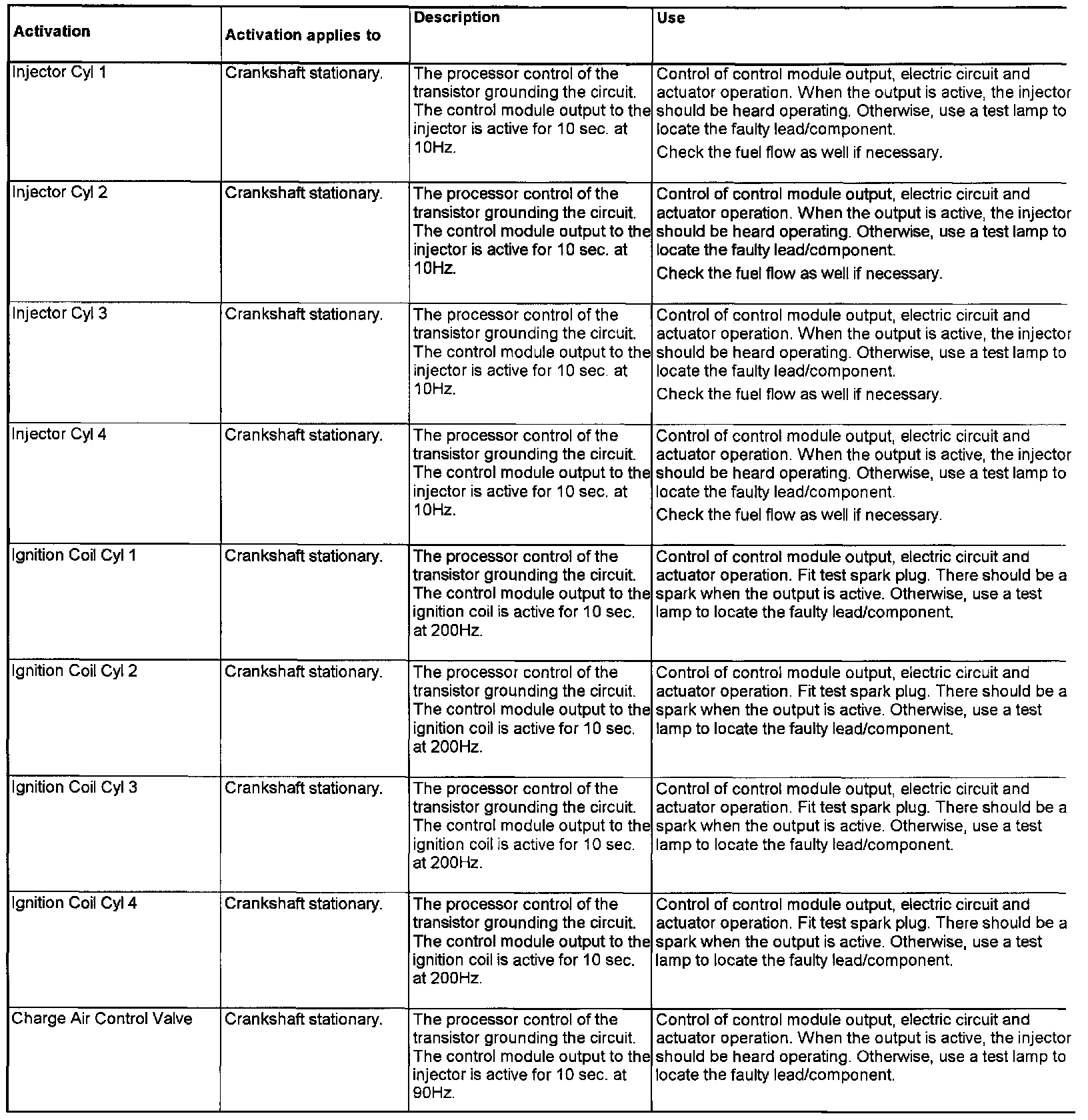

Part 2:

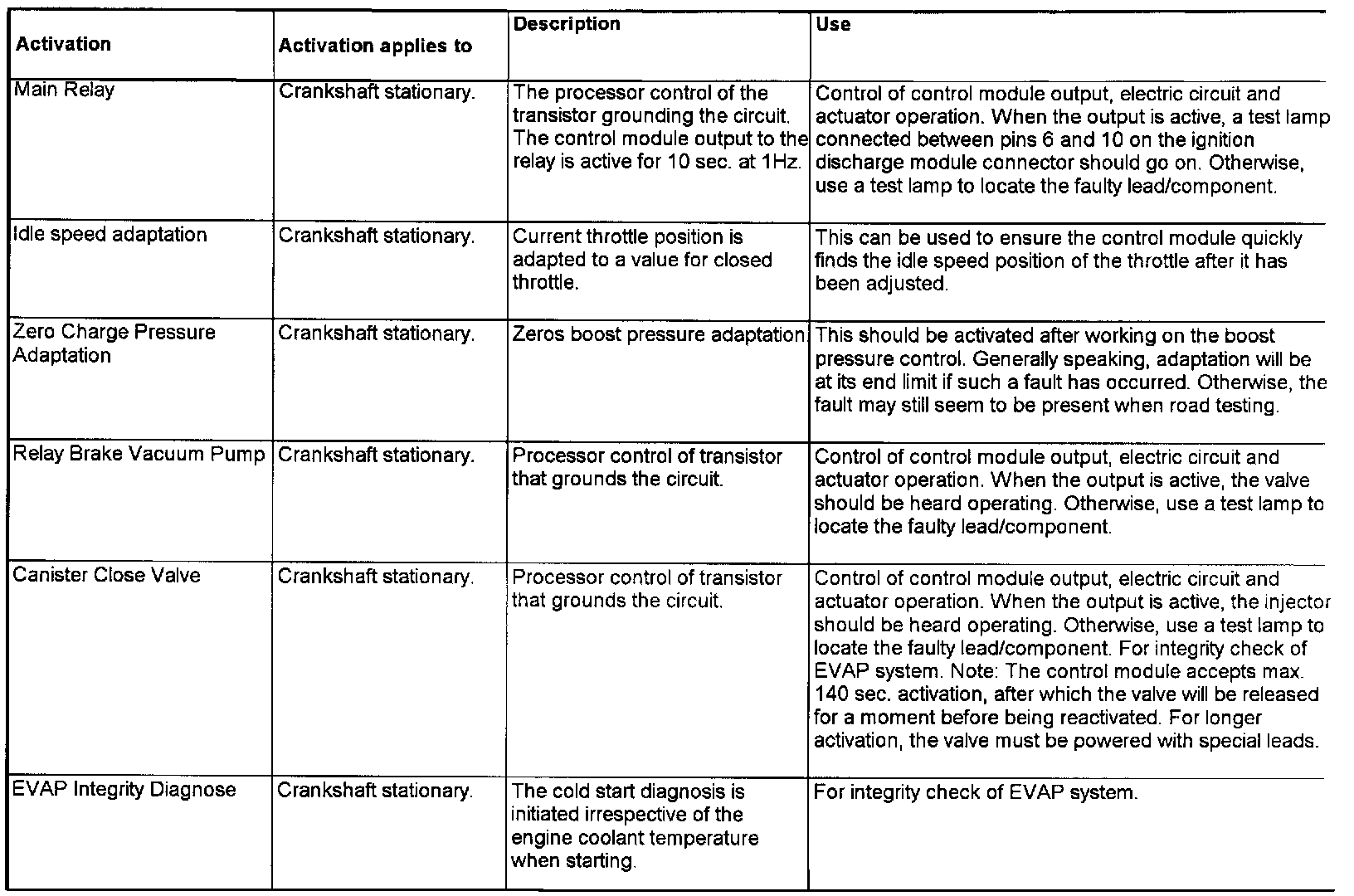

Part 3:
