Trionic T5

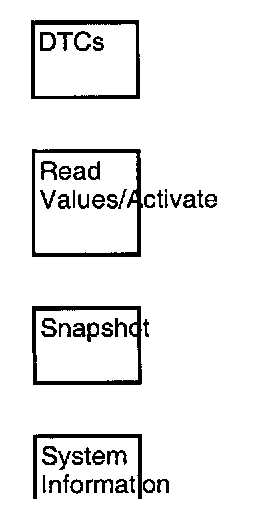

Tech 2 Menu Structure

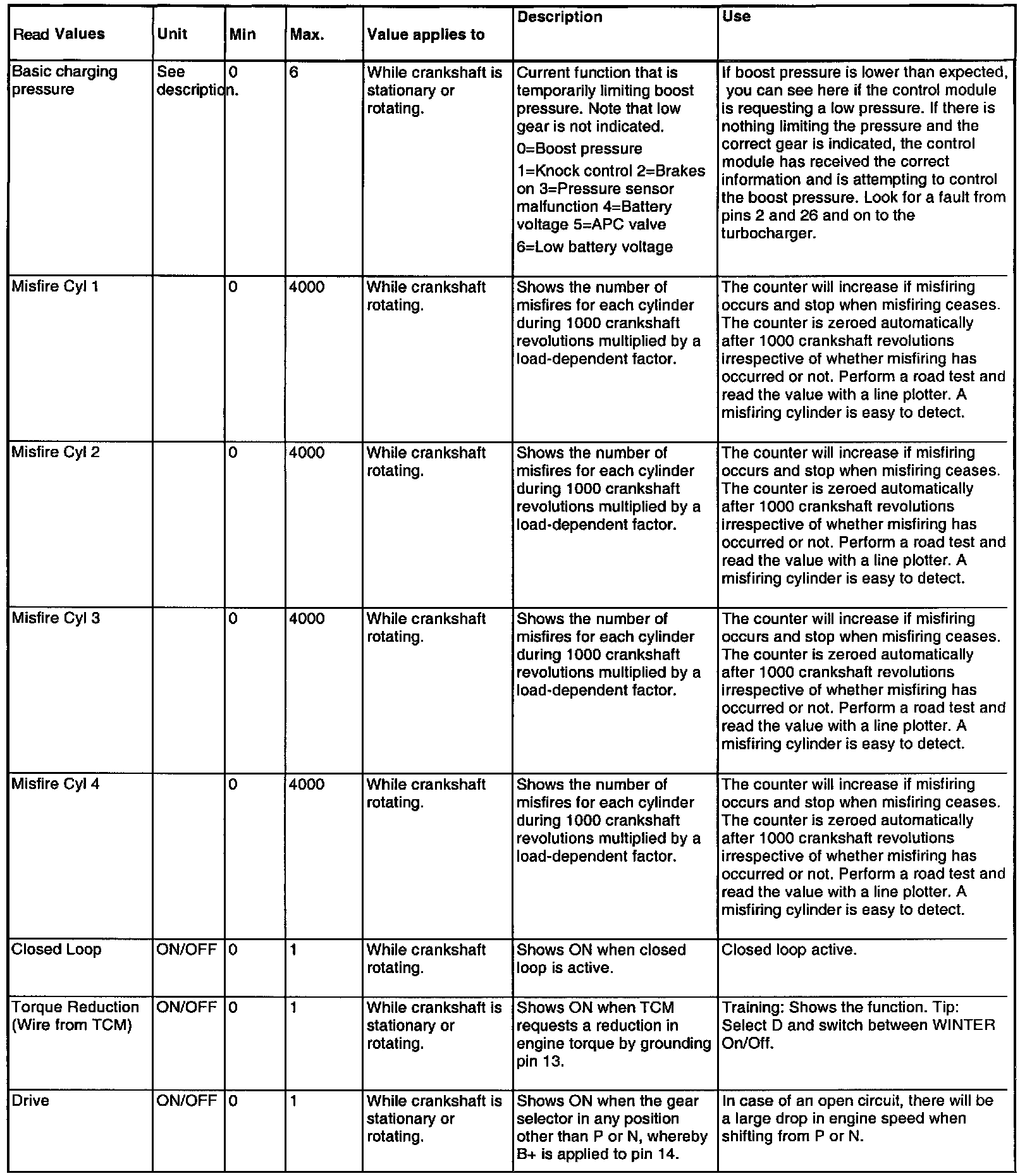

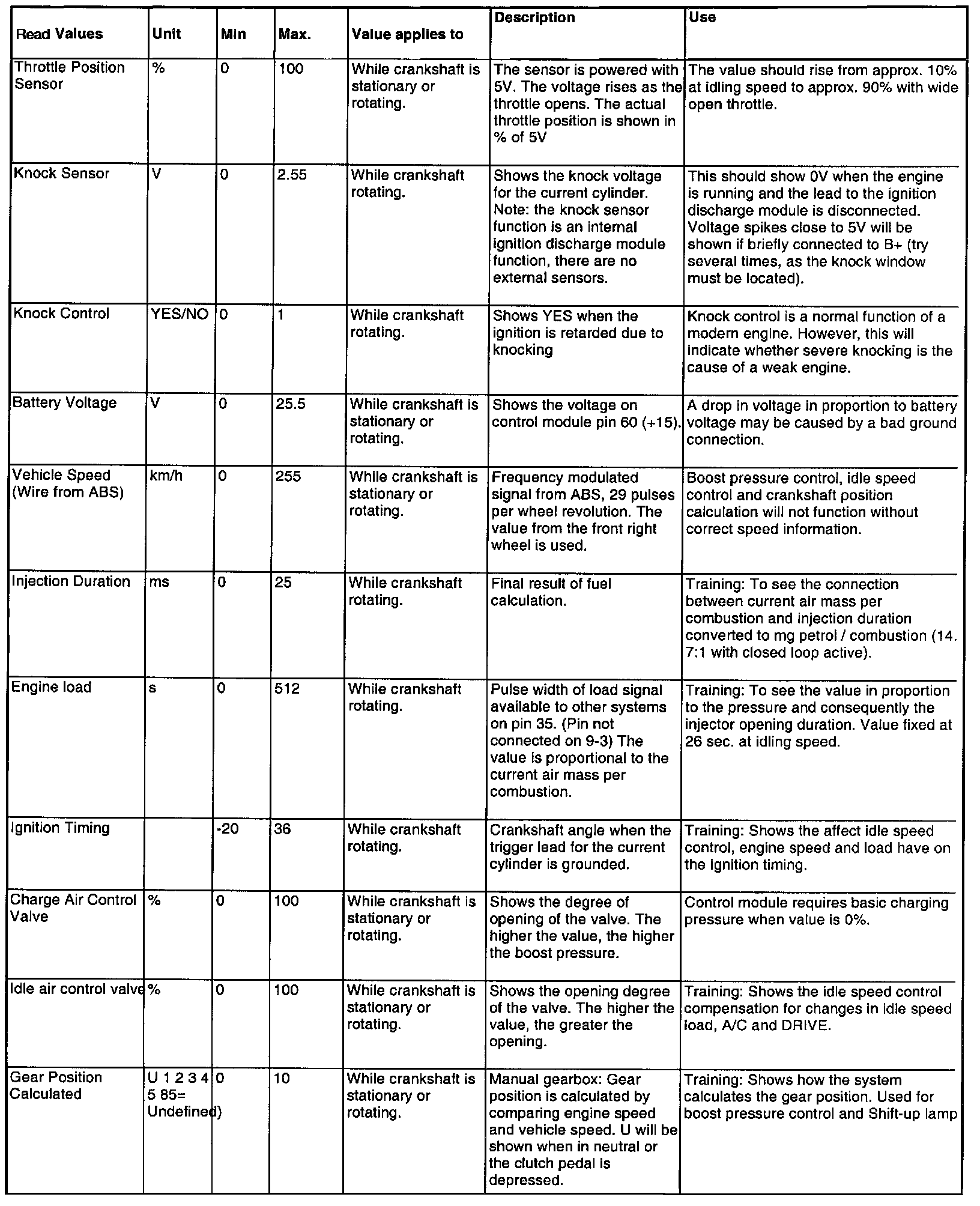

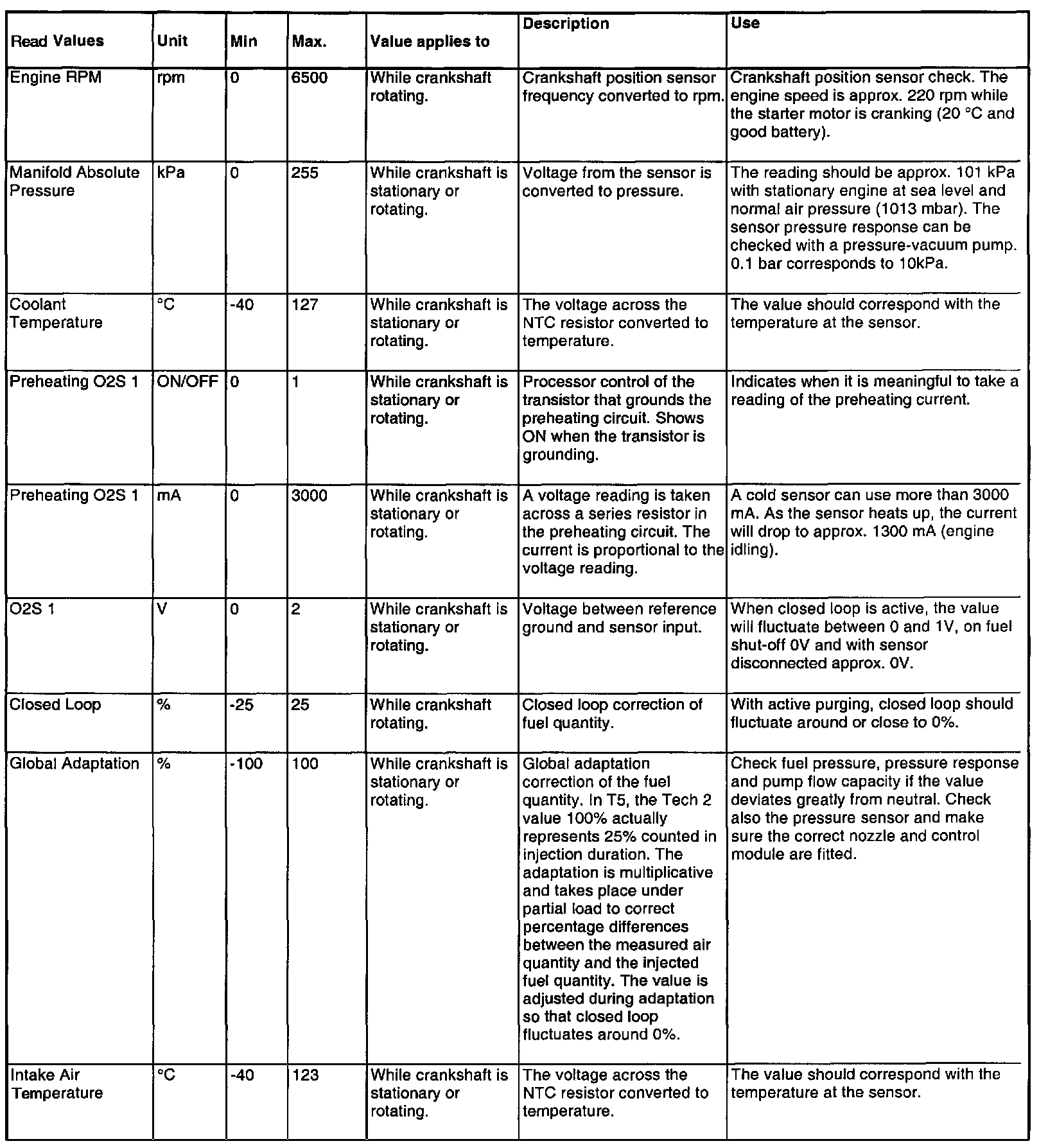

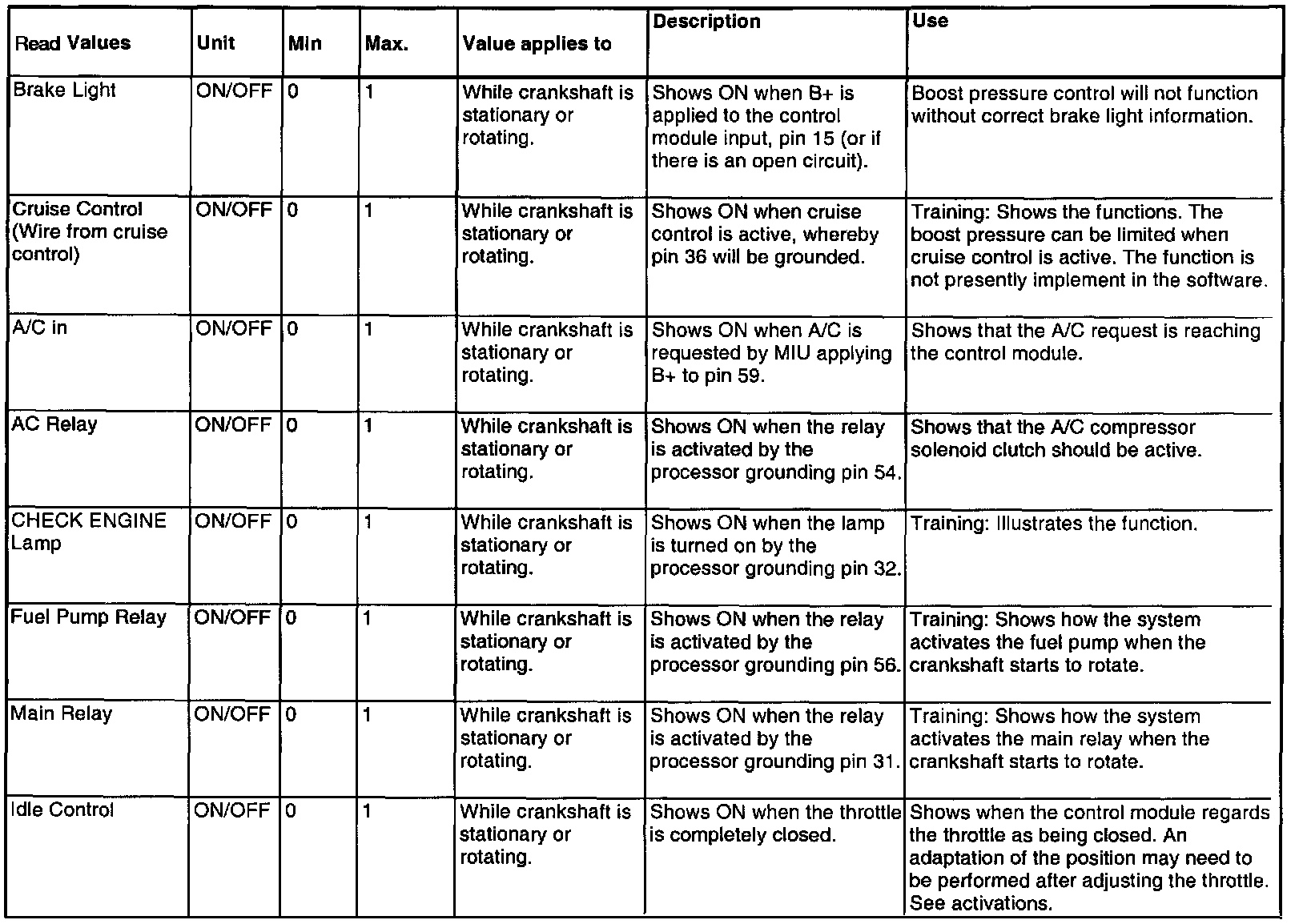

Menu Read Values

Part 1:

Part 2:

Part 3:

Part 4:

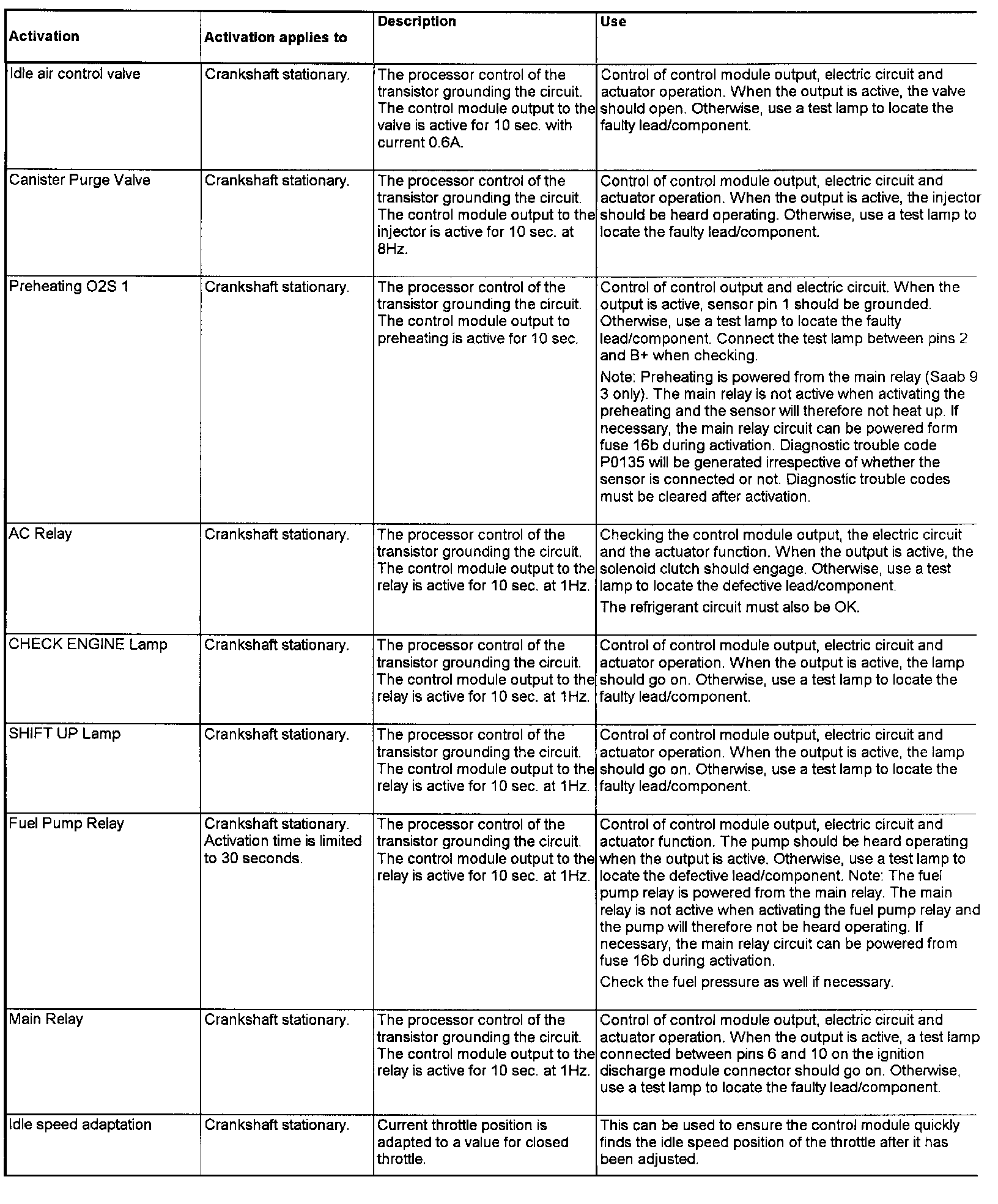

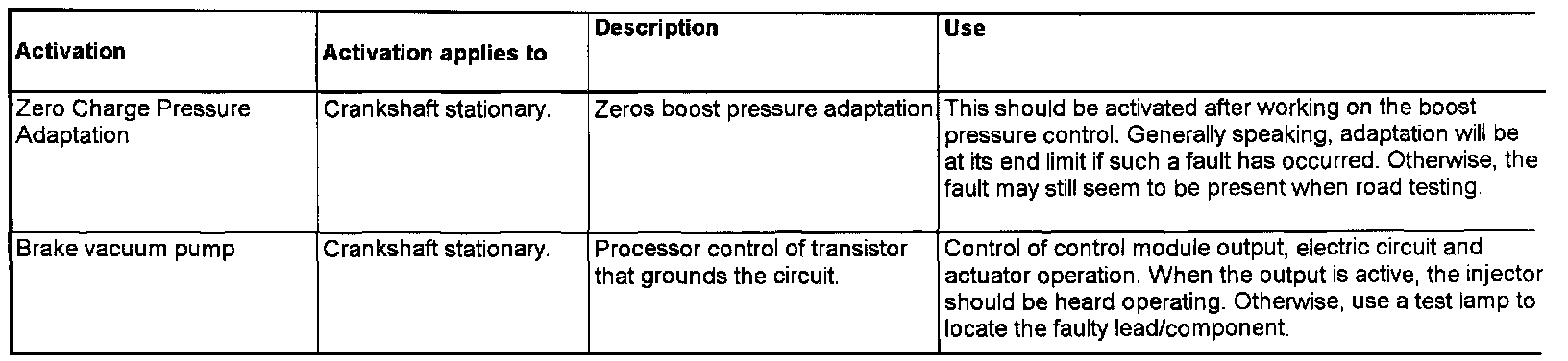

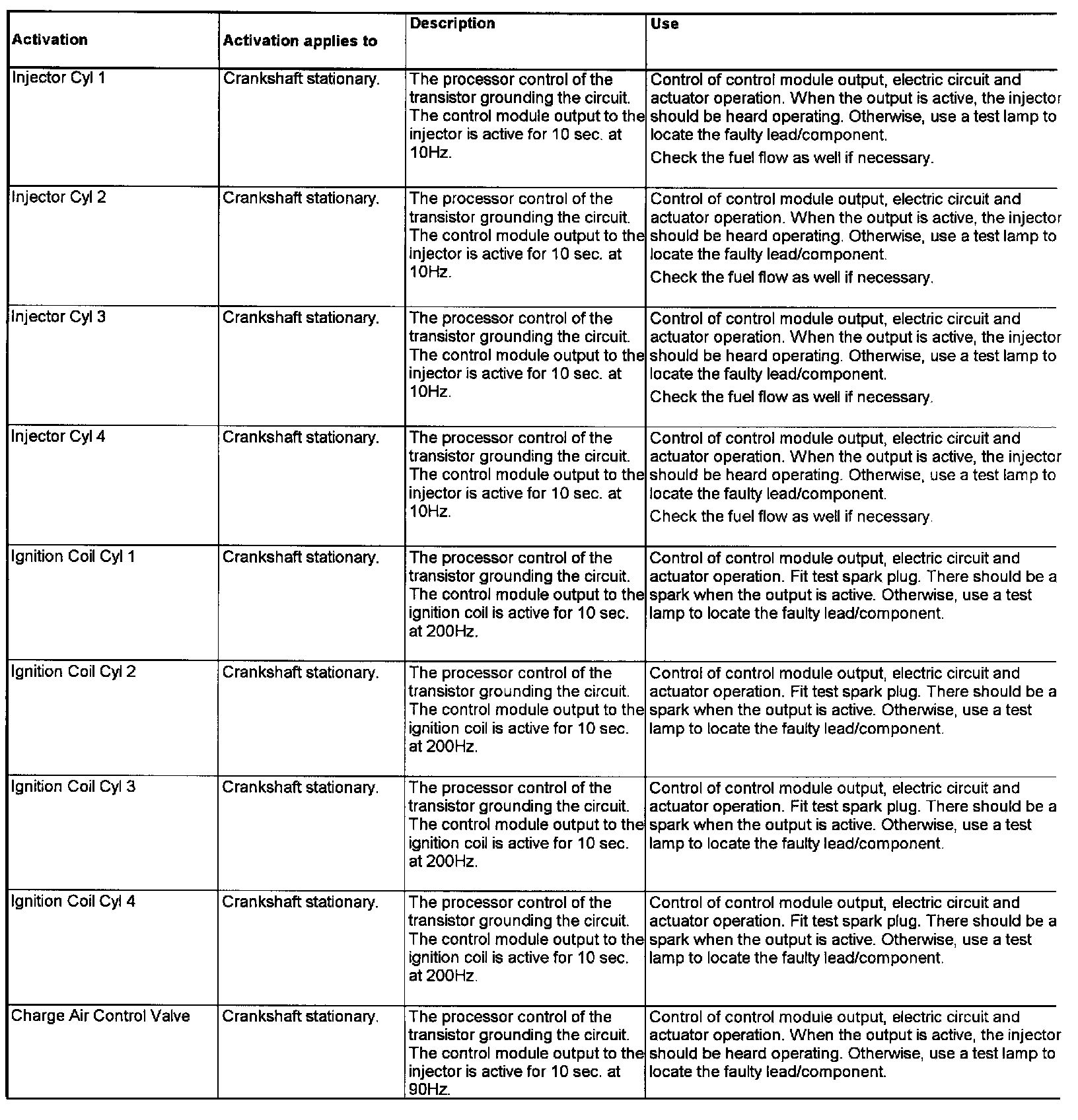

Menu Activate

Part 1:

Part 2:

Part 3:

Menu "System Information"

Text Function
SAAB Part Number: The Saab part number for the programmed control module.
Software version Number: Name of data file used to program control module
Engine variant: Engine type the program is intended for
Serial Number: The control module serial number
