Read Values Menu

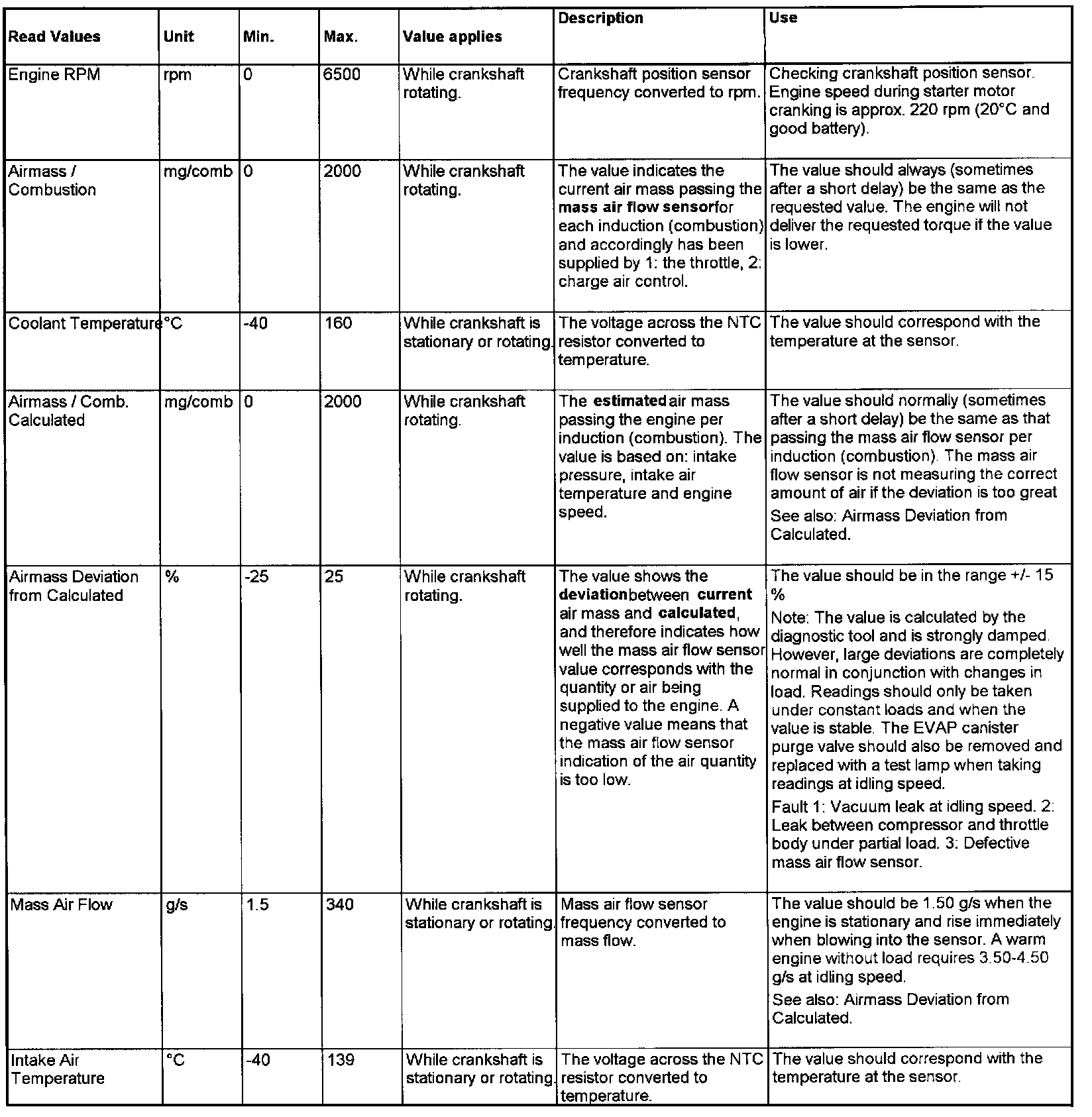

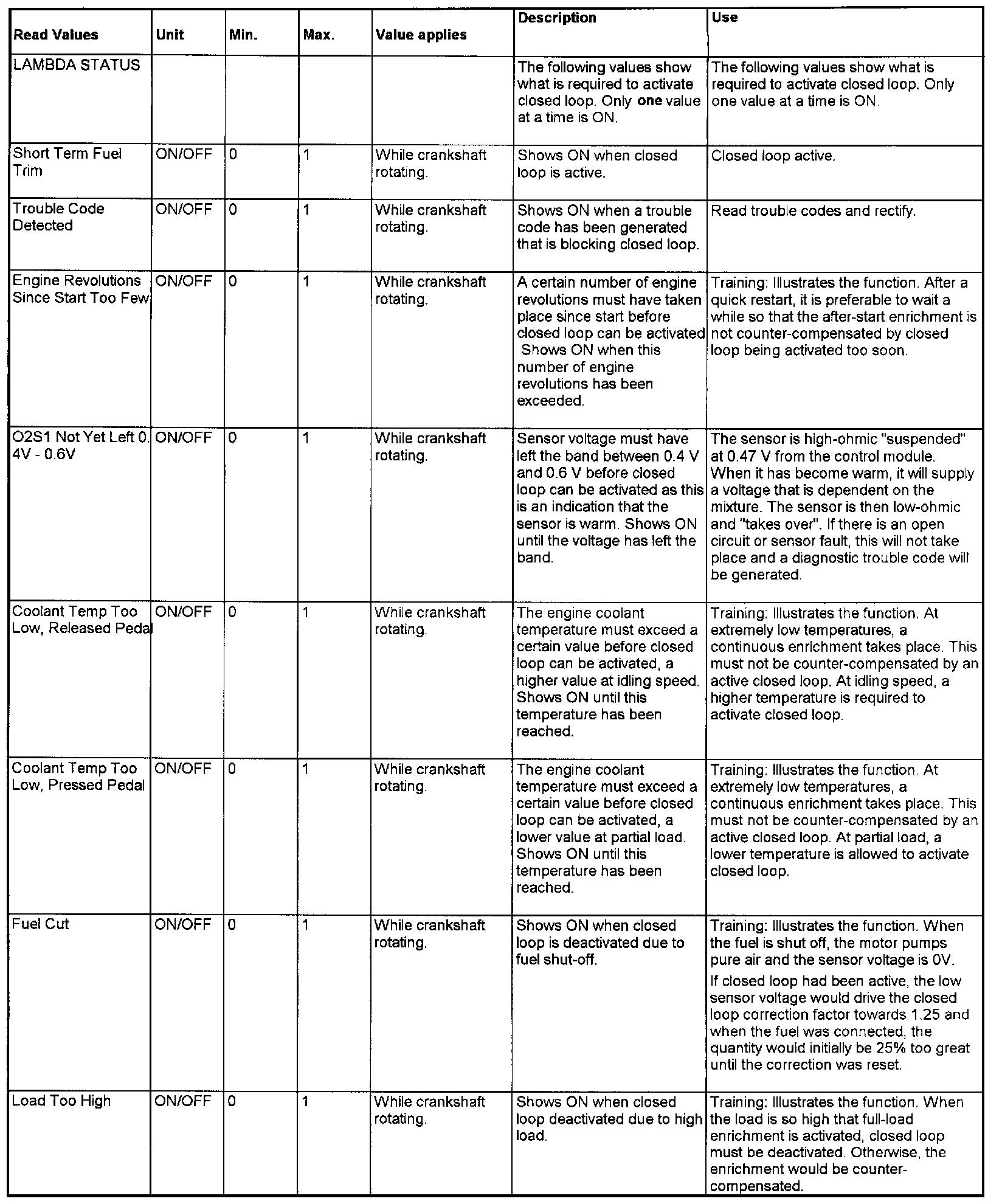

Part 1:

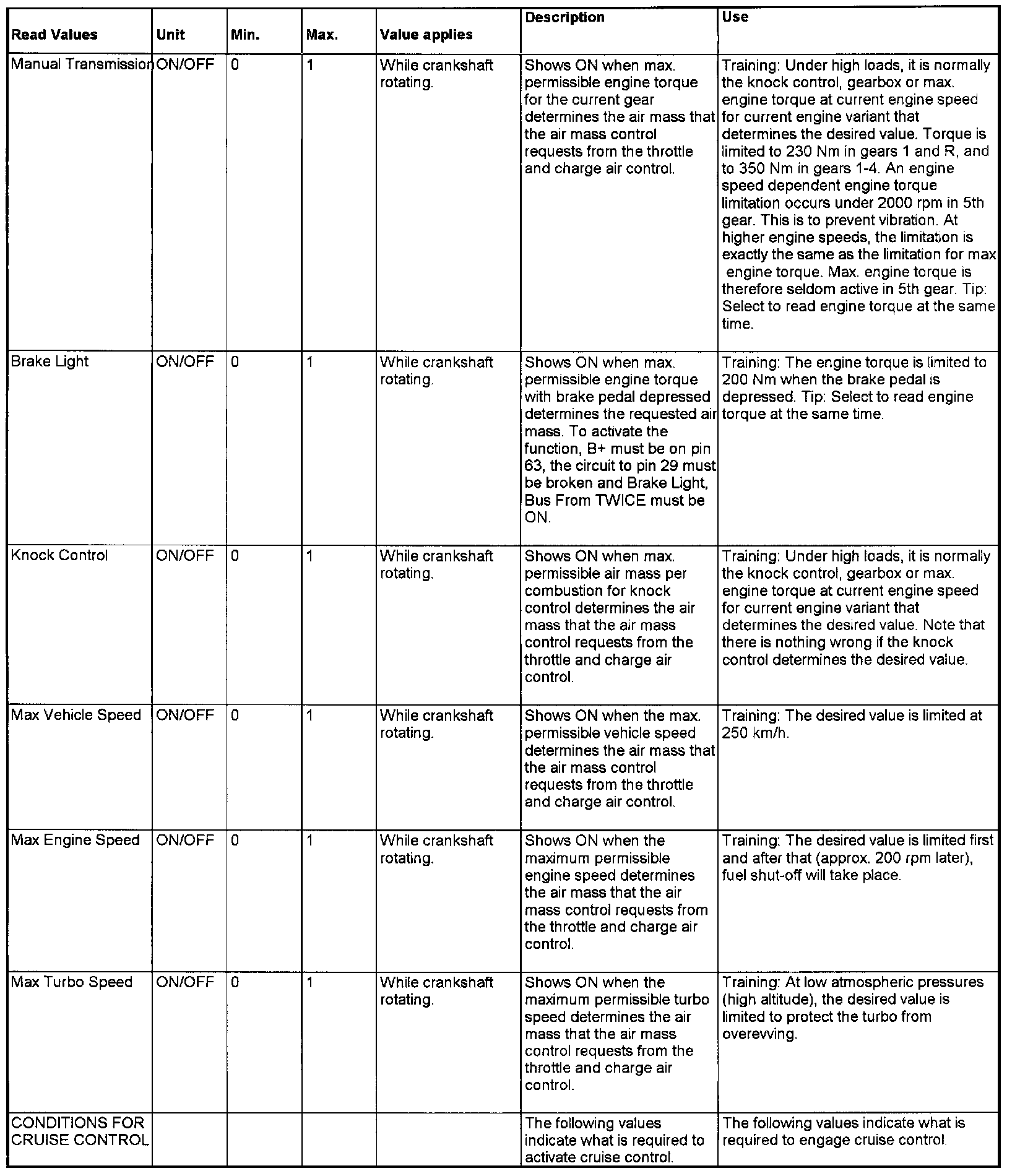

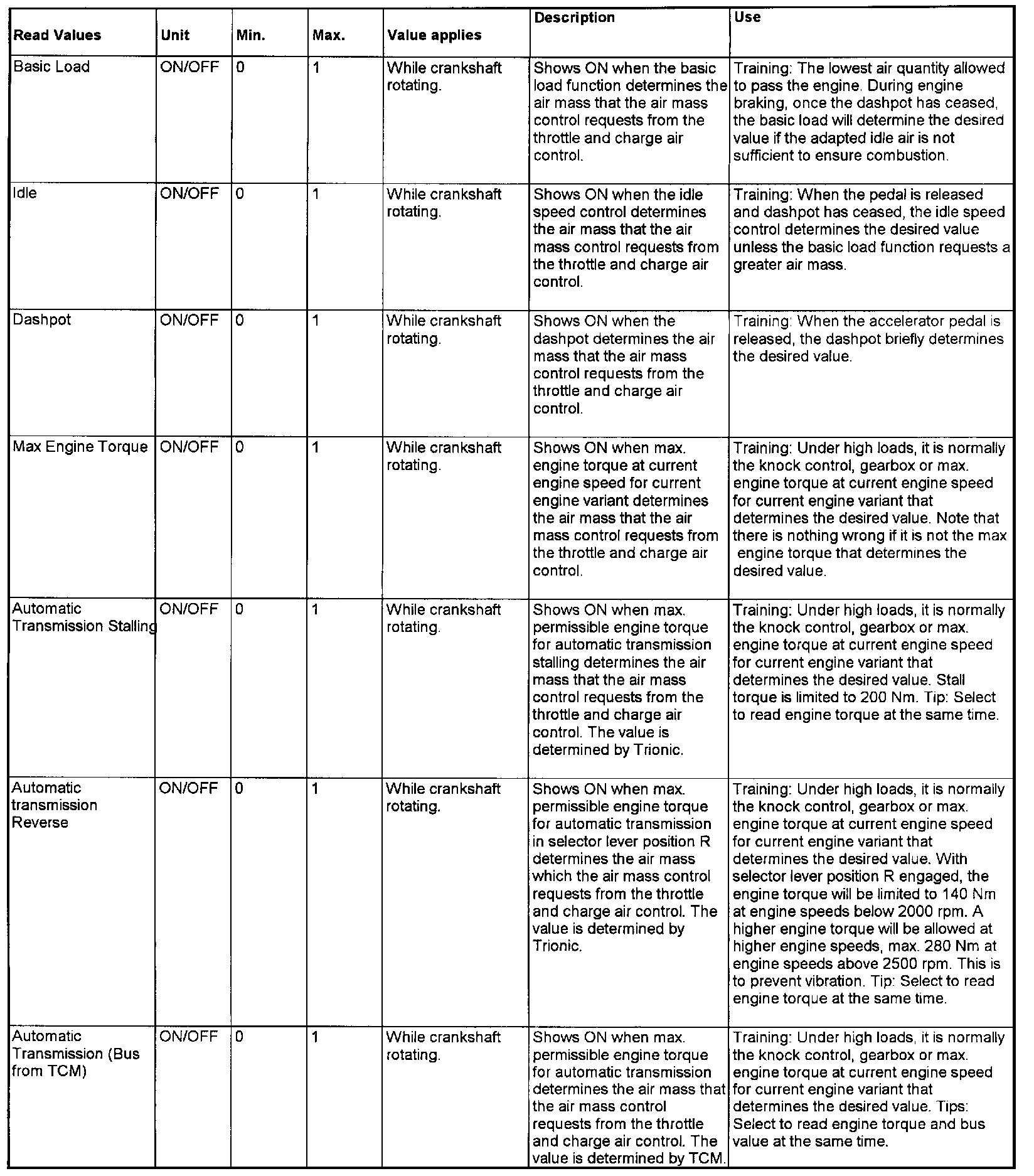

Part 2:

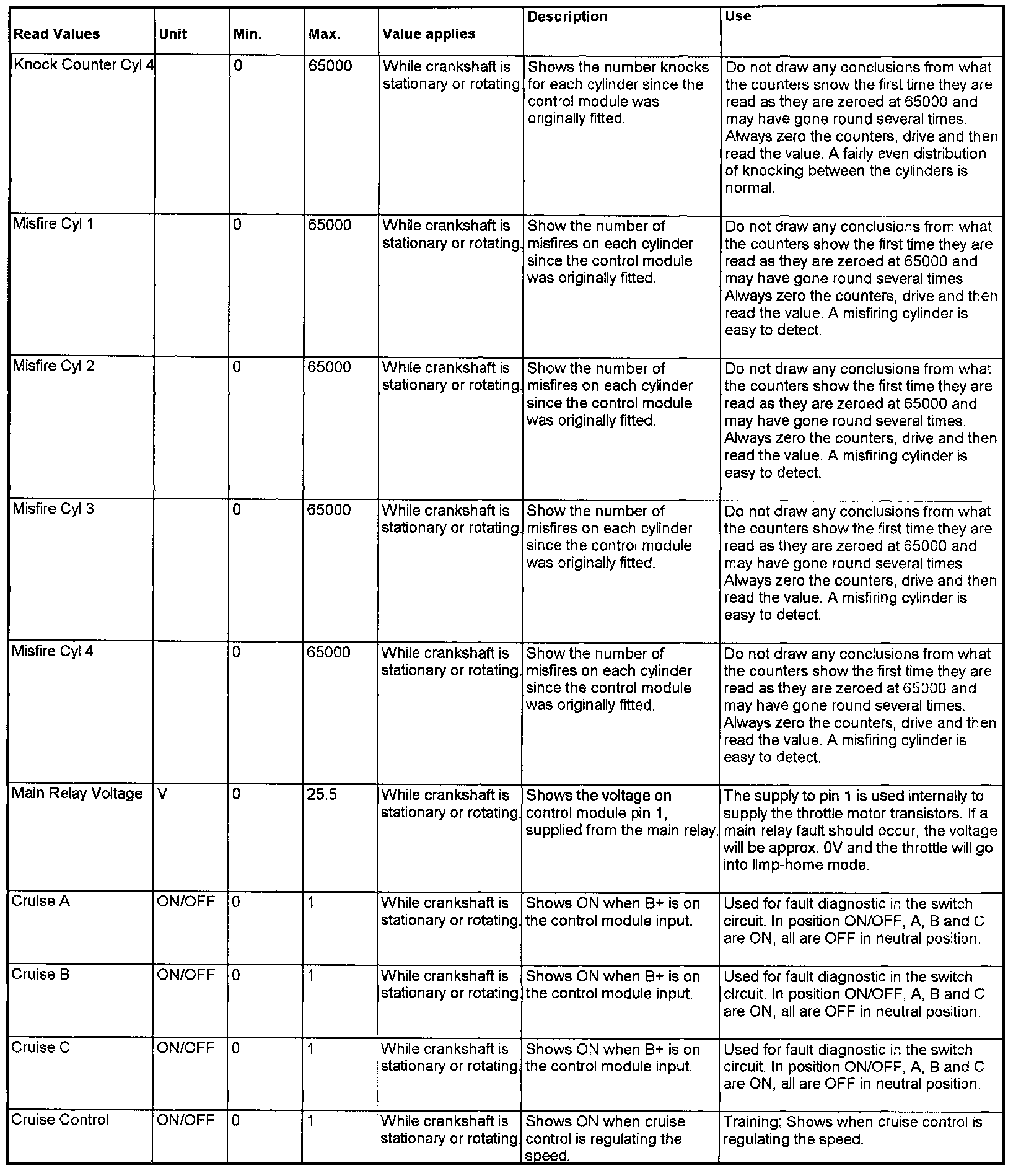

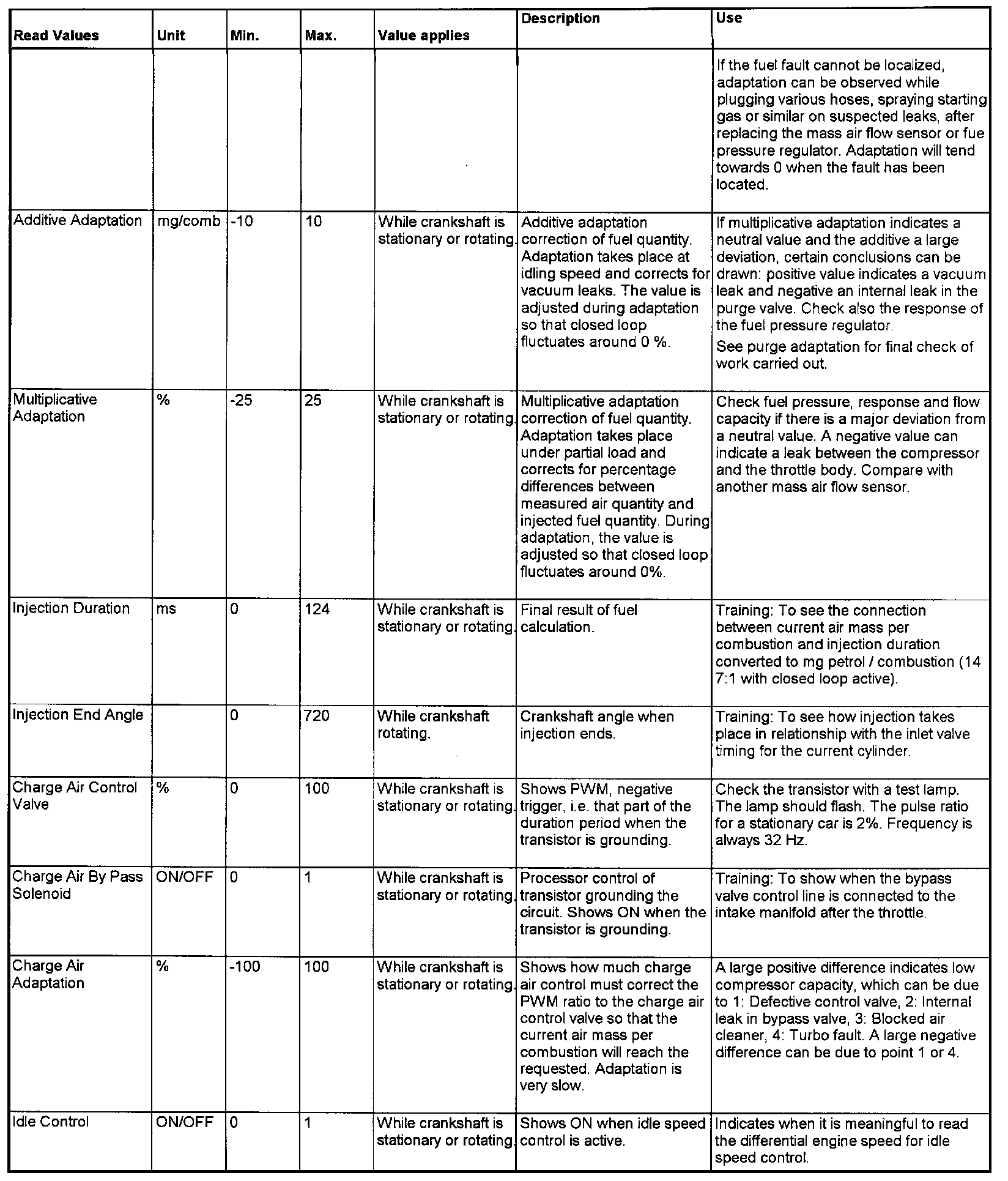

Part 3:

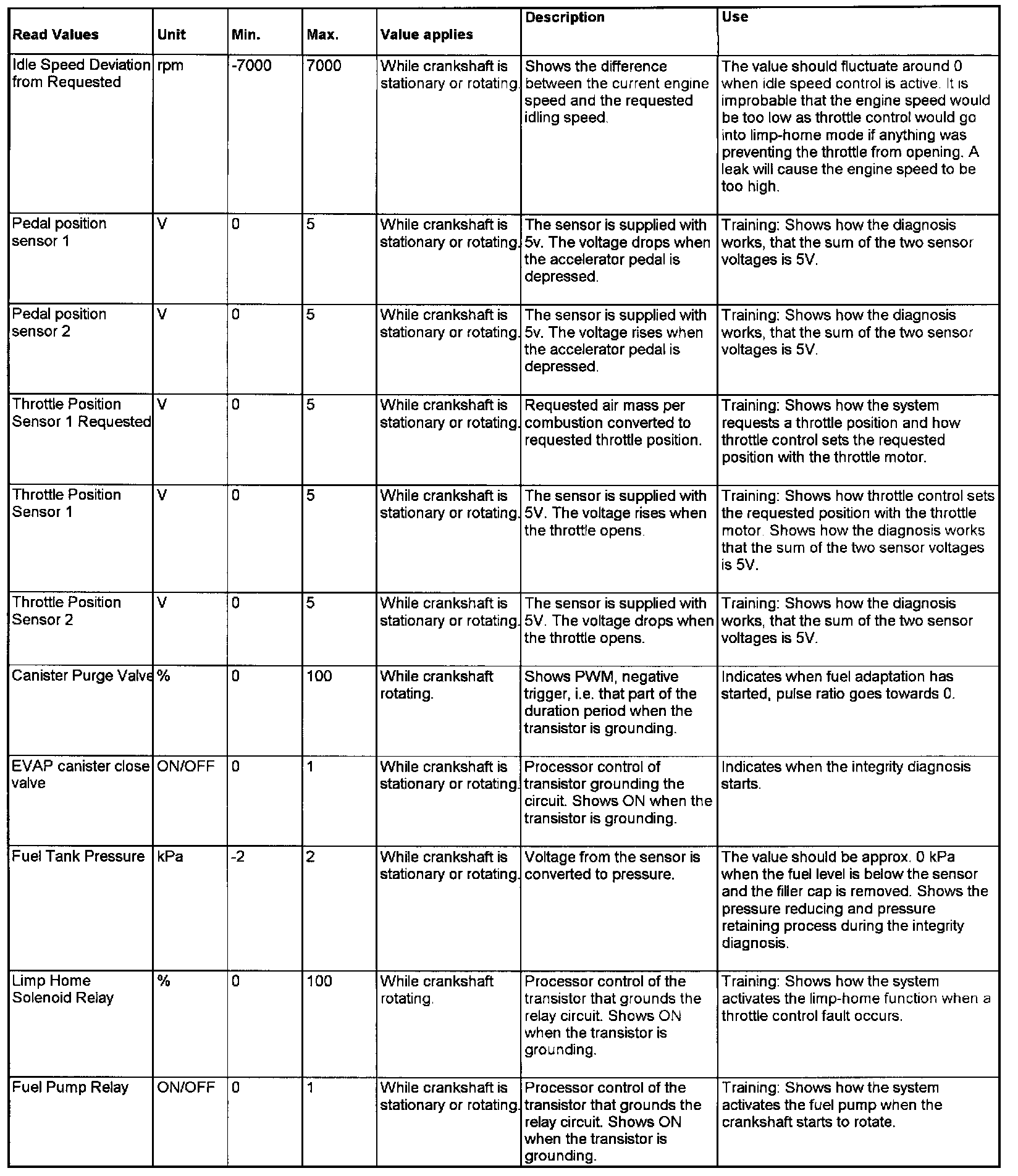

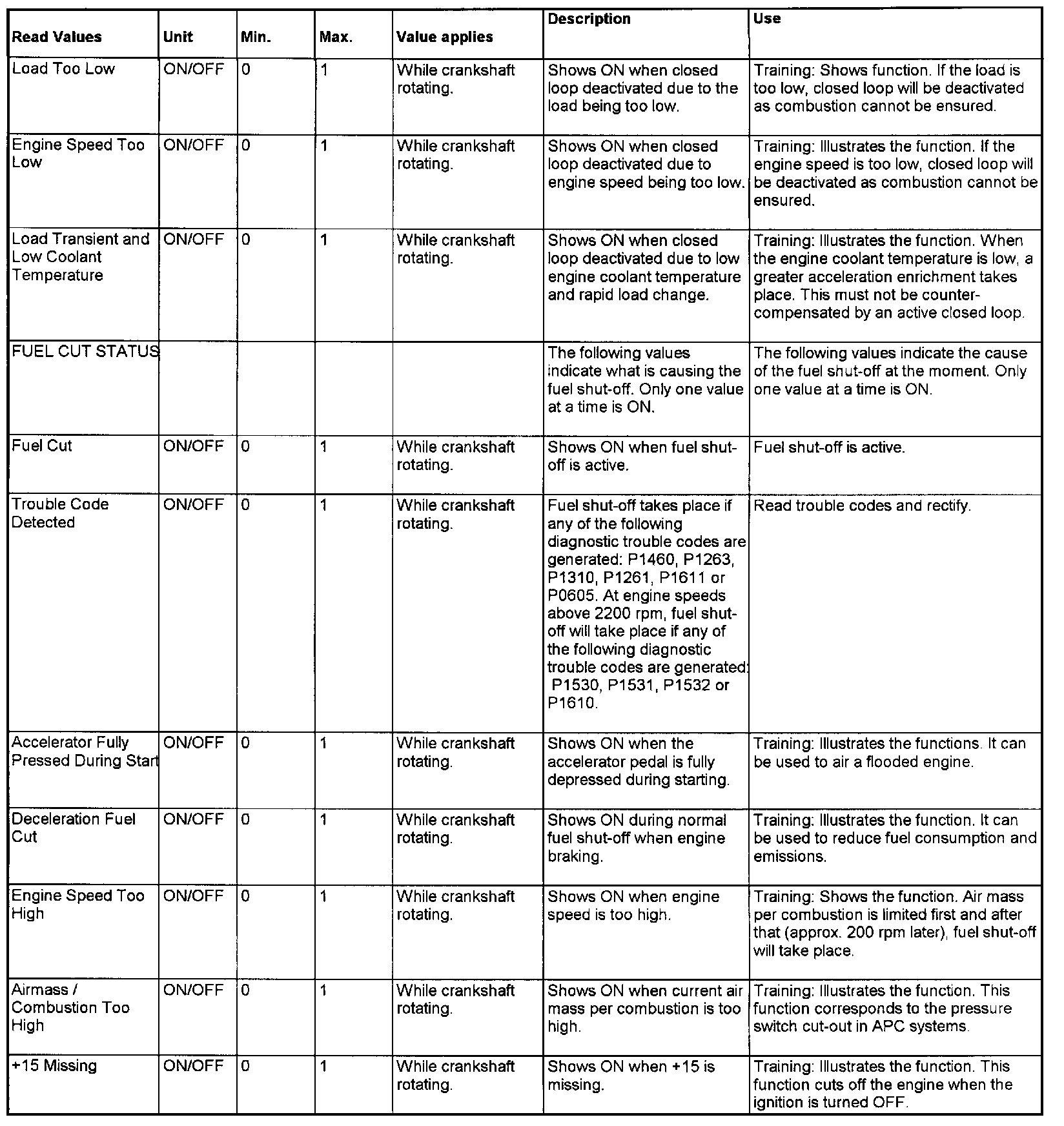

Part 4:

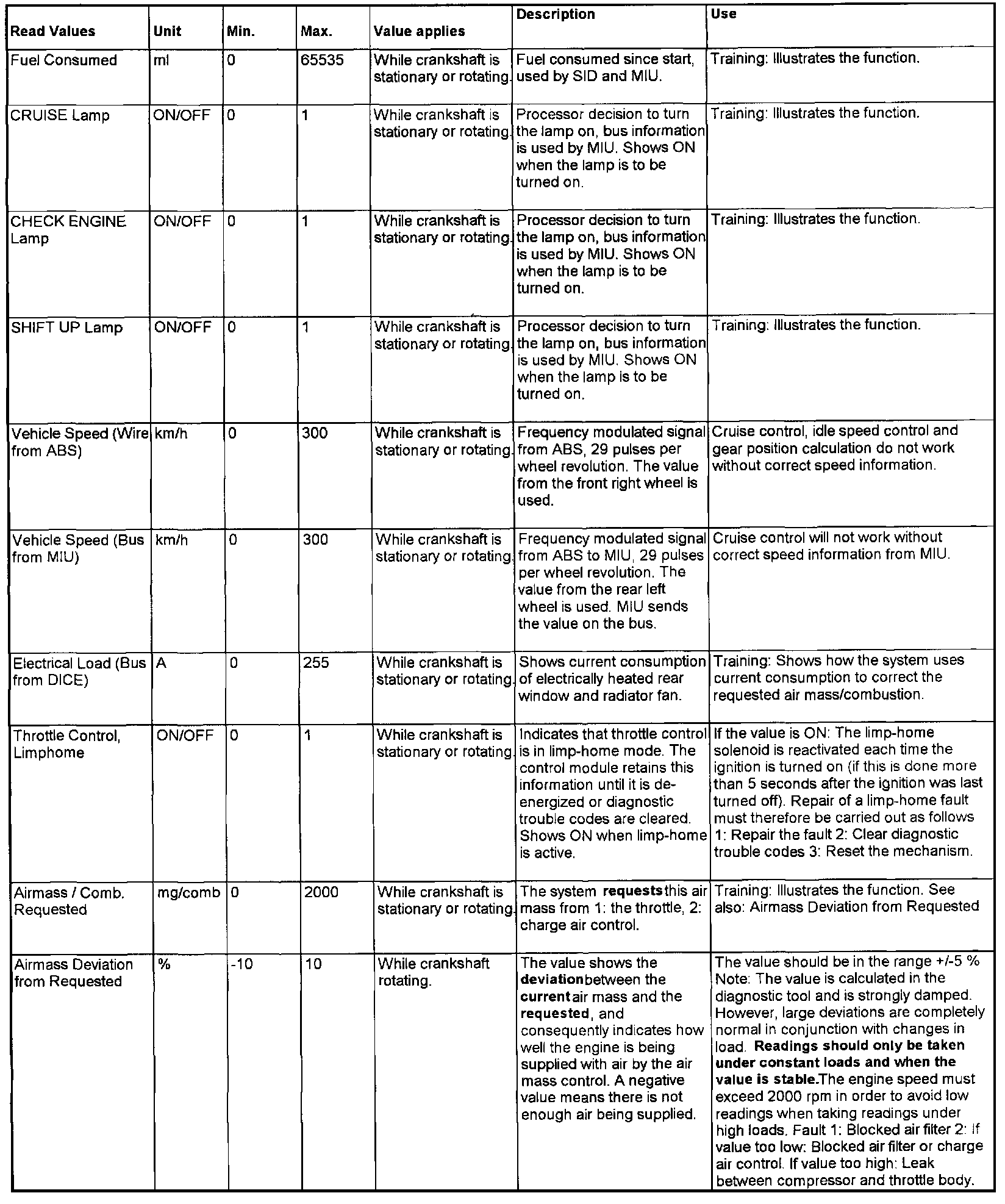

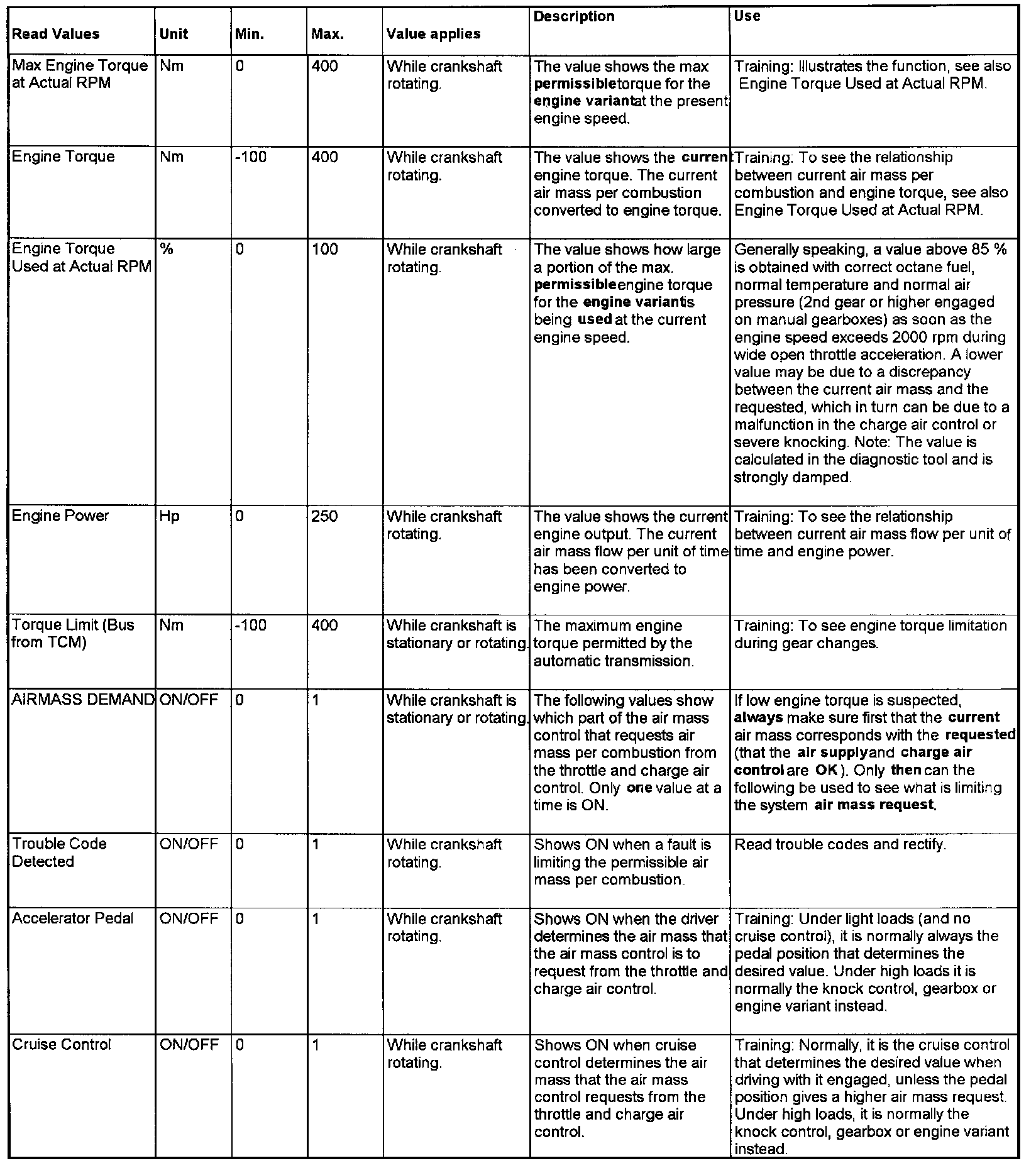

Part 5:

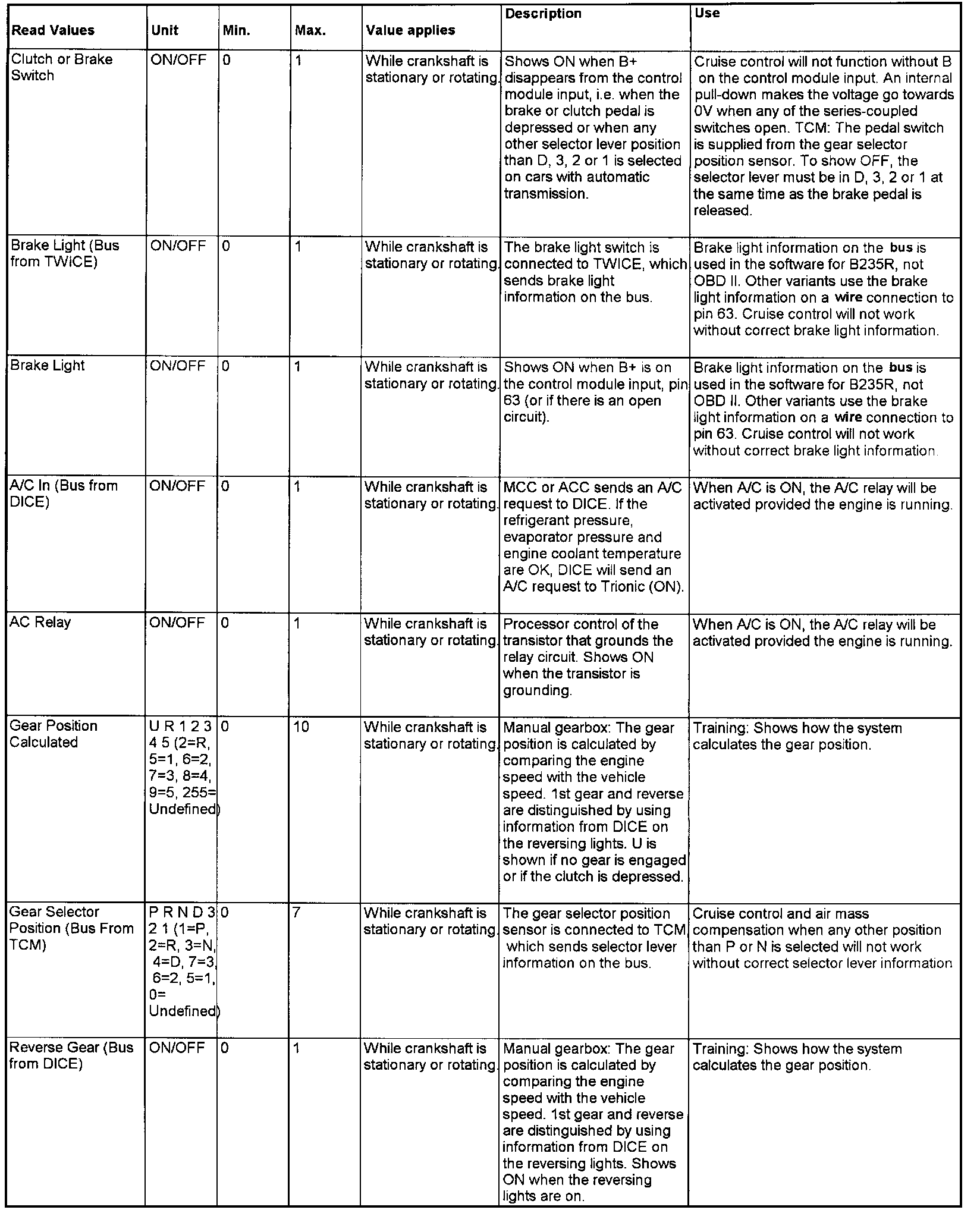

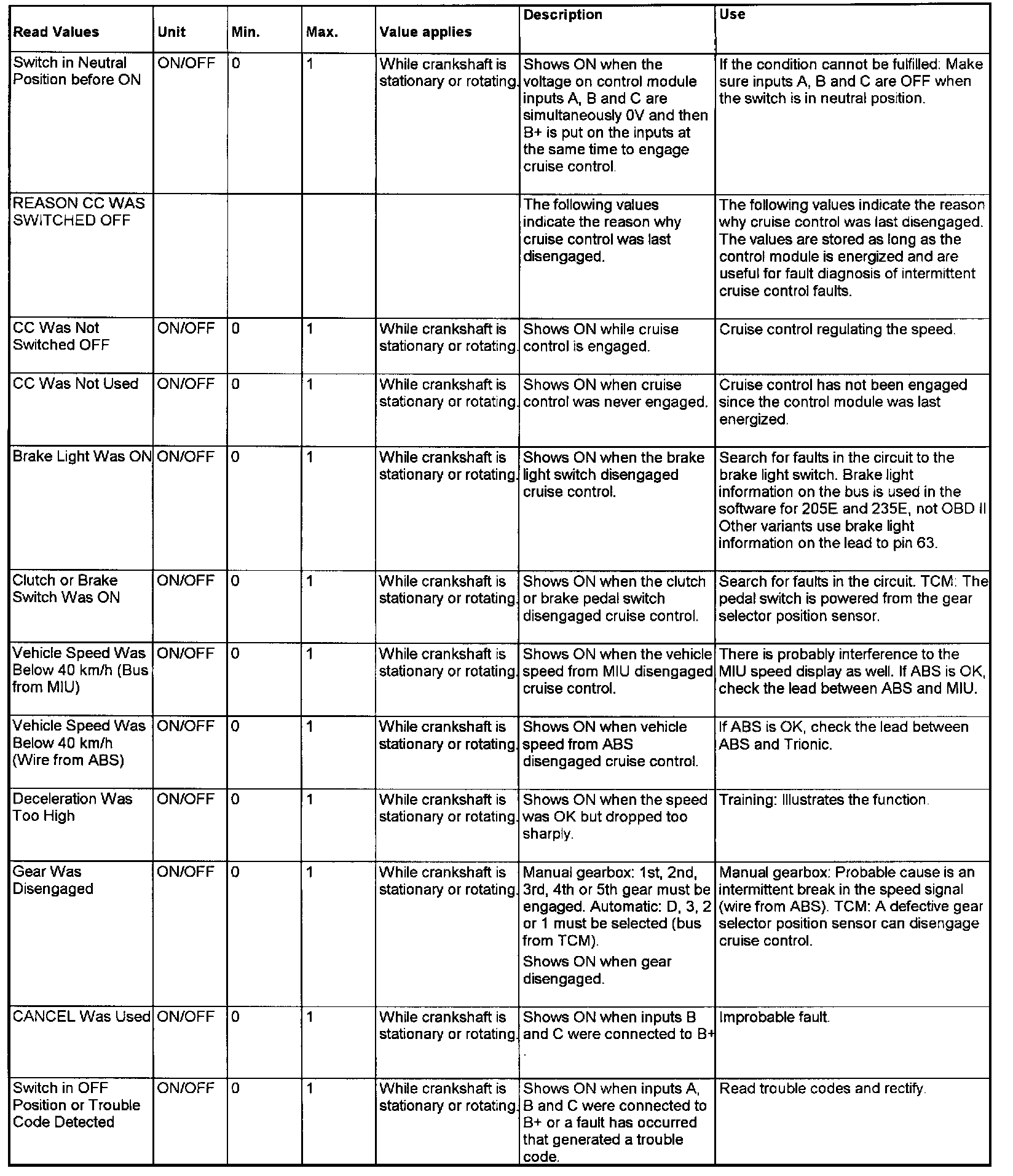

Part 6:

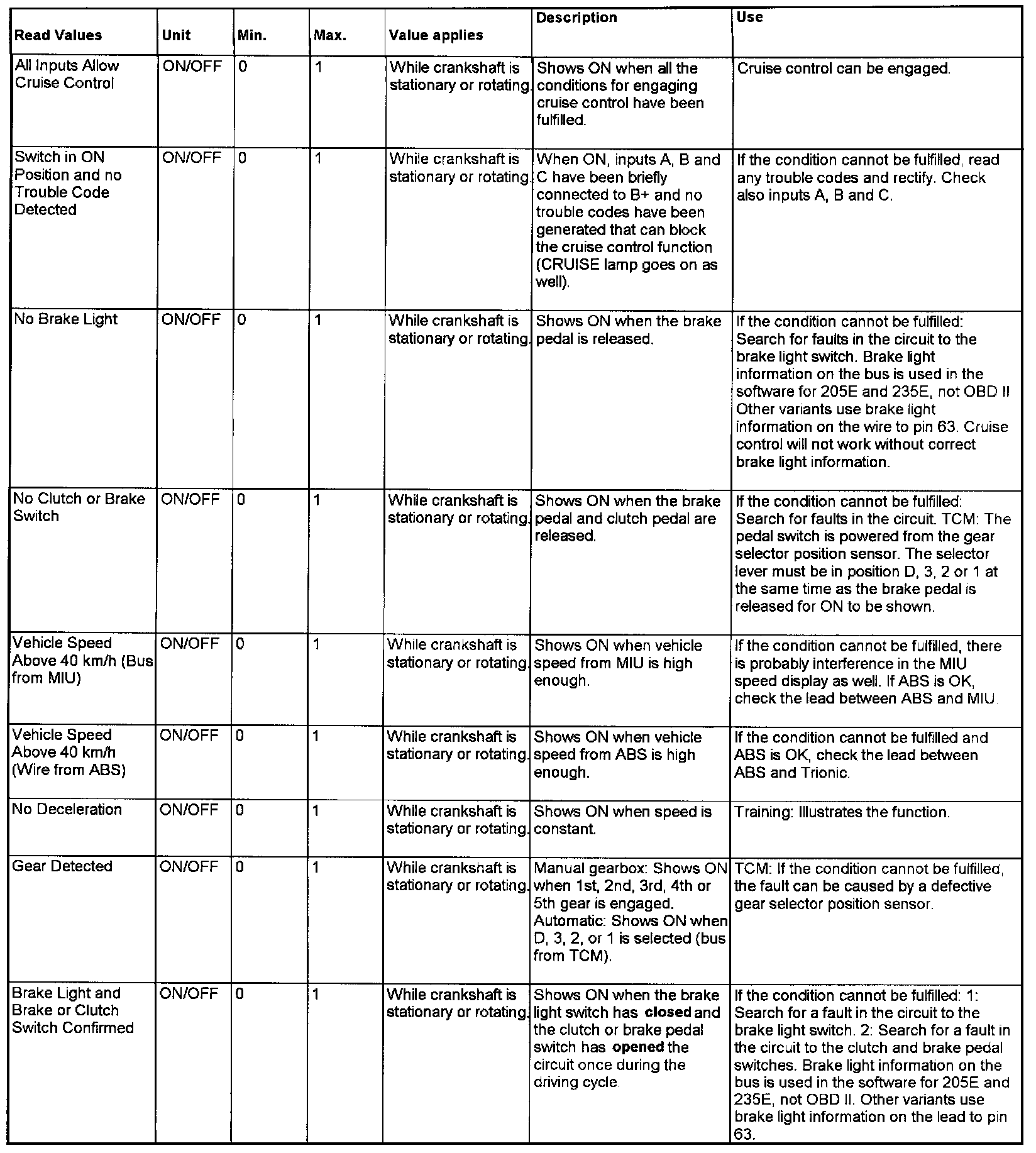

Part 7:

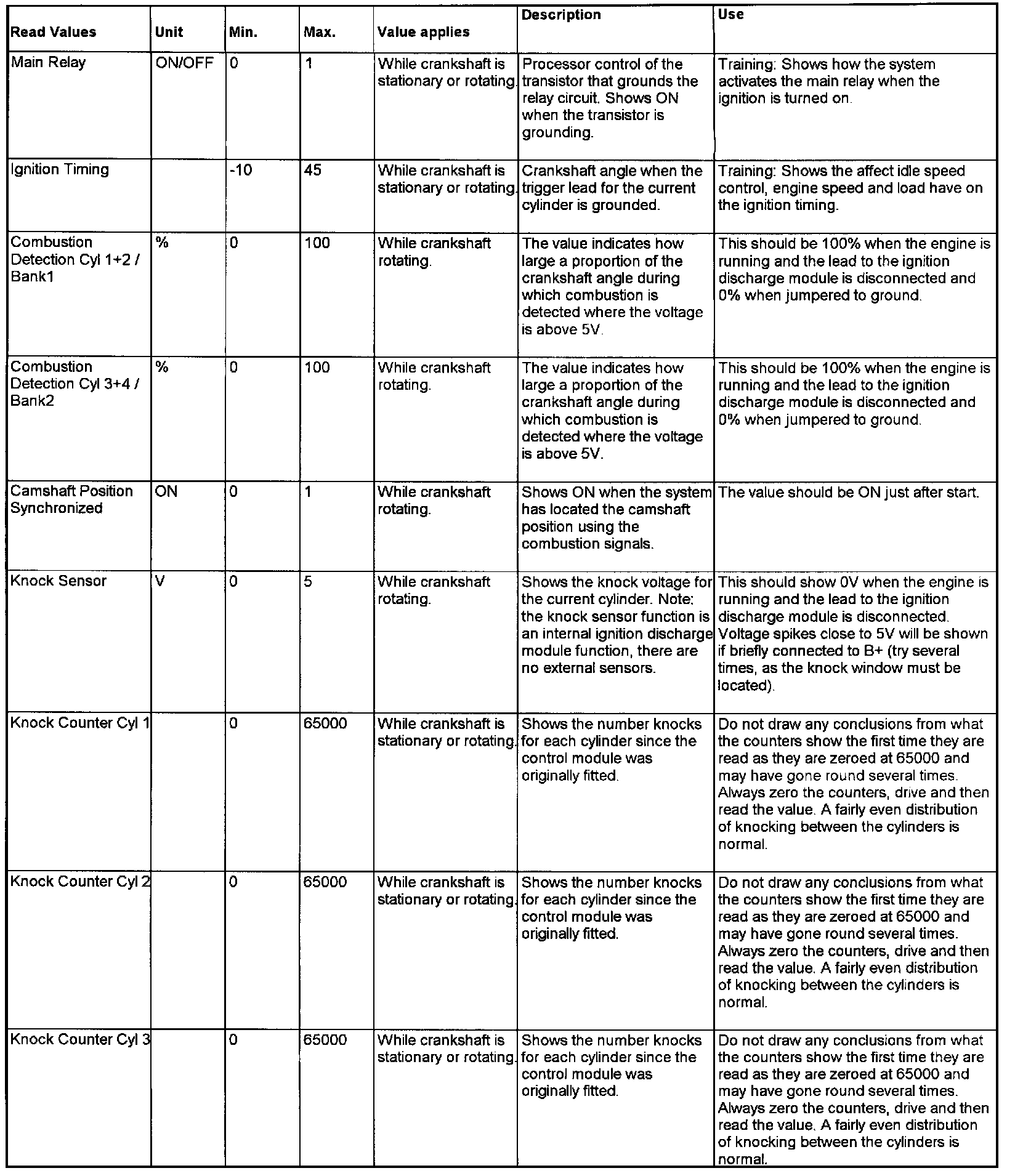

Part 8:






Part 9:






Part 10:






Part 11:






Part 12:






Part 13:






Part 14:






Part 15:
