Tech 2 Menu Structure, DTC Menu, Read Value, Activate, Sys Info

Tech 2 Menu Structure


DTCs

Read Values/Activate

Snapshot

System Information

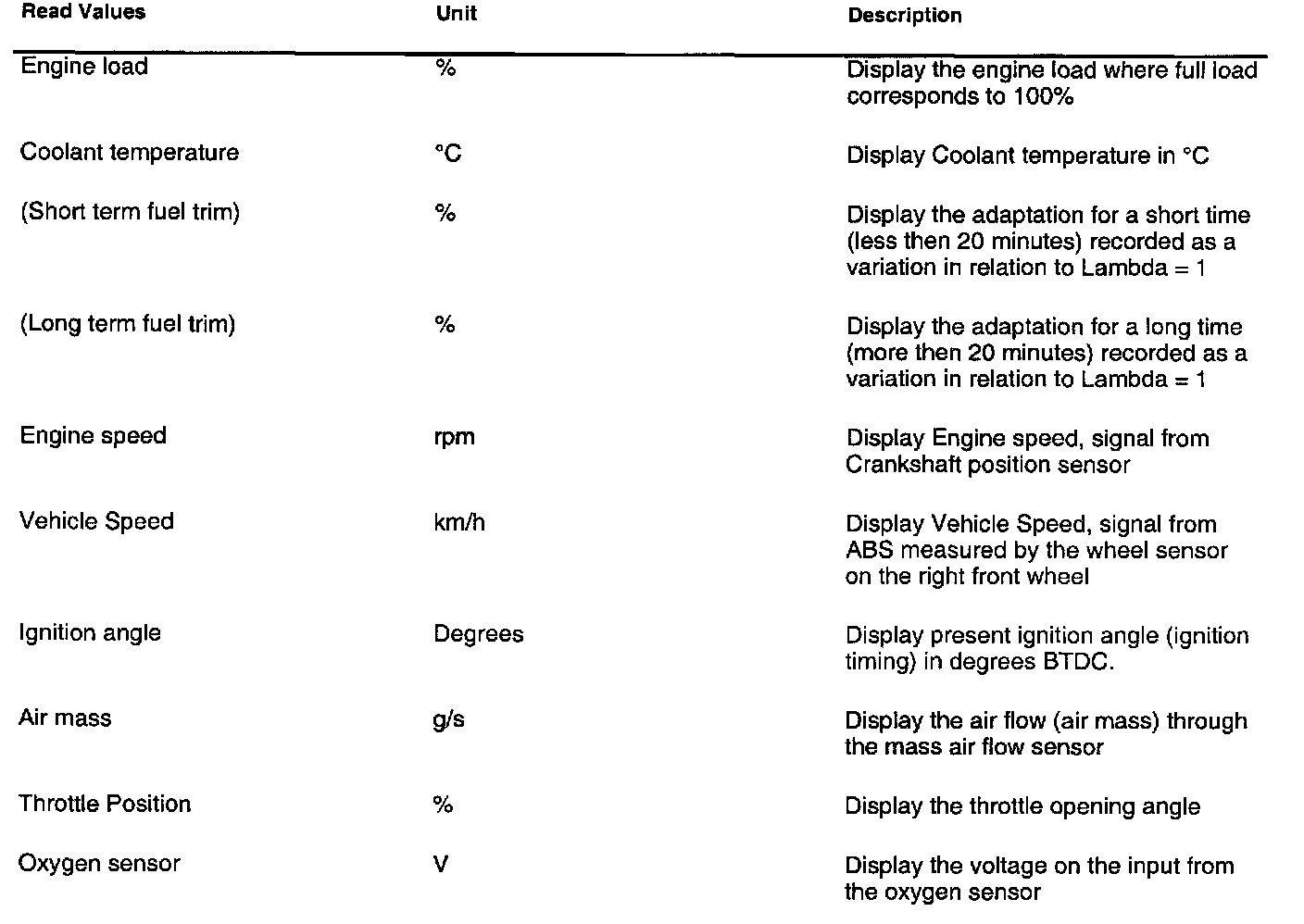

Menu "Read Values"

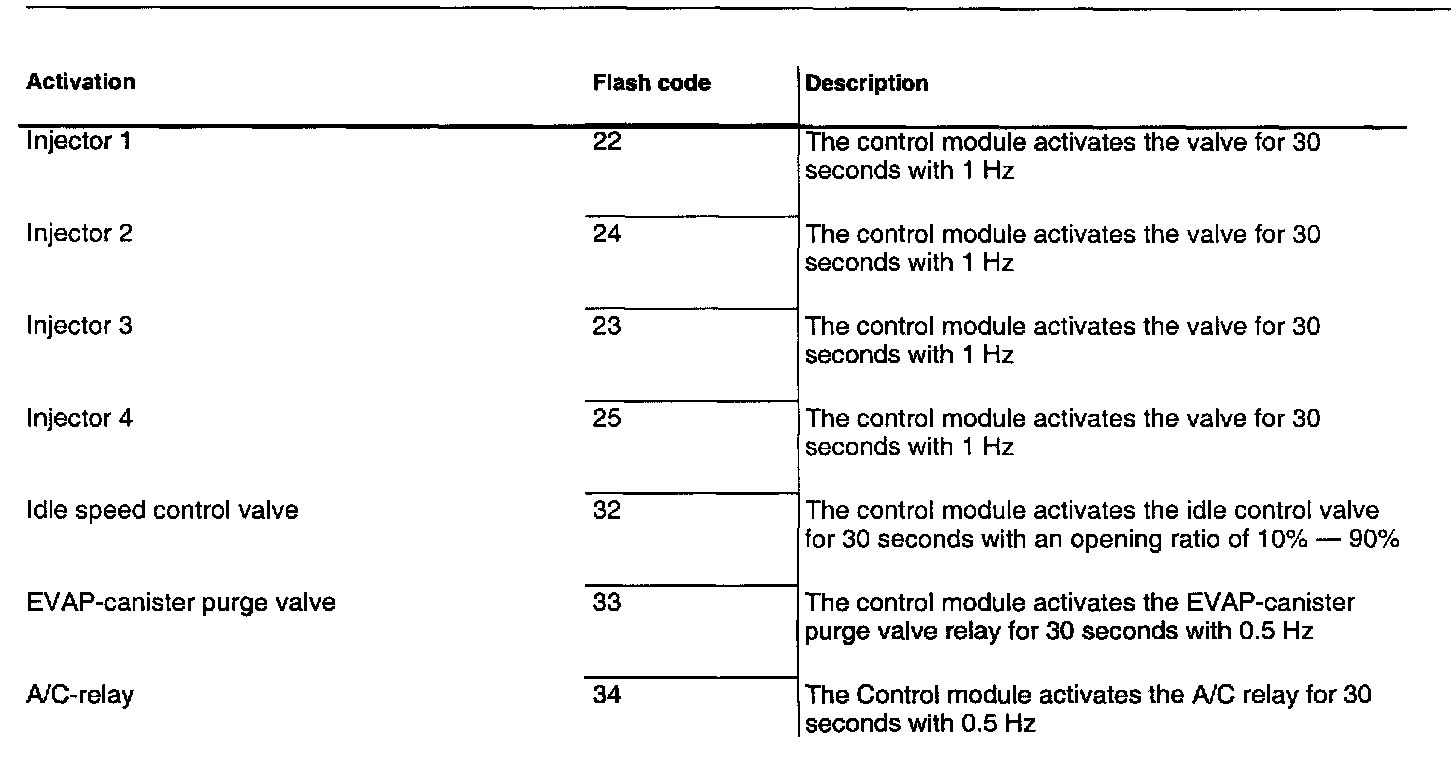

Menu "Activate"







NOTE: When a system function is activated with a diagnostic instrument this means that the Motronic control module does something that is not functionally normal, whereby diagnostic trouble codes can be generate in other systems that are dependant on the Motronic system.
The injectors are activated in the following order 1-3-4-2 and the CHECK ENGINE lamp (MIL) flashes during the activating stage.


IMPORTANT
The activating functions should be used with care.
- Always deactivate an active function before you continue in the menus.
- Always clear any generated Diagnostic Trouble Codes (DTC) in the Motronic system, and/or possibly other systems, after completed work.
- At the same time as activating the components in the table, the flash codes will be displayed via the CHECK ENGINE lamp (MIL) and thereby indicating that the Motronic control module is activating the addressed commands.
