Resetting Triggered Limp-Home Solenoid

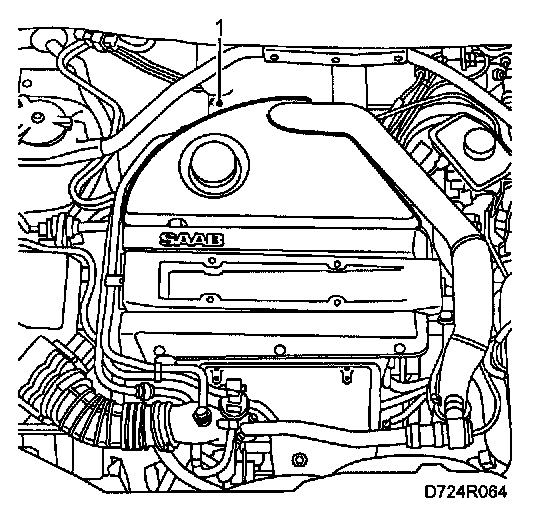

1 Remove the engine cover.

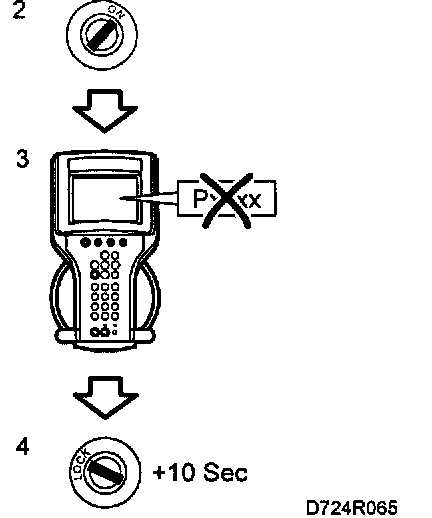

2 Put the ignition in ON position.







3 Contact Trionic with the diagnostic tool and clear diagnostic trouble code.
4 Put the ignition in the OFF position and wait 10 s.

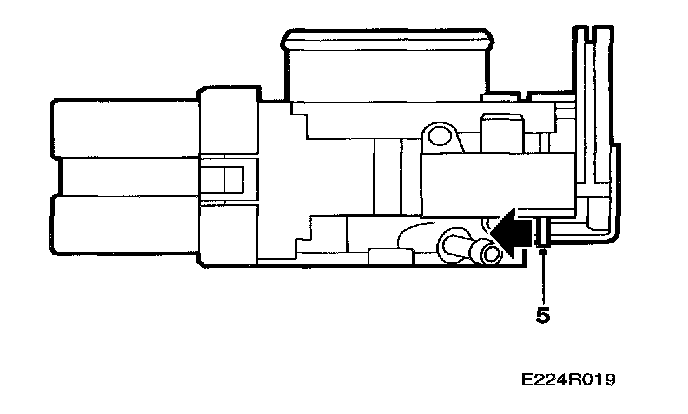

5 Carefully push the end of the spring towards the throttle body.

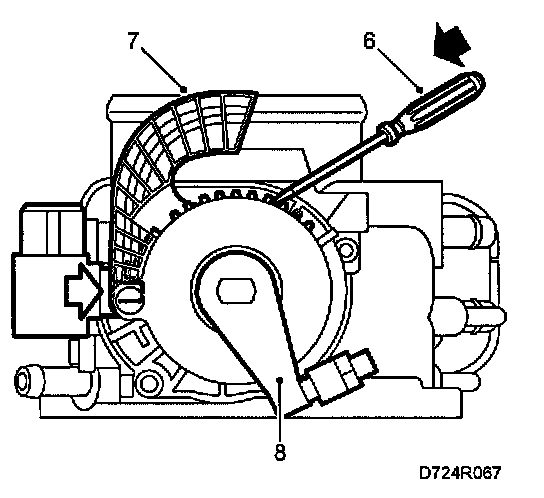

6 Rotate the black tooth disc anti-clockwise with a screwdriver. A click will be heard in its end position.







7 Rotate the pedal arm clockwise.
8 Make sure the throttle arm does not follow with the pedal arm when it is rotated.
