Control Module




1 To remove Turn off the ignition.

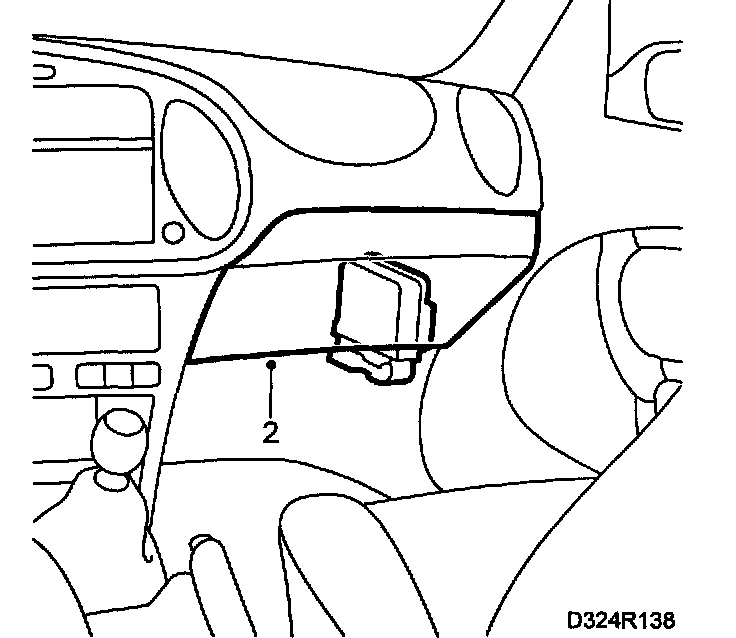

2 Remove the glove box.
3 Fold back the carpet.







4 Unplug the connector and remove the screw securing the control module. Remove the control module.

To fit

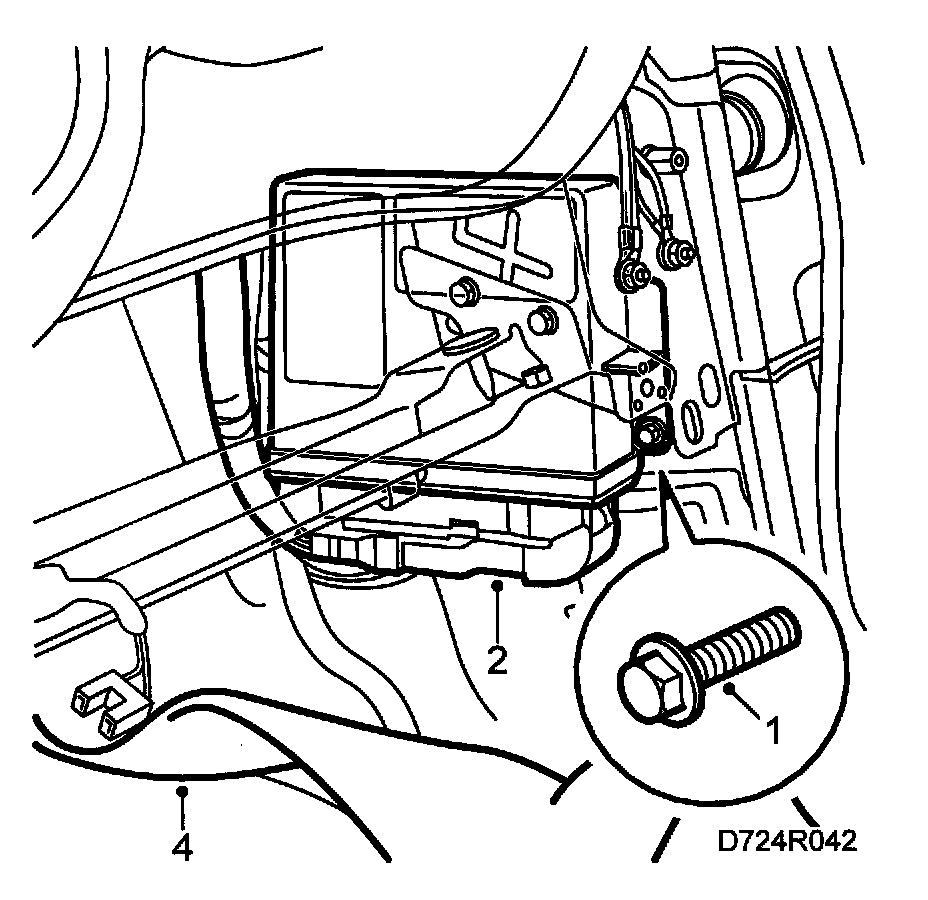

1 Fit the control module, one screw.







2 Plug in the connector
3 Make sure the engine can be started.
4 Replace the carpet.

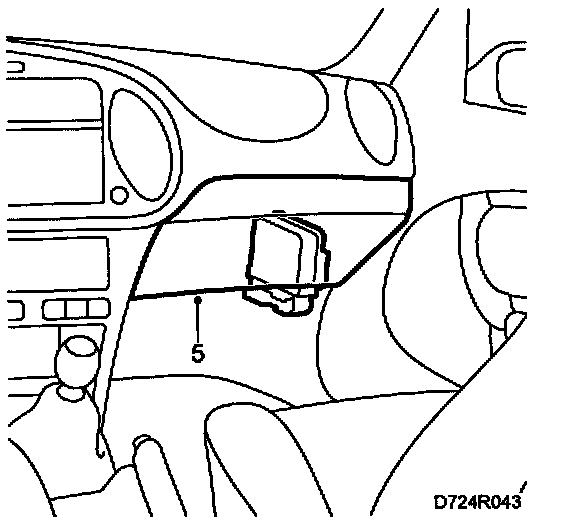

5 Fit the glove box.







6 Reset the immobilizer as follows:
- Connect Tech2 and turn the ignition to ON
- Select Body and TWICE
- Select Immobilizer. After 10 seconds, the immobilizer is programmed.
