Switch, Cruise Control

To remove
1 Pull out the steering wheel to its outermost position.

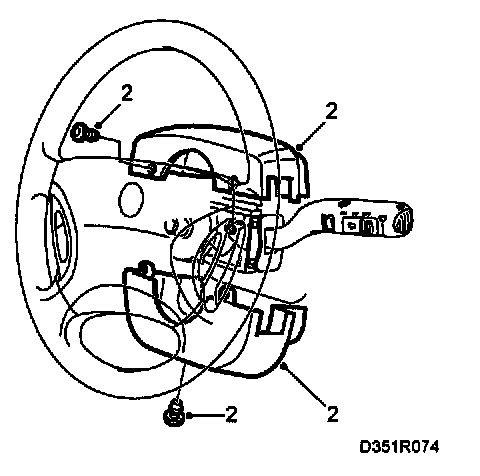

2 Remove the covers on the steering column bearing bracket (3 screws).


NOTE: Take care, as there are 4 catches in the lower cover.

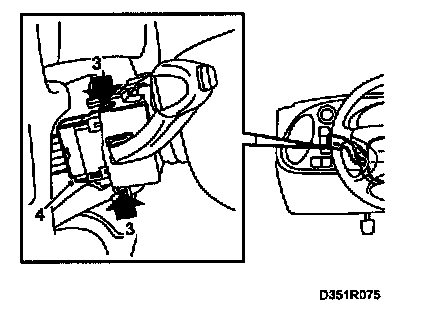

3 Pull out the dipswitch (2 clips).

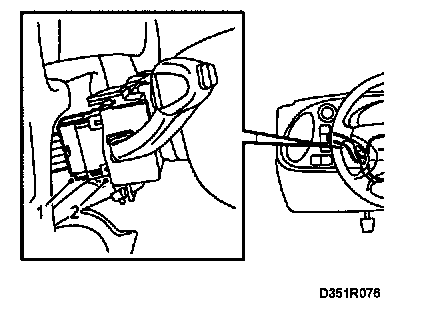

4 Unplug the 10-pin connector.
5 Remove the switch.

To fit







1 Position the switch.
2 Spray the connector with Kontakt 61 (part no. 30 04 520) and plug it in.
3 Fit the covers. Pay attention to the catch on the covers.







4 Adjust the cover on the steering column bearing bracket and tighten it.
5 Re-adjust the steering wheel.
