Brake Pedal Switch

To remove

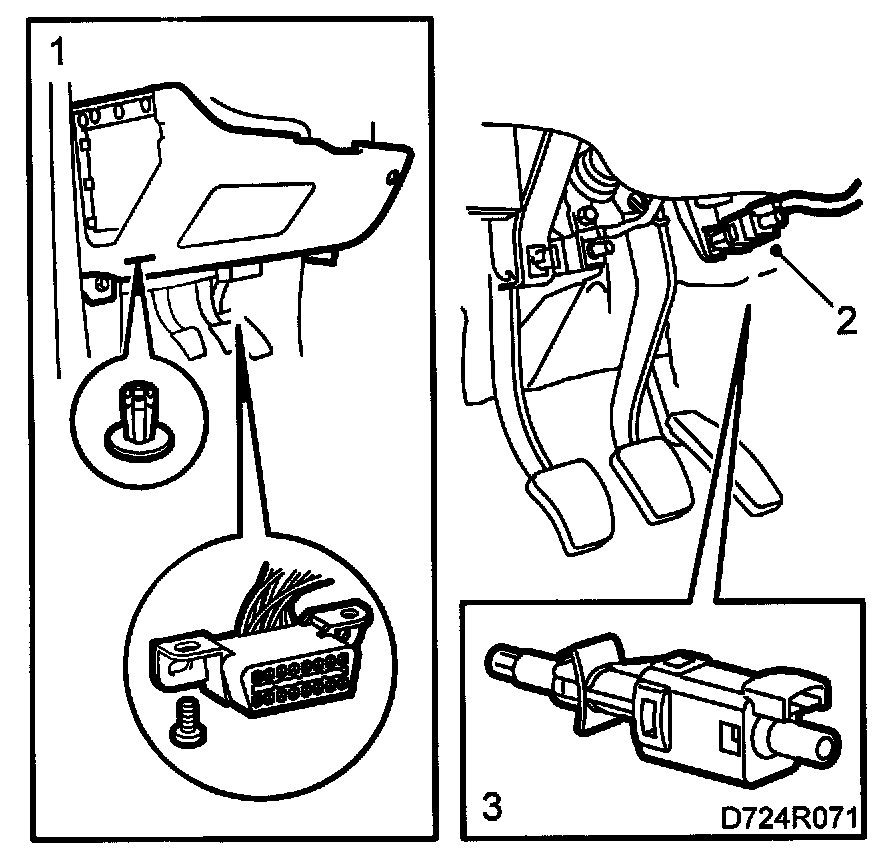

1 Remove the lower dashboard panel.







2 Unplug the brake pedal switch connector.
3 Detach the brake pedal switch with a screwdriver.

To fit







1 Spray the connector with Kontakt 61 (part no. 30 04 520).
2 Carefully pull out the switch pushrod to its end position.
3 Depress the brake pedal and fit the switch.
4 Carefully release the pedal.
5 Plug in the connector.
6 Fit the lower dashboard panel.
