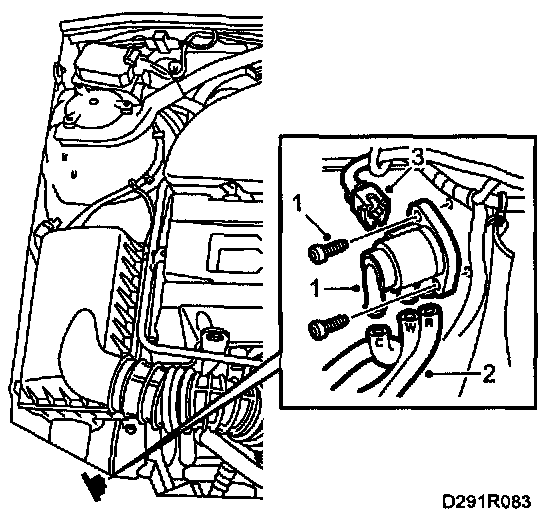

Boost Pressure Control Valve

To remove







1 Unplug the control valve connector
2 Detach the control valve hoses.
3 Remove the bolts securing the control valve to the body.

To fit







1 Position the control valve and tighten the screws.
2 Reconnect the control hoses to their respective nipples.
3 Plug in the control valve connector.
