Trionic Control Module

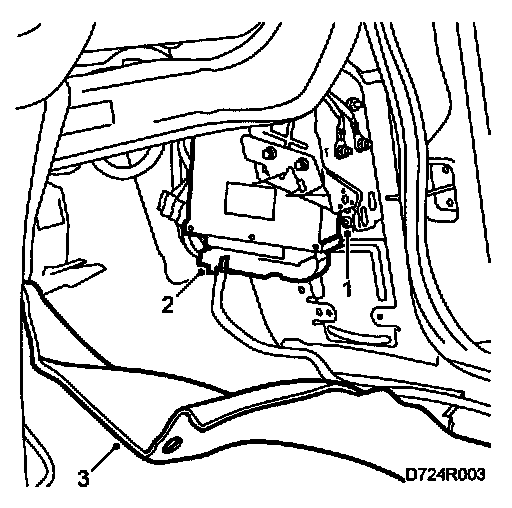

To remove







1 Make sure the ignition is off.
2 Remove the glove box.
3 Fold back the carpet and remove the central locking system relay.







4 Unplug the connector and remove the control module.

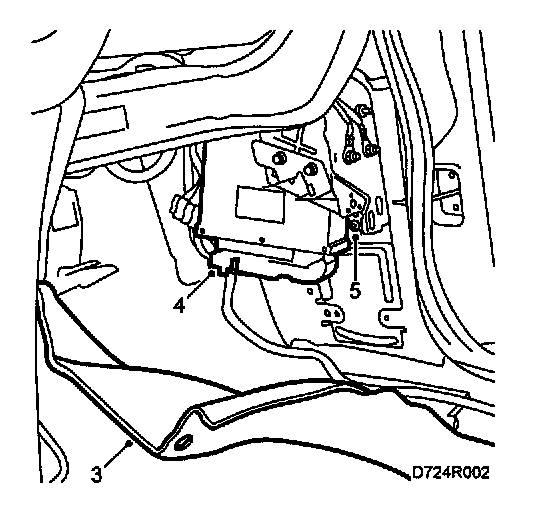

To fit







1 Fit the control module.
2 Plug in the connector.
3 Fit the central locking system relay.







4 Refit the glove box.
