Ignition Distributor Rotor

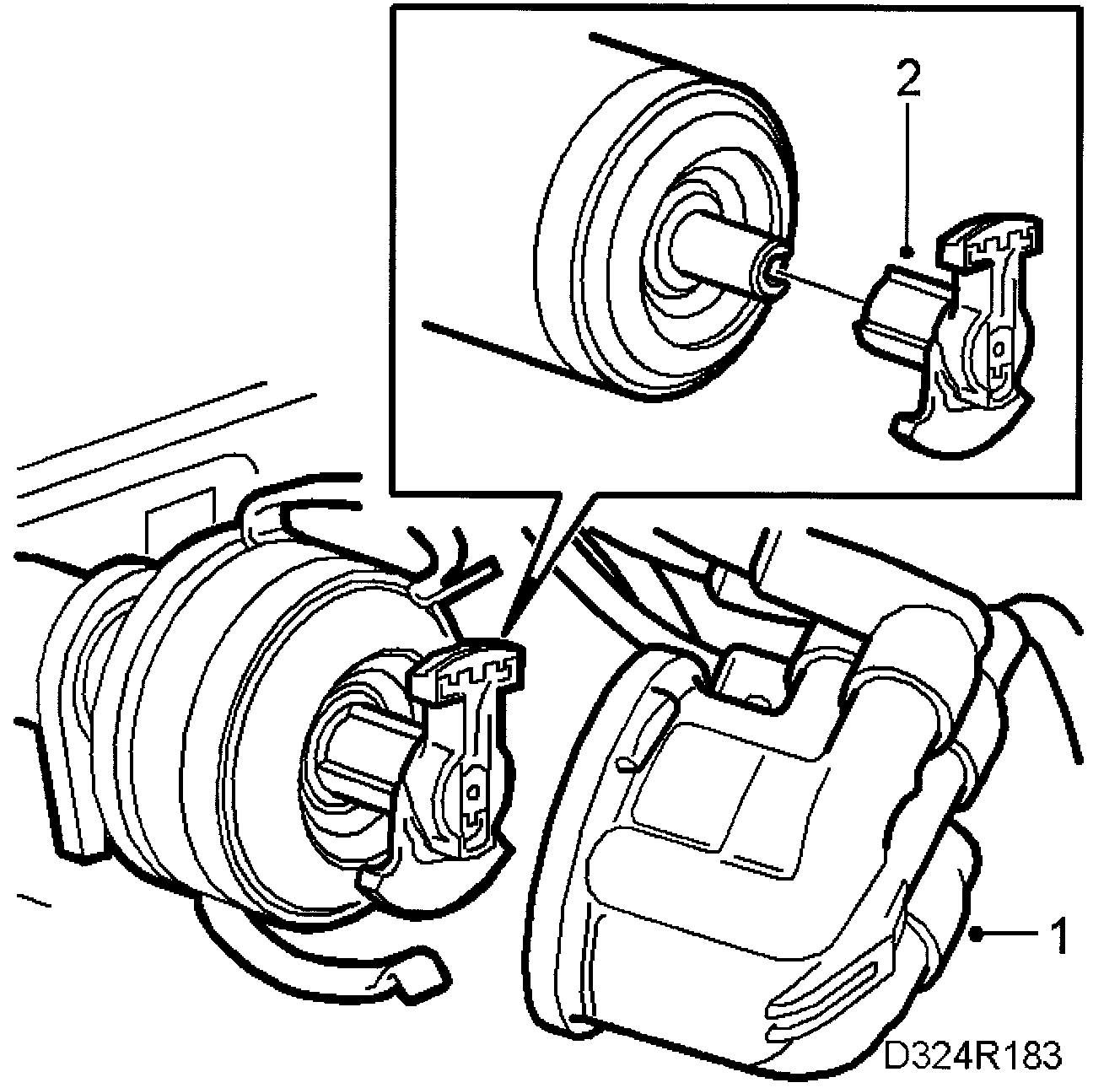

To remove







1 Remove the distributor cap.
2 Remove the rotor by breaking it with a pair of slip joint pliers.


IMPORTANT
Make sure no parts from the rotor get into the distributor.

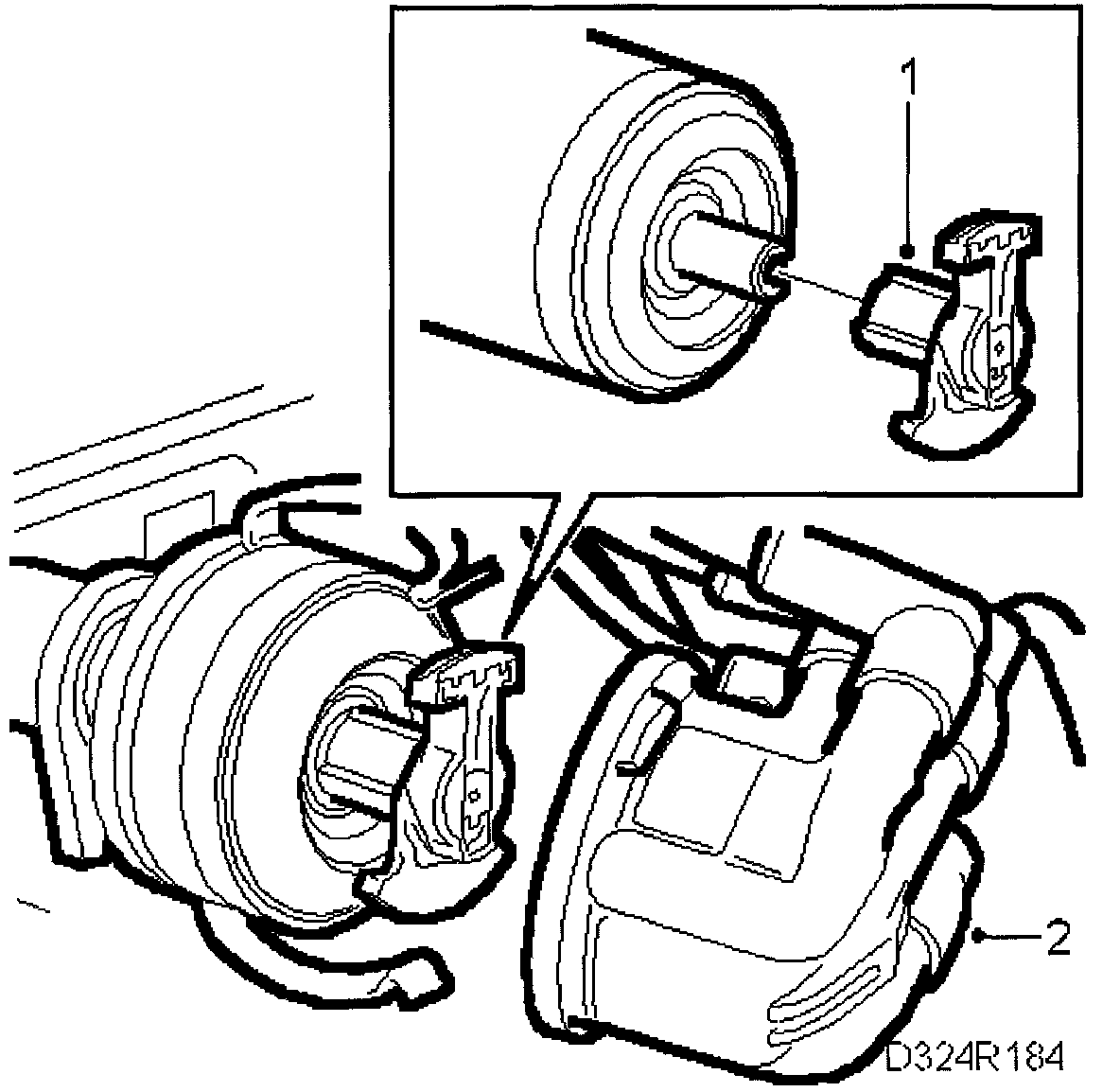

To fit







1 Fit a new rotor, apply Loctite 638 part no. (16) 49 04 090, make sure that the rotor locks firmly to the distributor axle.
2 Fit the distributor cap.
