Ignition Coil

To remove
1 Remove the battery, note possible radio codes.

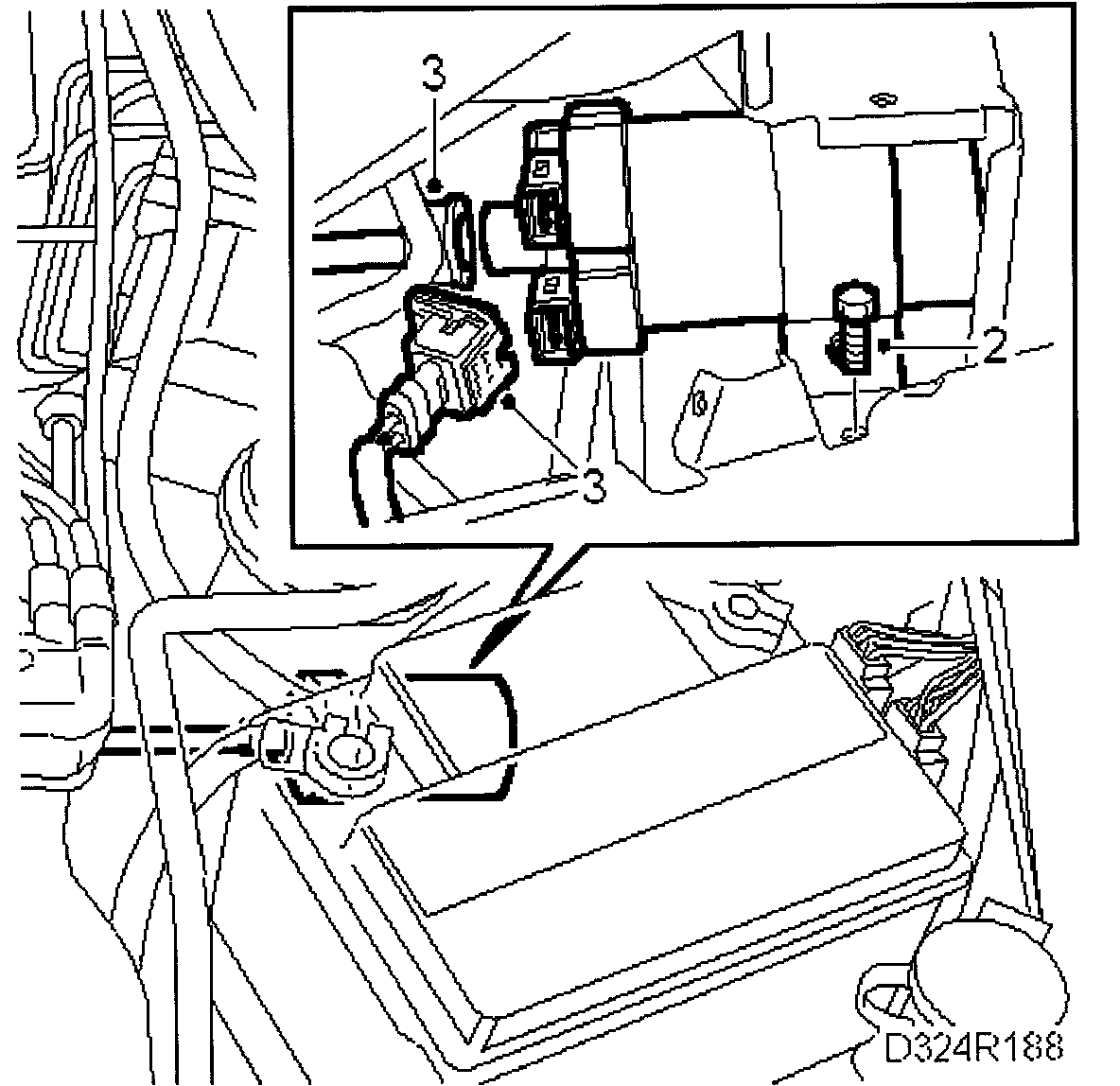

2 Remove the ignition lead that goes to the ignition coil.
3 Remove the screw that holds the ignition coil in place.

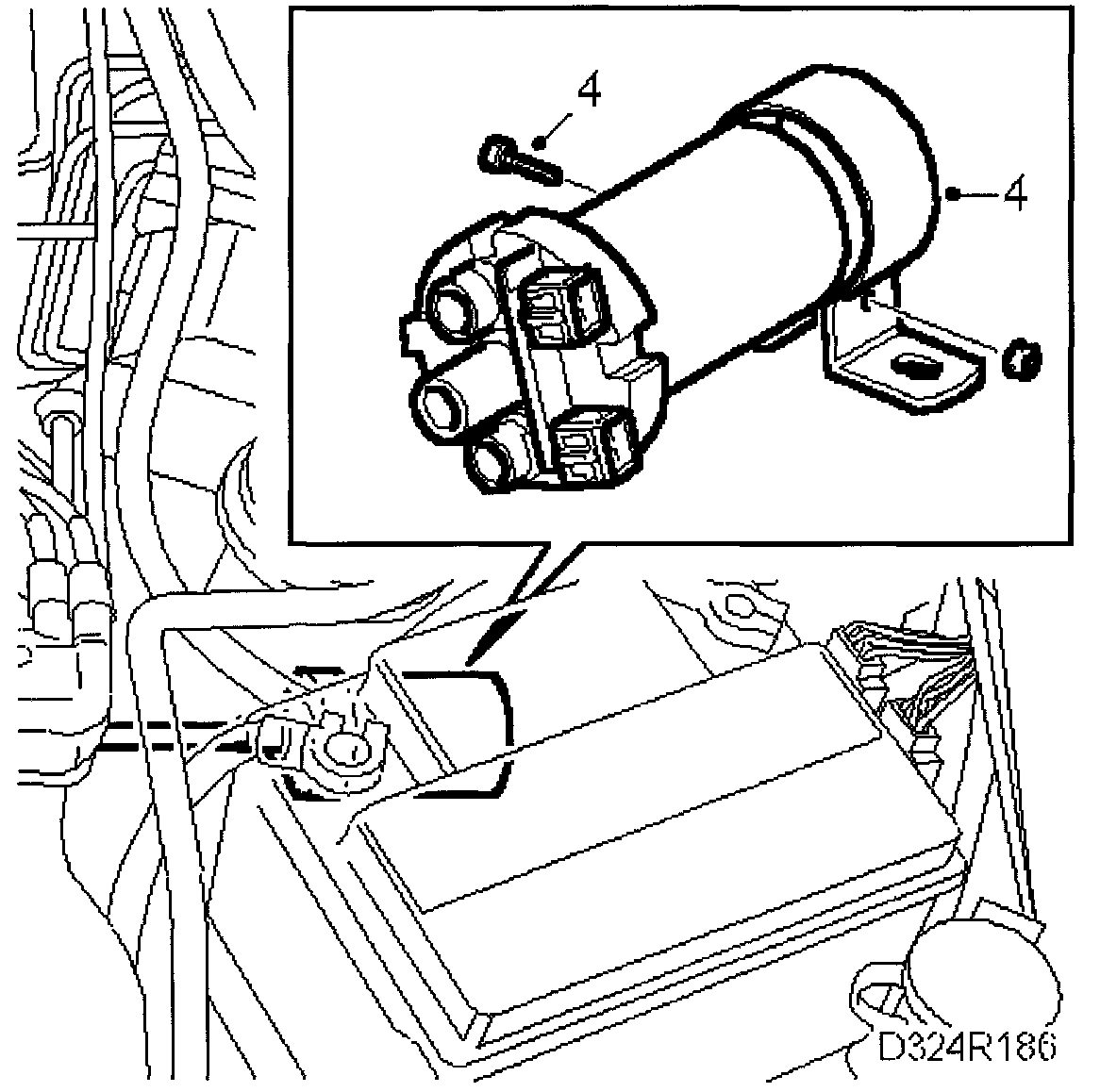

4 Remove the ignition coil from the bracket.

To fit

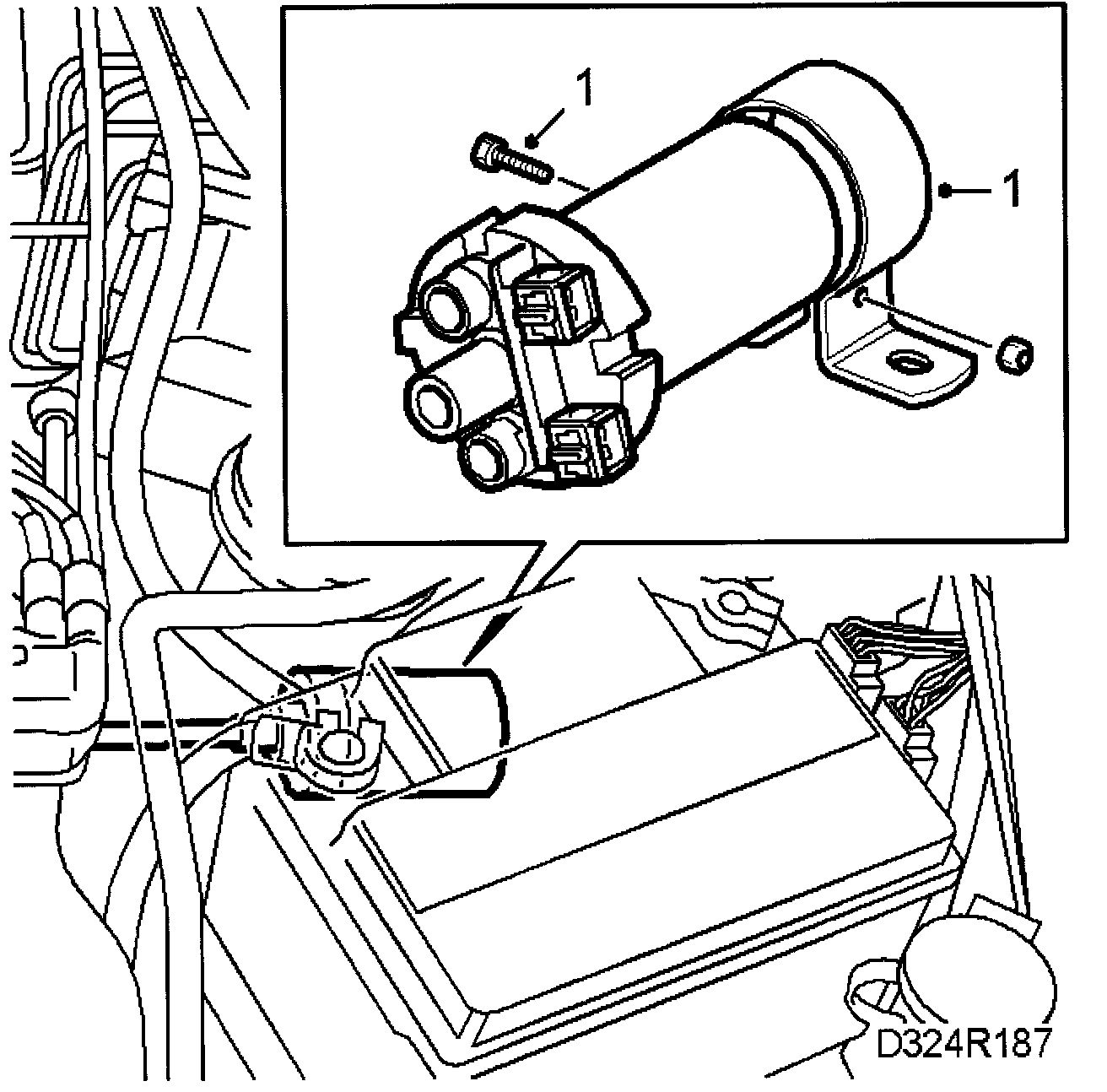

1 Fit the ignition coil to the bracket.







2 Attach the ignition coil with the screw.
3 Fit the ignition cable to the ignition coil.
4 Fit the battery.


NOTE: Set the clock and punch in possible radio codes.
