EVAP Canister Purge Valve

Dismantling

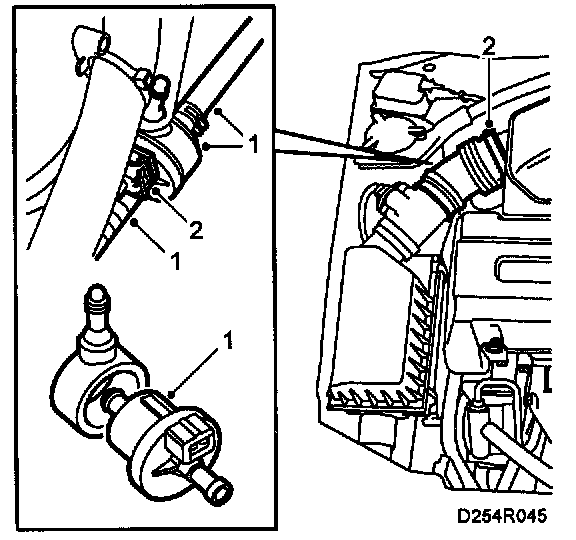

1 Detach the intake hose and unplug the valve's connector.


IMPORTANT
Note the position of the valve.


Detach the hoses from the valve and remove the valve.

To fit

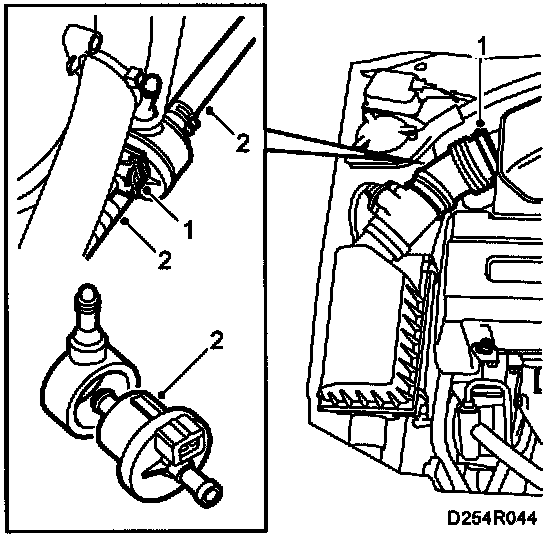

1 Fit the valve and fit the hoses. Remember to fit the valve the right way round.
2 Plug in the valves connector and fit the intake hose.
