Messages

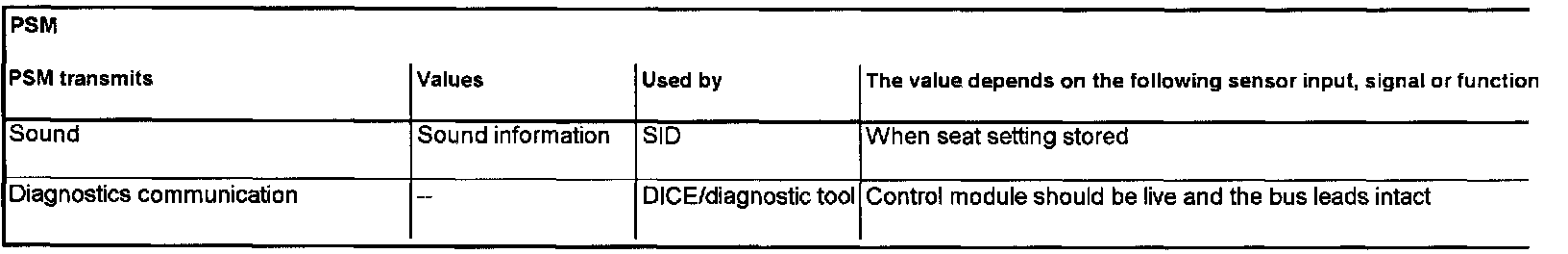

Below is a summary of the messages which are sent out by all the car's systems that are connected to a bus. It also shows which systems use the transmitted information. The purpose of the summary is to help you gain an understanding of the cars functional relationships, which is a fundamental prerequisite for rapid fault diagnosis.

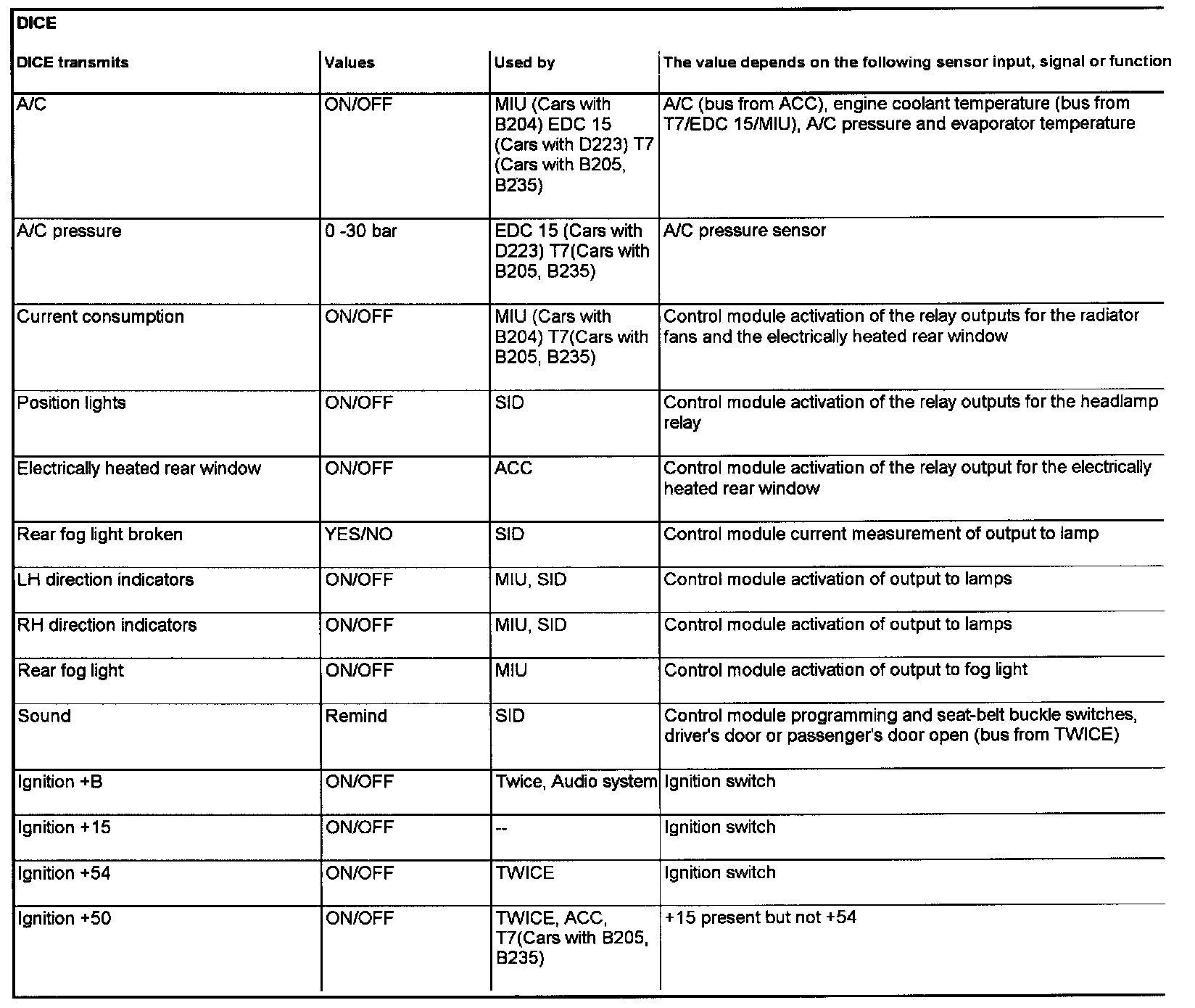

DICE:

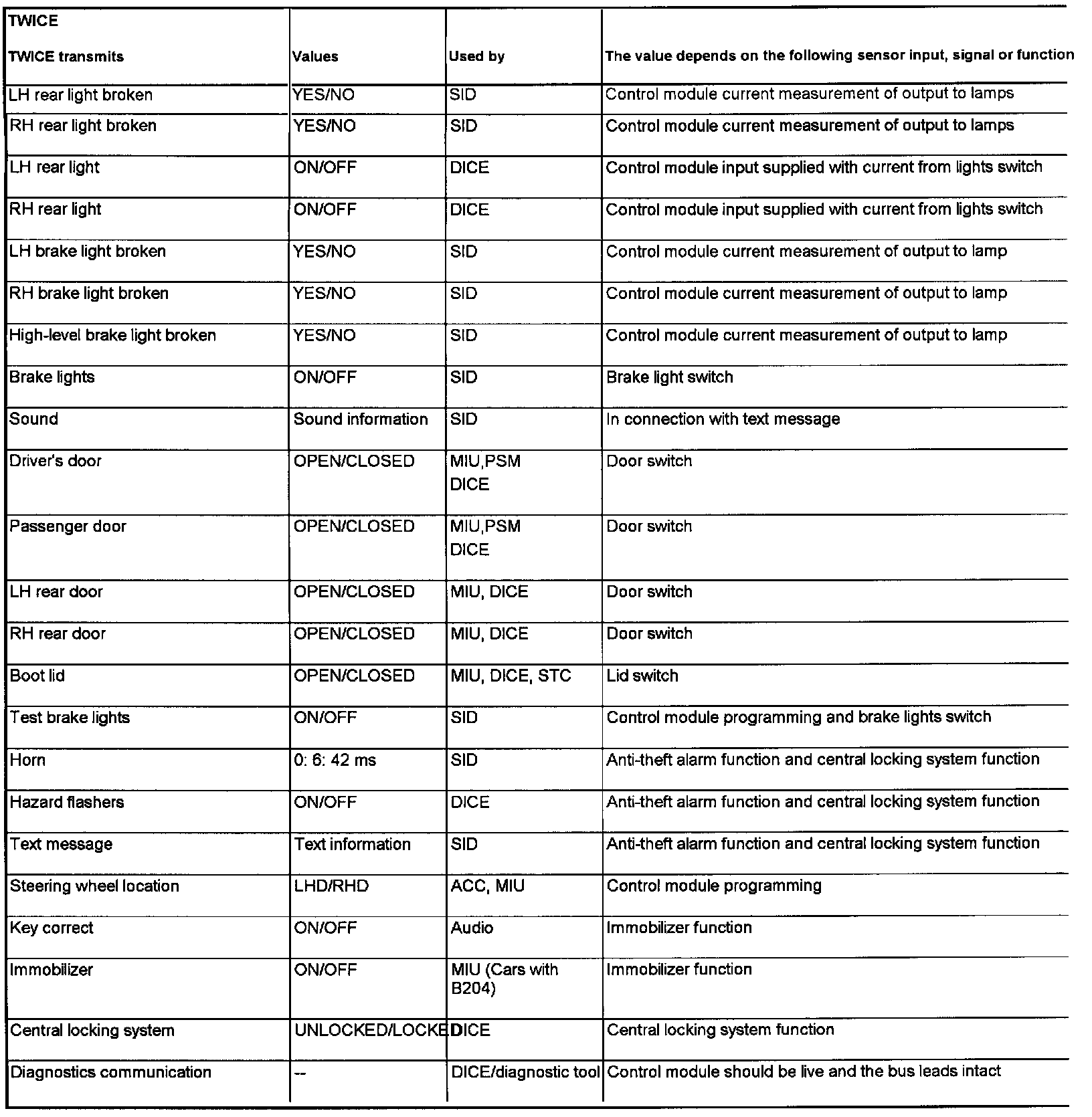

TWICE:

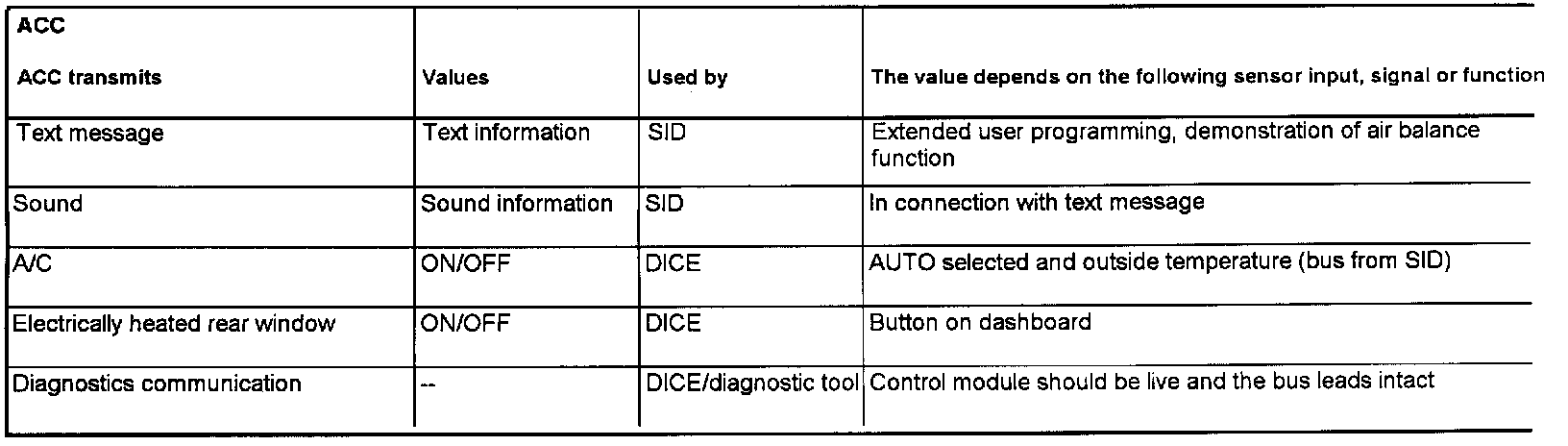

ACC:

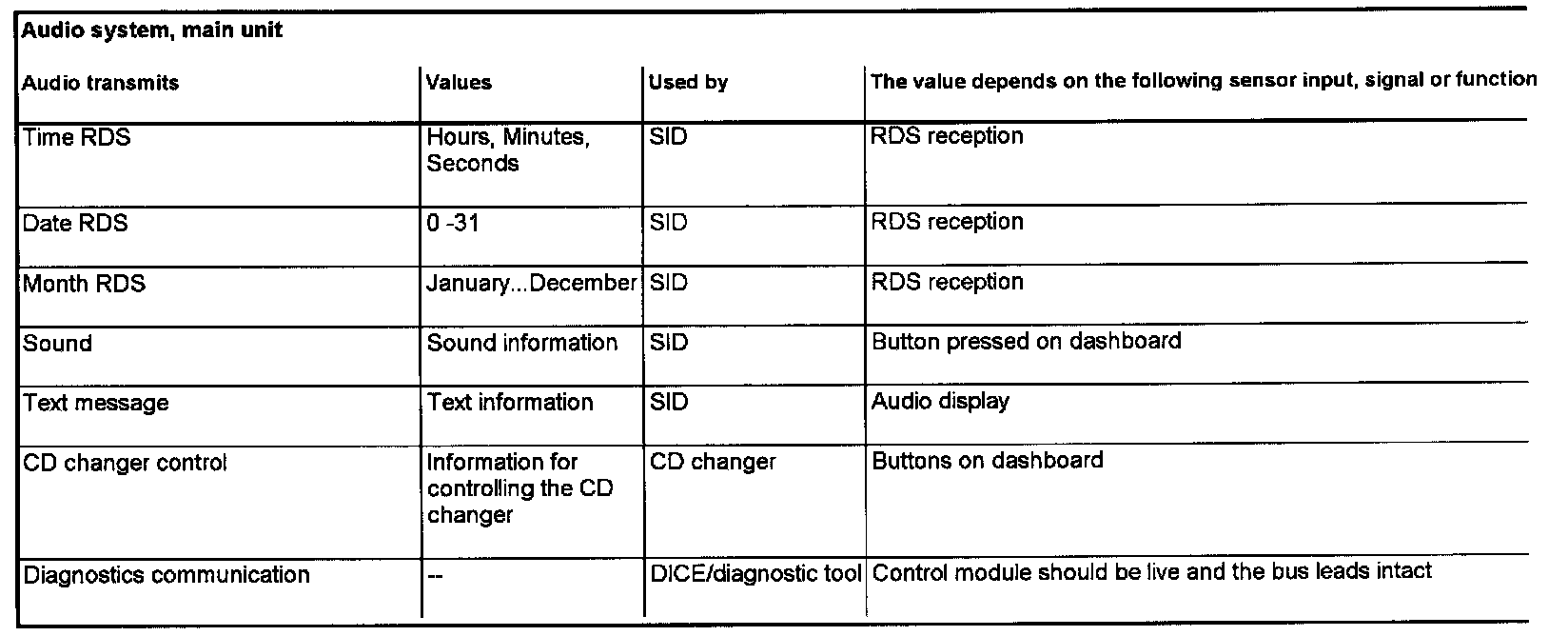

Audio System, Main Unit:

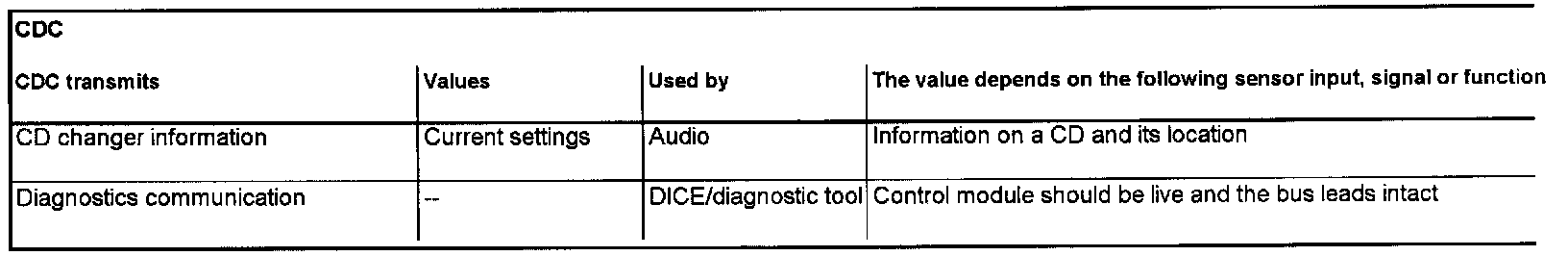

CDC:

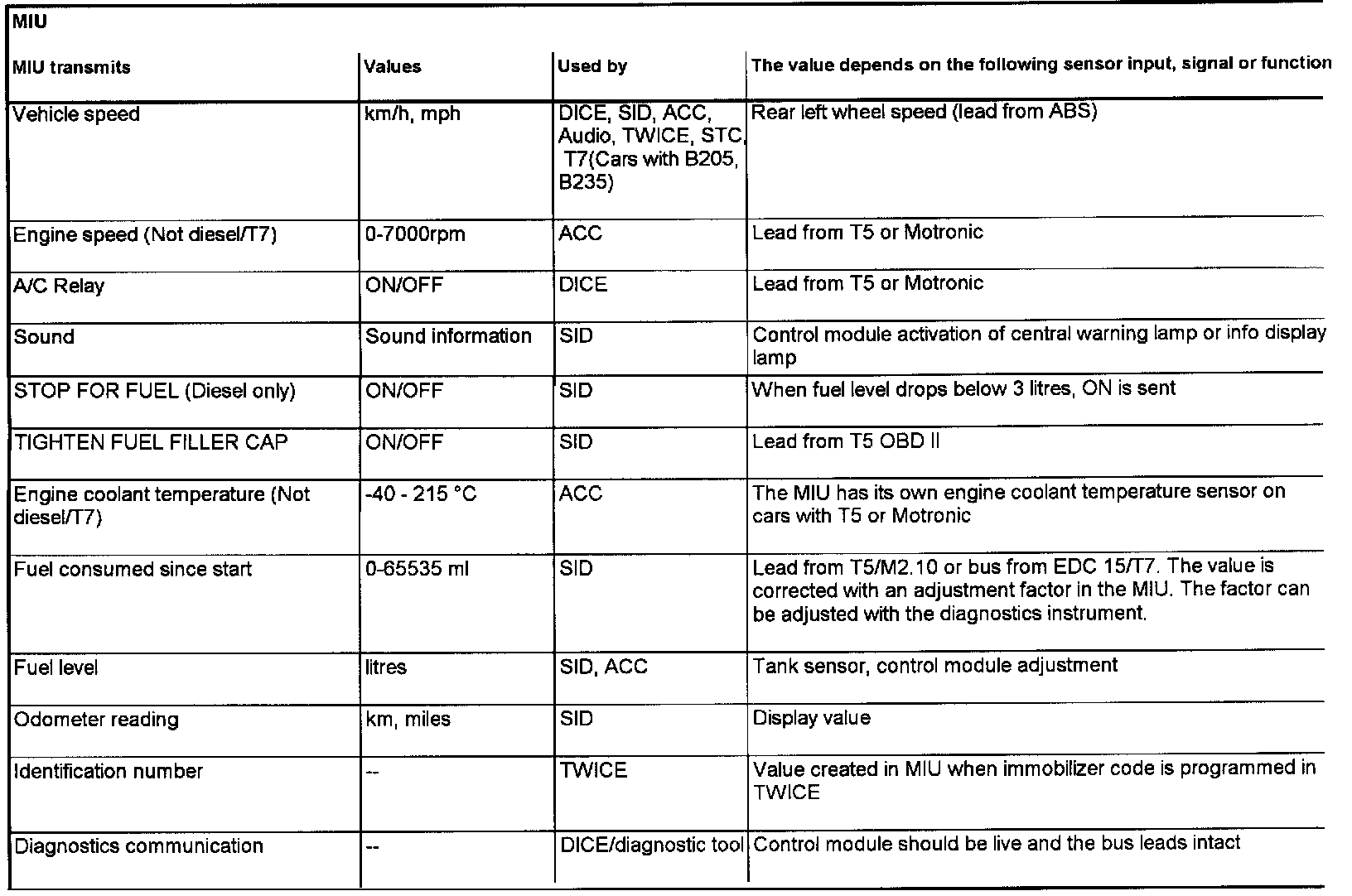

MIU:

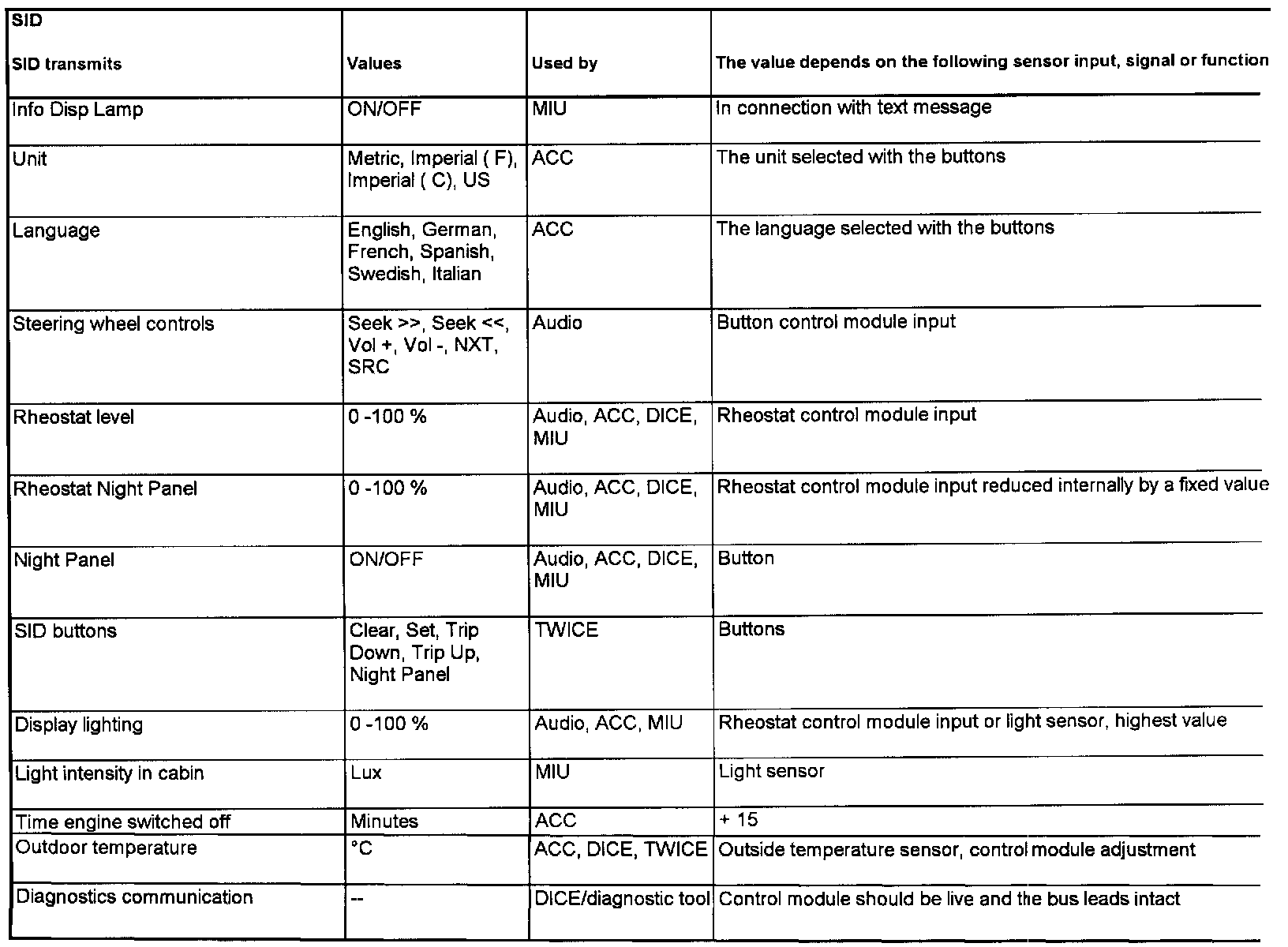

SID:

STC:

PSM:

EDC 15:

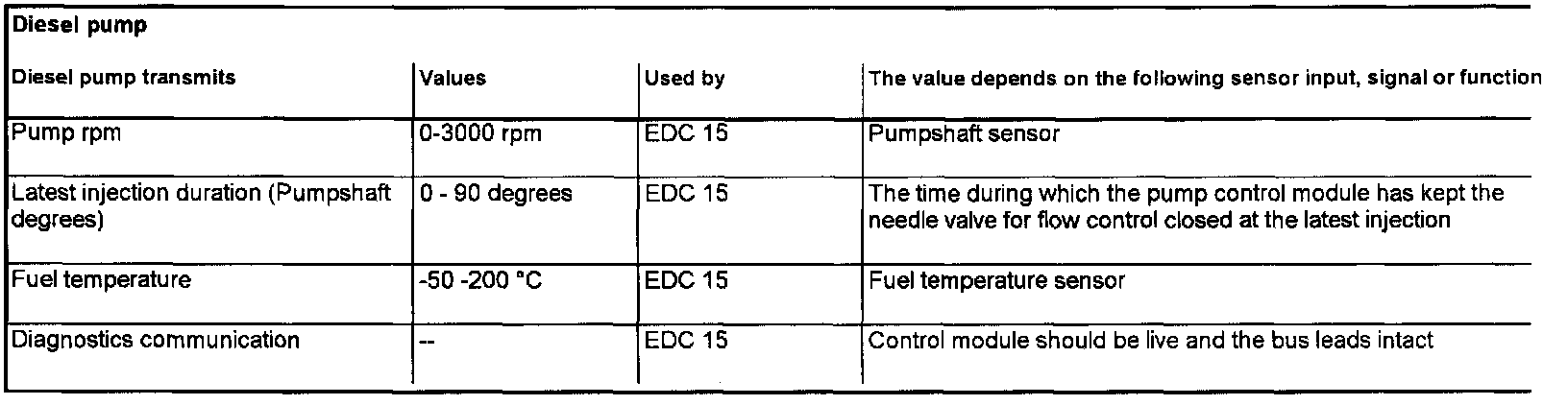

Diesel Pump:

Trionic T7:
