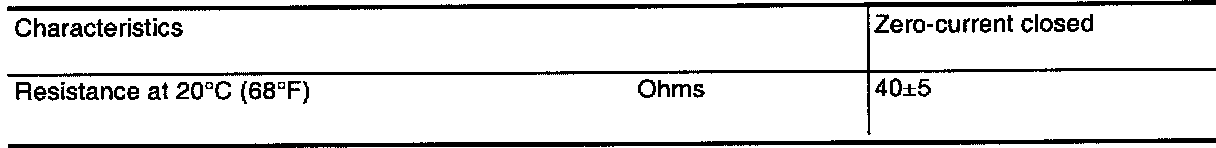

Control Valve, Bypass (605)
Control Valve, Bypass (605)
When the solenoid valve is unenergized, the bypass valve control line is connected after the throttle.
