Ground

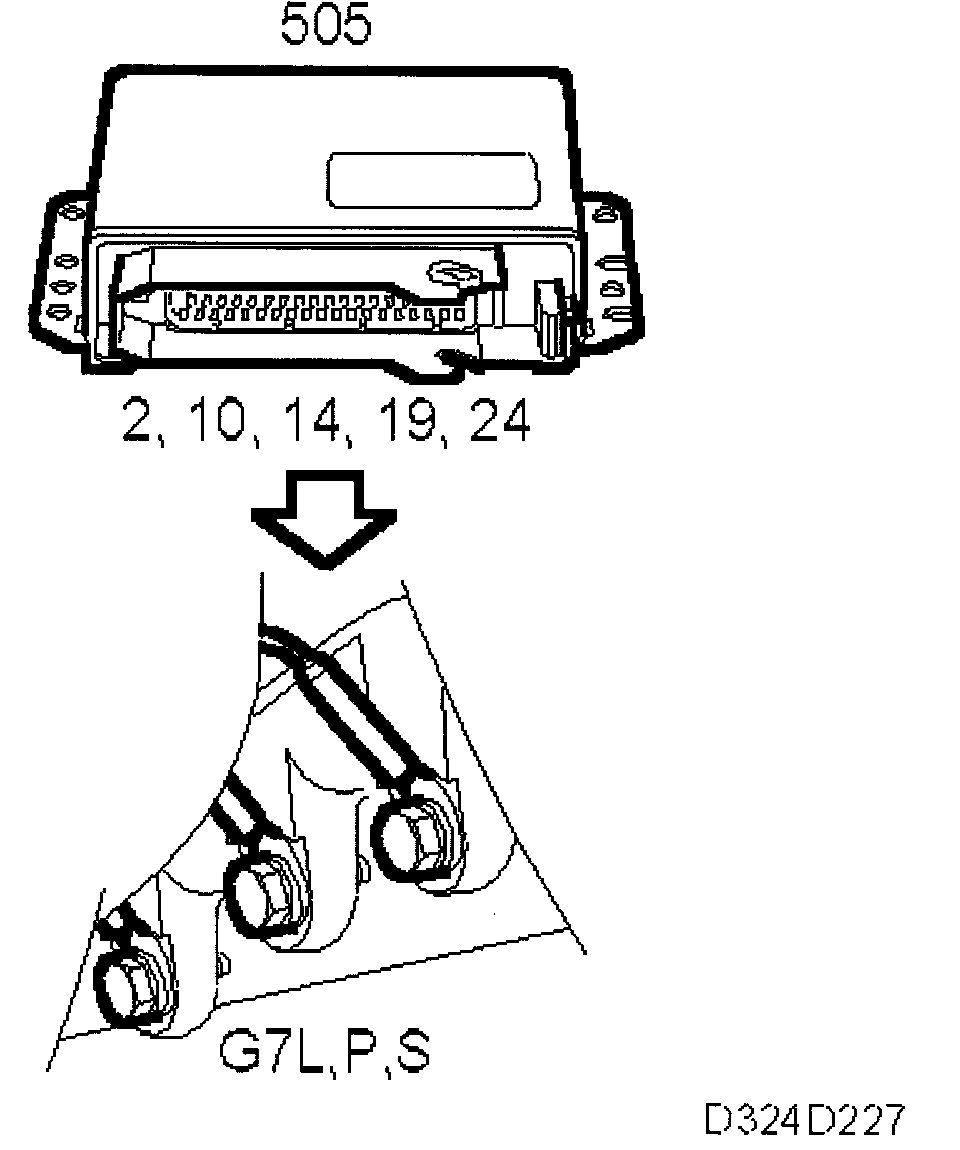

Power ground, G7P







The control module is connected to the power ground via pins 2, 14 and 24. The control module's main ground is connected on pin 14.

Reference ground Lambda, G7L
The control module receives reference ground for closed loop via pin 10.

Signal ground, G7S







Control module pin 19 is connected to signal ground G7S. The camshaft and crankshaft position sensor as well as the ground screen to the oxygen sensor signal leads are also connected to the signal ground.

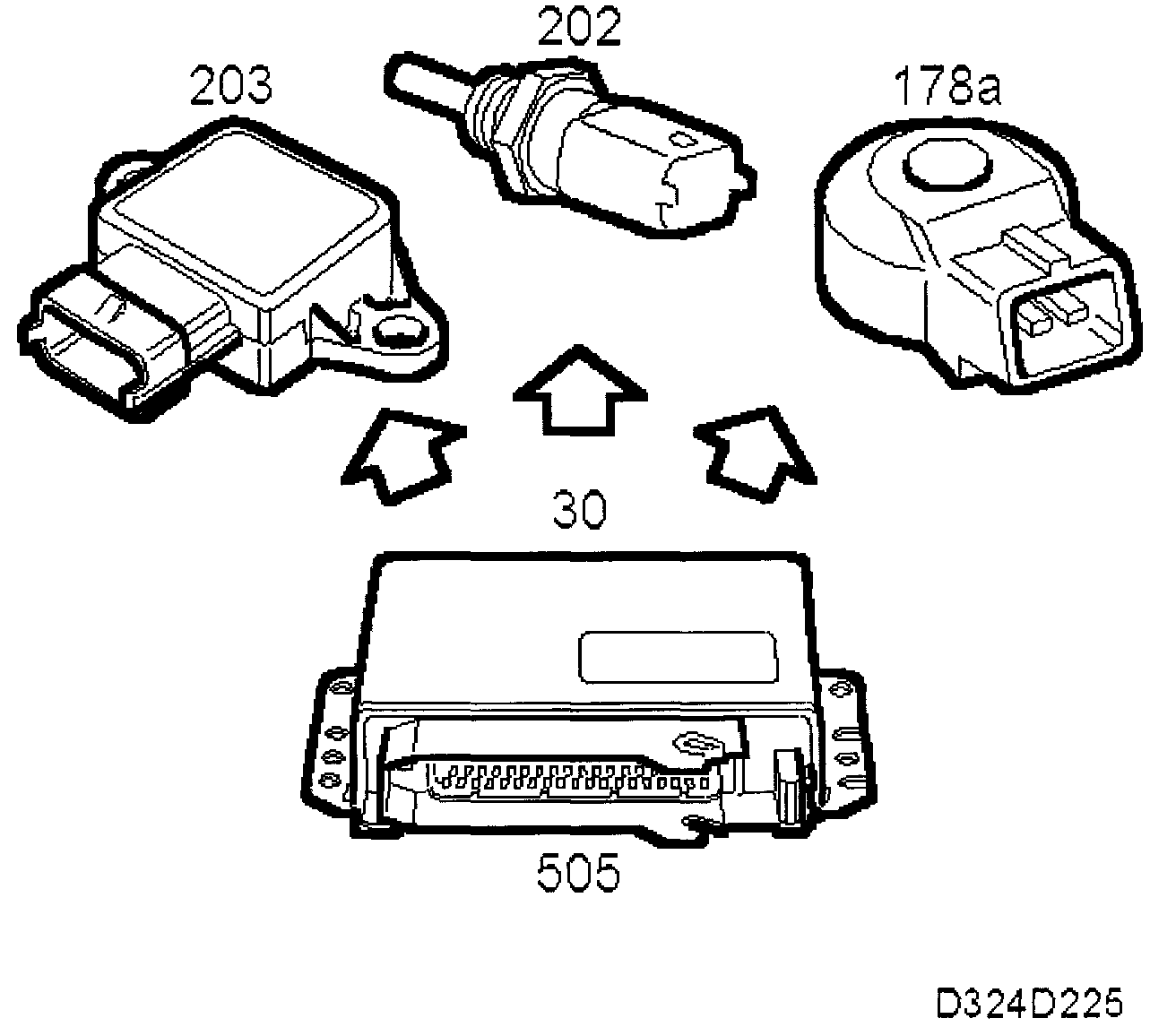

Sensor ground

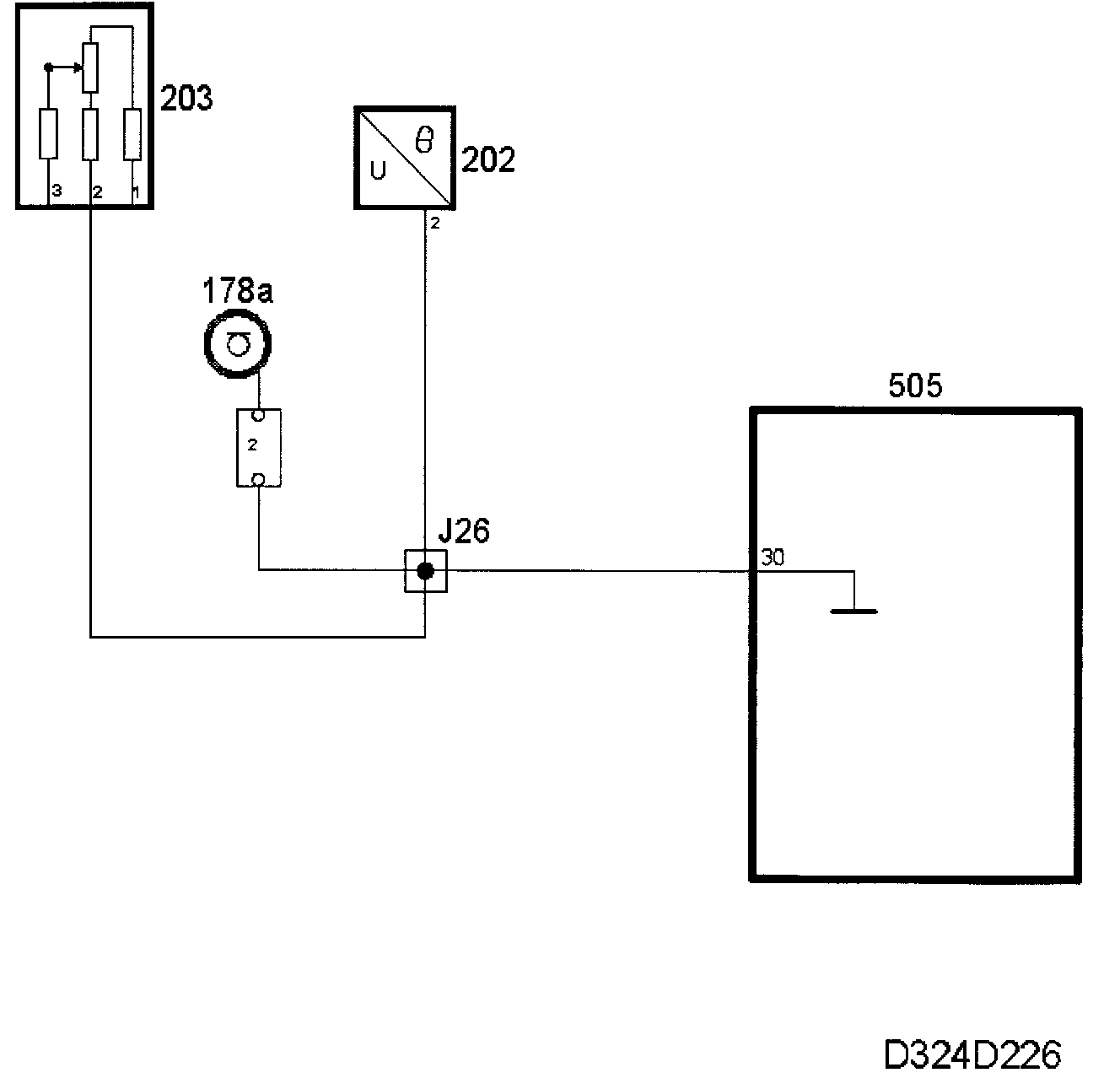

The control module grounds pin 30, which constitutes the grounding point for the sensors:
- throttle position sensor
- knock Sensor
- engine coolant temperature sensor

Check of grounding points
Potential difference between the main ground on pin 14 and the sensor ground on pin 30 should be less then approx. 0.1 Volt.
Checking of the control module's main ground can be done using a voltmeter by measuring the voltage cross pin 14 and the battery's negative terminal. The voltage should be less then 0.1 volt.
The checking of other grounding points is done in the same way, but the voltage should be checked between pin 14 and pins 2, 24, 10 and 19 respectively. Even here the voltage should be less then 0.1 volt.
