Low Fuel Level

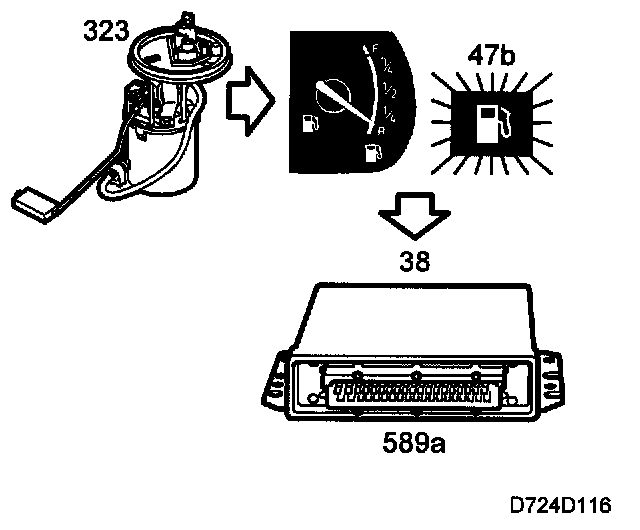

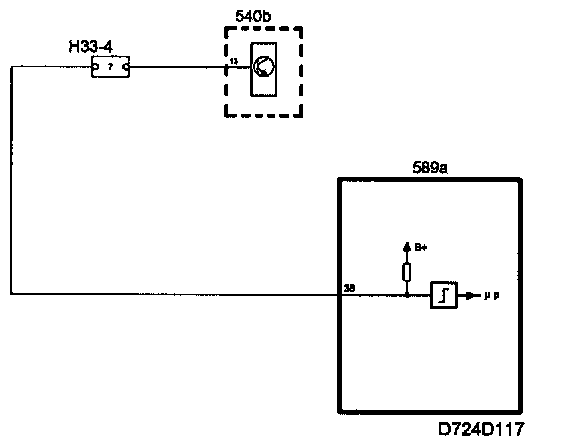

The fuel level warning lamp in the main instrument unit will go on when the fuel remaining in the tank drops below 10 litres. The main instrument unit will ground Trionic control module pin 38 at the same time.

This function is used only for OBD II diagnostics.

Diagnosis
- There is no diagnosis for the electric circuit.
