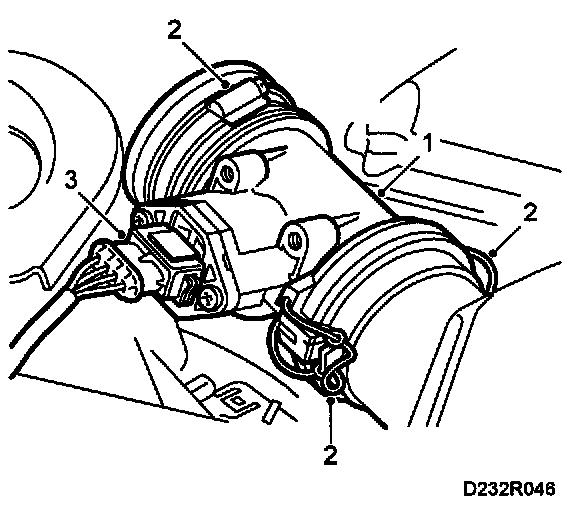

Mass Air Flow Sensor, Normally Aspirated Engine

To remove







1 Unplug the connector.
2 Undo the hose clips on the connecting pipe.
3 Remove the mass air flow sensor.

To fit







1 Fit the mass air flow sensor in place.
2 Fit the hose clips on the connecting pipe.
3 Plug in the connector.
